MECHANISM DECK MODIFICATION
e EXPLODED VIEWS
NOTE:
© -XX and -X mean standardized parts, so they
may have some difference from the original
one
© Items marked “ x" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
© The mechanical parts with no reference
number in the exploded views are not
© Color Indication of Appearance Parts
Example
KNOB, BALANCE (WHITE) .. . (RED)
t it
PartsColor Cabinet'sColor ©

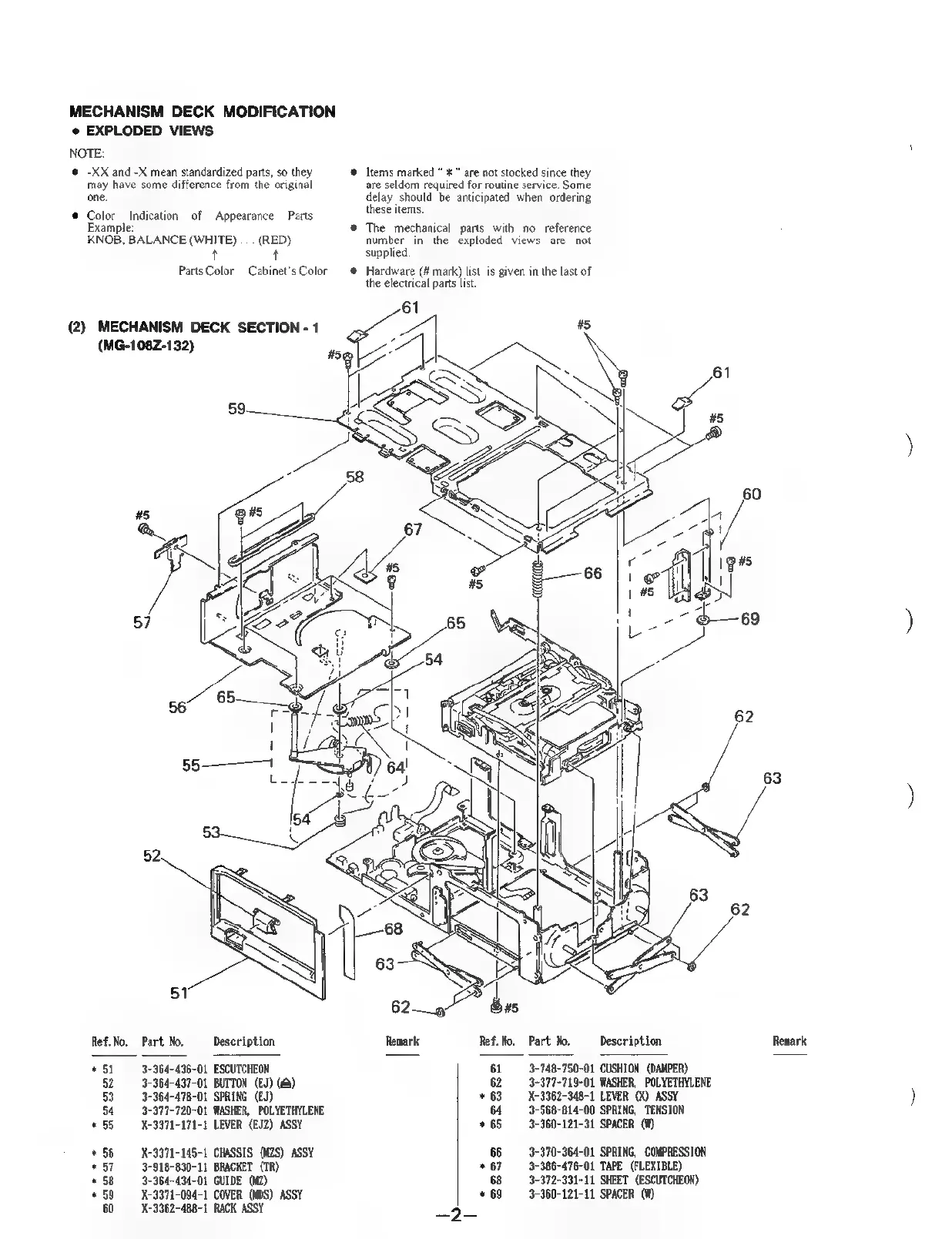

(2) MECHANISM DECK SECTION - 1
(MG-1082-132)
supplied
Hardware (# mark) list is given in the last of
the electrical parts list.
Remark
Ref.No. Part No, Description Remark Ref.No. Part No. Description
+51 3-364-436-01 ESCUTCHEON 61 3-748-750-01 CUSHION (DAMPER)
52 3-364-437-01 BUTTON (EJ) (&) 62 3-377-719-01 WASHER, POLYETHYLENE
53 3-364-478-01 SPRING (EJ) + 63 X-3362-348-1 LEVER (X) ASSY
54 3-377-720-01 WASHER, POLYETHYLENE 64 3-568-814-00 SPRING, TENSION
* 55 X-3371-171-1 LEVER (EJZ) ASSY +65 3-360-121-31 SPACER (W)
+ 56 X-3371-145-1 CHASSIS (MZS) ASSY 66 3-370-364-01 SPRING, COMPRESSION
*57 3-918-830-11 BRACKET (TR) +67 3-386-476-01 TAPE (FLEXIBLE)
* 58 3-364-434-01 GUIDE (M2) 68 3-372-331-11 SHEET (ESCUTCHEON)
+59 X-3371-094-1 COVER (MDS) ASSY + 69 3-360-121-11 SPACER (#)
60 X-3362-488-1 RACK ASSY
