Sony CDX-51 - Page 39

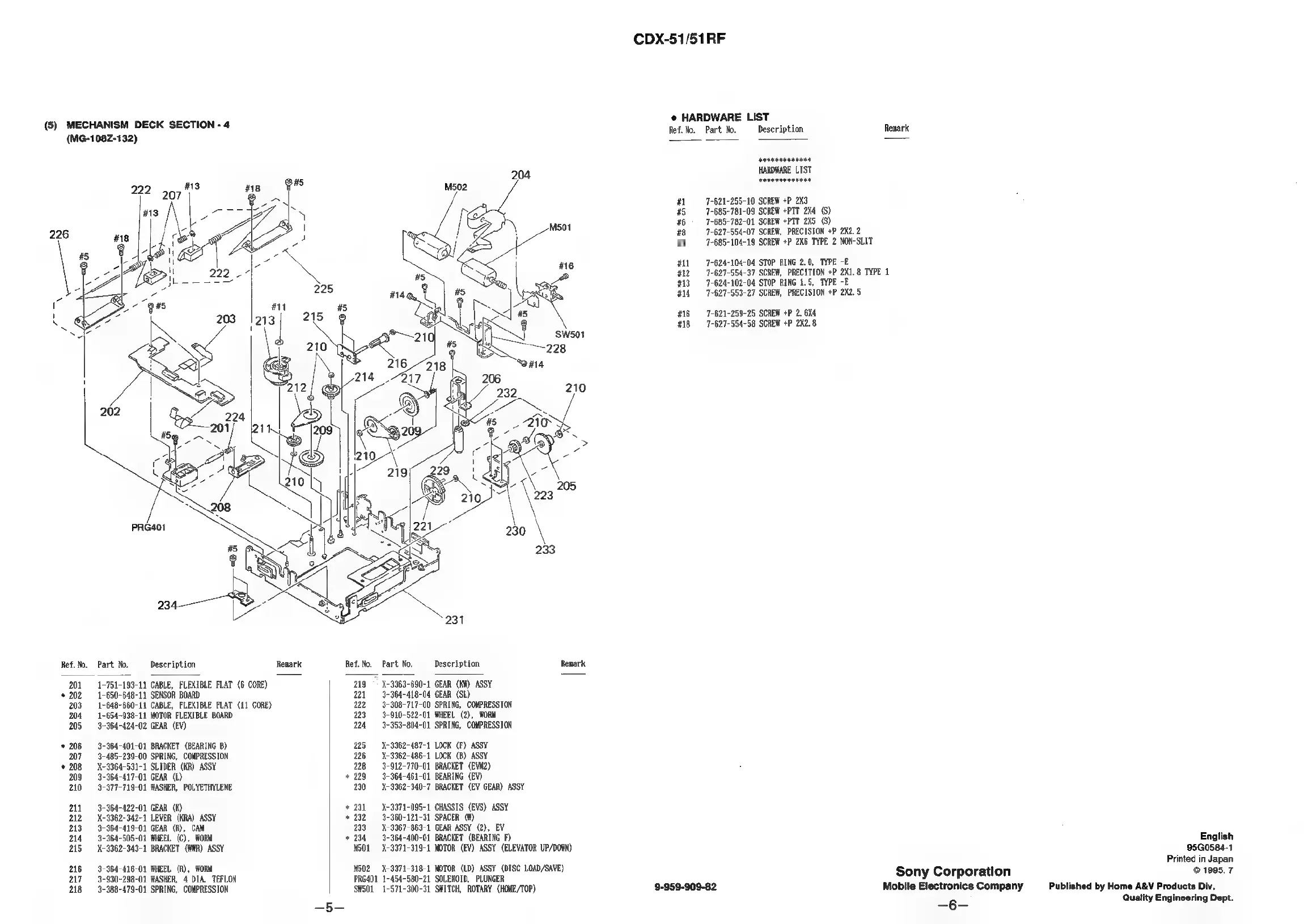

(5) MECHANISM DECK SECTION - 4
(MG-108Z-132)
226
Ref. No.
+
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
#13
222 207
PRG401
234
Part No. Description
1-751-193-11 CABLE, FLEXIBLE FLAT (6 CORE)
1-650-648-11 SENSOR BOARD
1-648-660-11 CABLE, FLEXIBLE FLAT (11 CORE)
1-654-938-11 MOTOR FLEXIBLE BOARD
3-364-424-02 GEAR (EV)
3-364-401-01 BRACKET (BEARING B)
3-485-239-00 SPRING, COMPRESSION
X-3364-531-1 SLIDER (KR) ASSY
3-364-417-01 GEAR (L)
3-377-719-01 WASHER, POLYETHYLENE
3-364-422-01 GEAR (K)
X-3362-342-1 LEVER (KRA) ASSY
3-364-419-01 GEAR (R), CAM
3-364-505-01 WHEEL (C), WORM
X-3362-343-1 BRACKET (WWR) ASSY
3-364-416-01 WHEEL (R), WORM
3-930-298-01 WASHER, 4 DIA. TEFLON
3-388-479-01 SPRING, COMPRESSION
CDX-51/51RF
e@ HARDWARE LIST
Sony Corporation
Ref.No. Part No. Description Reark
Prrrertrerery
HARDWARE LIST
eevrverererty
#1 7-621-255-10 SCREW +P 2X3
#5 7-685-781-09 SCREW +PIT 2X4 (S)
#6 © 7-685-782-01 SCREW +PTT 2X5 (S)
#8 7-627-554-07 SCREW, PRECISION +P 2X2. 2
#9 7-685-104-19 SCREW +P 2X6 TYPE 2 NON-SLIT
#11 7-624-104-04 STOP RING 2.0, TYPE -E
#12 7-627-554-37 SCREW, PRECITION +P 2X1. 8 TYPE 1
#13 7-624-102-04 STOP RING 1.5, TYPE -E
#14 7-627-553-27 SCREW, PRECISION +P 2X2. 5
#16 7-621-259-25 SCREW +P 2. 6X4
#18 -7-627-554-58 SCREW +P 2X2. 8
21
g
216218
214 217
)
hee
1 J 219
- \
230
233
231
Remark Ref.No. Part No. Description Remark
| 219 — X-3369-690-1 GEAR (KW) ASSY
| 221 3-364-418-04 GEAR (SL)
| 222 3-308-717-00 SPRING, COMPRESSION
| 223. 3-910-522-01 WHEEL (2), WORM
224 3-353-804-01 SPRING, COMPRESSION
| 225 -X-3362-487-1 LOCK (F) ASSY
| 226 X-3362-486-1 LOCK (B) ASSY
228 3-912-770-01 BRACKET (EVM2)
| * 229 3-364-461-01 BEARING (EV)
230 X-3362-340-7 BRACKET (EV GEAR) ASSY
+ 231 X-3371-095-1 CHASSIS (EVS) ASSY
* 232 3-360-121-31 SPACER (#)
233 X-3367-863-1 GEAR ASSY (2), EV
+ 234 3-364-400-01 BRACKET (BEARING F)
M501 X-3371-319-1 MOTOR (EV) ASSY (ELEVATOR UP/DOWN)
M502 —X-9371-318-1 MOTOR (LD) ASSY (DISC LOAD/SAVE)
PRG401 1-454-580-21 SOLENOID, PLUNGER
SW501 1-571-300-31 SWITCH, ROTARY (HOME/TOP) 9-959-909-82
Mobile Electronics Company
—6—
English
95G0584-1
Printed in Japan
© 1995.7
Published by Home A&V Products Div.
Quality Engineering Dept.
