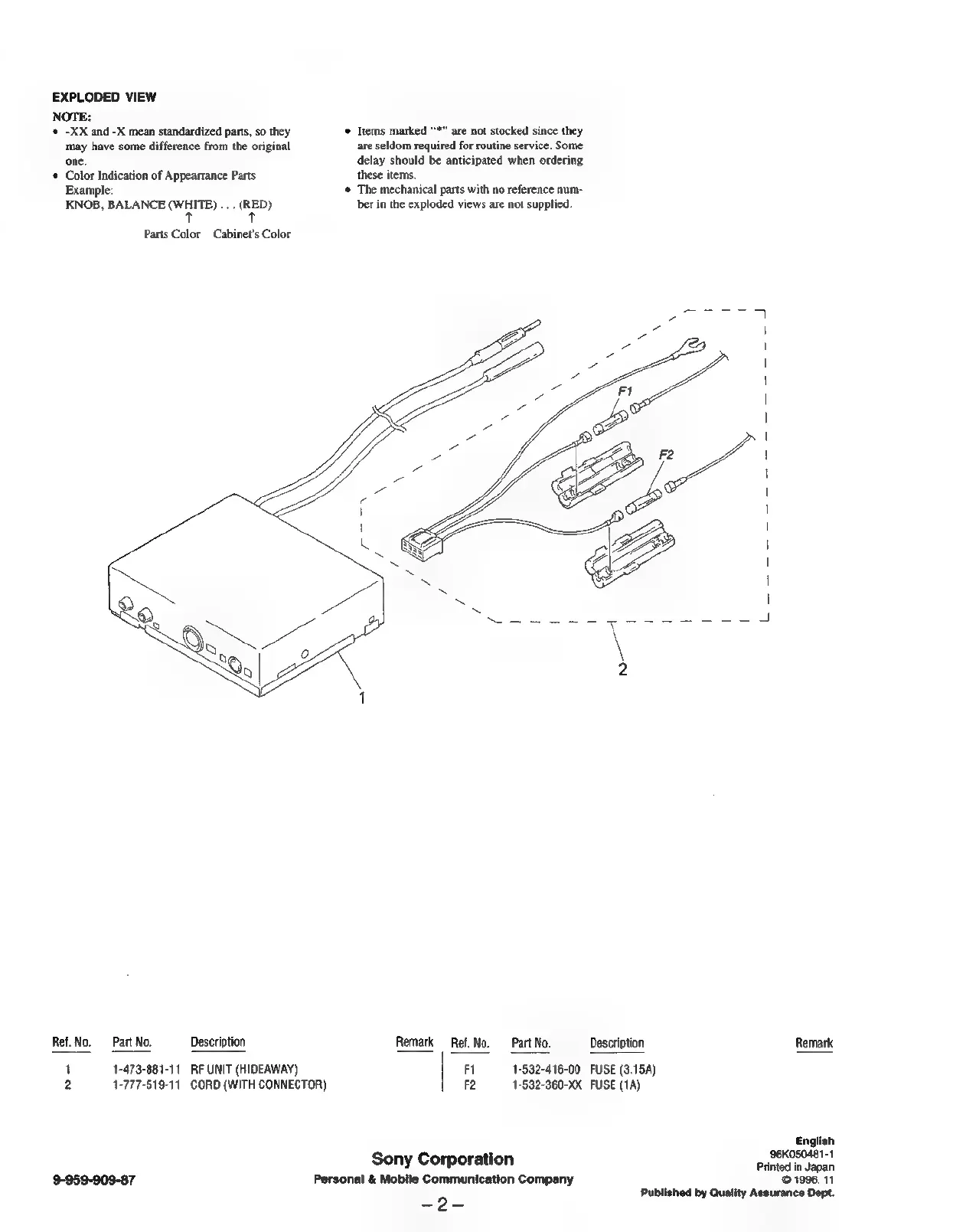

EXPLODED VIEW
NOTE:
* -XX and -X mean standardized parts, so they © Items marked “*” are not stocked since they
may have some difference from the original are seldom required for routine service. Some
one. delay should be anticipated when ordering
* Color Indication of Appearrance Parts these items.
Example: * The mechanical parts with no reference num-
KNOB, BALANCE (WHITE) .. . (RED) ber in the exploded views are not supplied
T tT
Parts Color Cabinet's Color
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
1 1-473-881-11 RF UNIT (HIDEAWAY) AL 1-532-416-00 FUSE (3.15A)
2 1-777-519-11 CORD (WITH CONNECTOR) F2 1-532-360-XX FUSE (1A)
