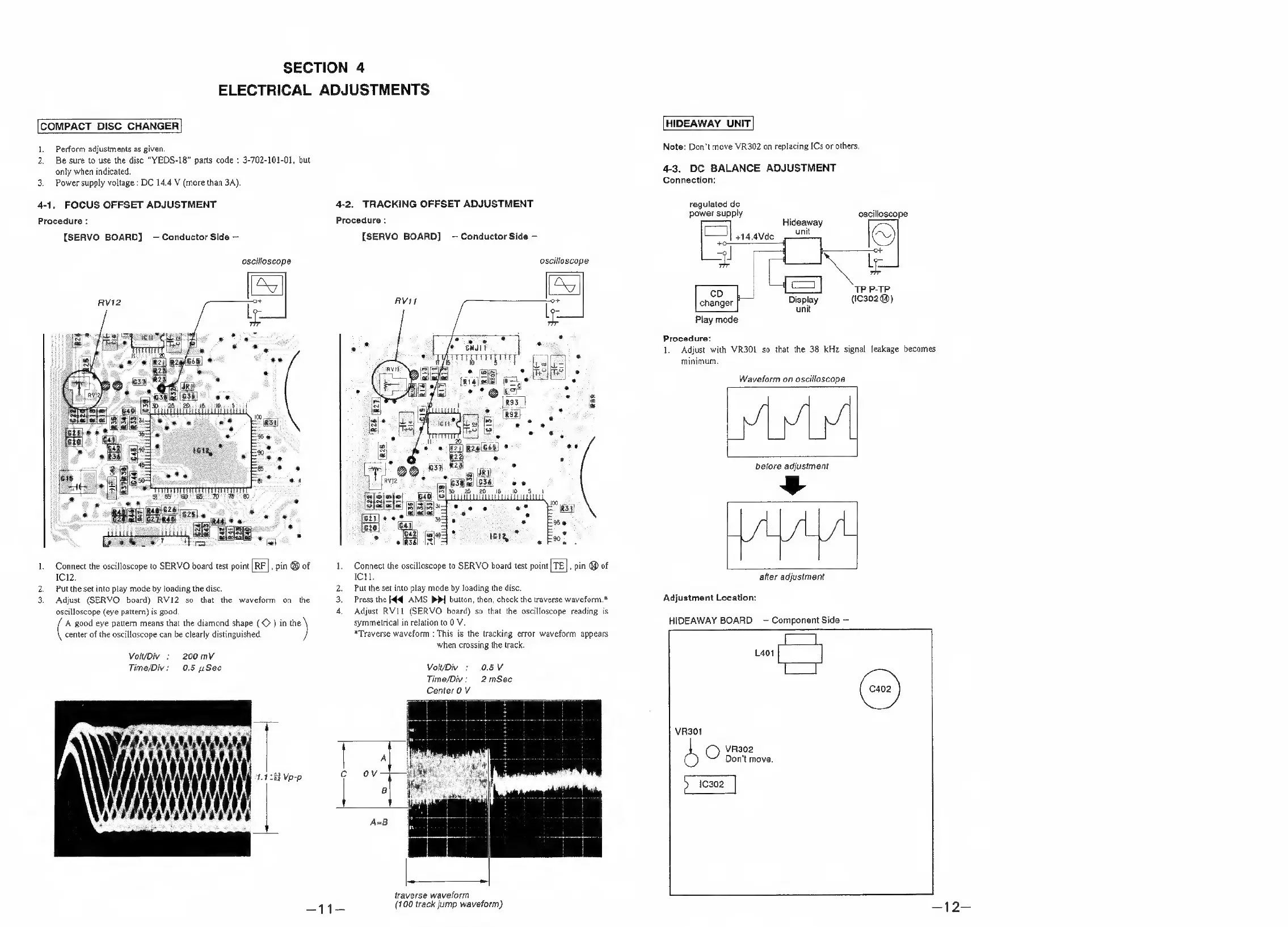

SECTION 4
ELECTRICAL ADJUSTMENTS
COMPACT DISC CHANGER
1. Perform adjustments as given.
2. Be sure to use the disc “YEDS-18” parts code : 3-702-101-01, but
only when indicated.
3. Power supply voltage : DC 14.4 V (more than 3A).
4-1, FOCUS OFFSET ADJUSTMENT 4-2,
Procedure :
Procedure :
{SERVO BOARD)
~ Conductor Side —
oscilloscope
AMBRE om ot es
Rice
Ss
fet
1. Connect the oscilloscope to SERVO board test point |RF|, pin @ of 1
IC12.
2. Put the set into play mode by loading the disc. 2
3. Adjust (SERVO board) RVI2 so that the waveform on the
oscilloscope (eye pattem) is good
A good eye pattern means that the diamond shape (© ) in the
center of the oscilloscope can be clearly distinguished.
Ae
200 mV
0.5 uSec
Volt/Div :
Time/Div :
K}
Wain ‘
() () +
AN
\
vee
—11-
TRACKING OFFSET ADJUSTMENT
[SERVO BOARD] - Conductor Side —
oscilloscope
Connect the oscilloscope to SERVO board test point /TE|, pin @ of
Ici
Put the set into play mode by loading the disc.
Press the k¢@ AMS P| button, then, check the traverse waveform.*
Adjust RV11 (SERVO board) so that the oscilloscope reading is
symmetrical in relation to 0 V.
*Traverse waveform : This is the tracking error waveform appears
when crossing the track.
Volt/Div : 0.5V
Time/Div: 2mSec
CenterOV
traverse waveform
(100 track jump waveform)
HIDEAWAY UNIT
Note: Don't move VR302 on replacing ICs or others.
4-3. DC BALANCE ADJUSTMENT
Connection:
regulated de
power supply oscilloscope
Hideaway
unit
+14.4Vde
ee
GS)
cb TP P-TP
changer f Display (1C302@)
unit
Play mode
Procedure:
1. Adjust with VR301 so that the 38 kHz signal leakage becomes
minimum,
Waveform on oscilloscope
v
[a |
before adjustment
|
poe
after adjustment
Adjustment Location:
HIDEAWAY BOARD —- Component Side —
1401
VR301
VR302
Don't move.
