CDX-5V661/5V661A/5V661D/5V661S

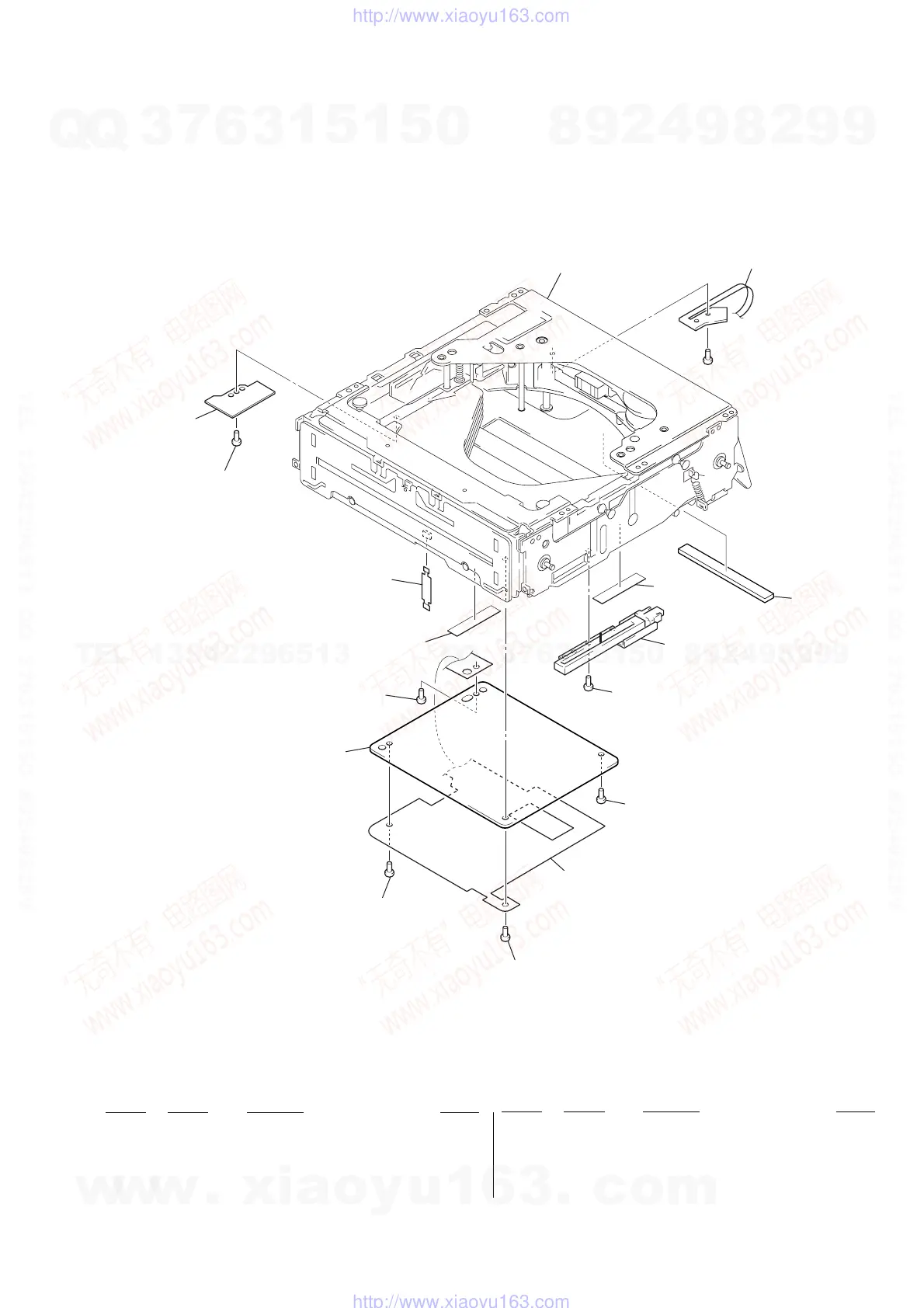

5-4. MECHANISM DECK SECTION-1
(MG-160-154)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-216-272-01 SCREW (M2), +
* 502 3-227-828-01 SHEET (MAIN)
* 503 A-3326-746-B MAIN BOARD, COMPLETE
504 3-226-451-01 CUSHION (UNWEAVED CLOTH)
505 1-680-583-11 ASSIST FLEXIBLE BOARD
506 A-3326-765-A POS BOARD, COMPLETE
507 1-680-584-11 ADDRESS DETECTION FLEXIBLE BOARD
508 3-233-603-01 CUSHION (FG)
RV1 1-227-318-11 RES, VAR, SLIDE 10K
(ELEVATOR HEIGHT SENSOR)
507
508
504
501
501
504
505
501
506
501
501
501
503
502
#3
RV1
