CDX-5V661/5V661A/5V661D/5V661S
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

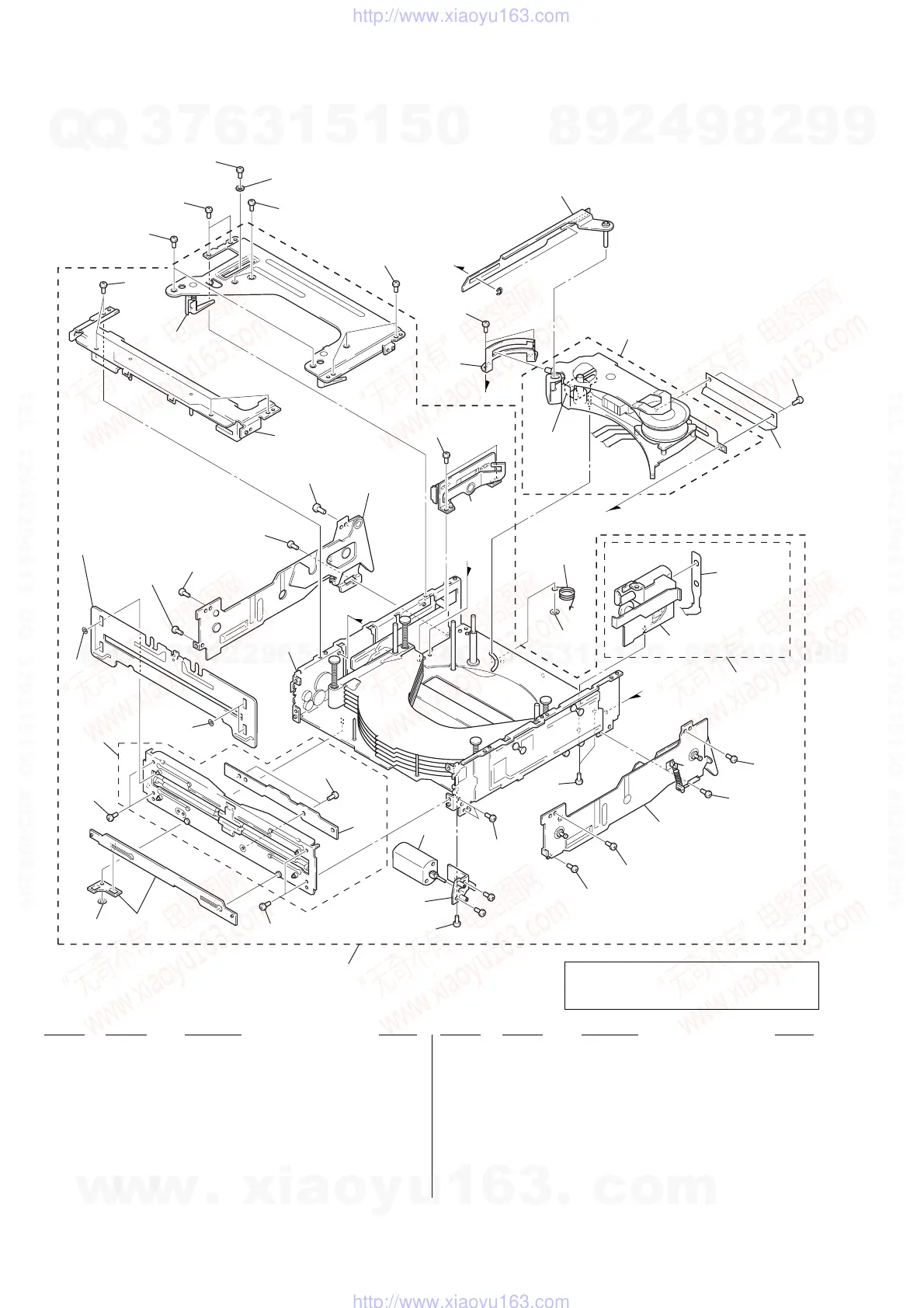

5-5. MECHANISM DECK SECTION-2
(MG-160-154)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 A-3315-226-A CHASSIS (TRANSPORT) ASSY
552 4-216-272-01 SCREW (M2), +
553 3-321-813-01 WASHER, COTTER POLYETHYLENE
554 A-3290-634-A MAIN ASSY, CHASSIS (F)
555 A-3340-088-A ASSIST BOARD, COMPLETE
556 3-233-664-01 WASHER (F)
557 3-973-497-01 SCREW (M1.7), 0-NO. +P 2
558 A-3290-640-A MAIN ASSY, BRACKET (DE)
559 1-680-585-11 MECH MOTOR FLEXIBLE BOARD
560 3-223-342-01 WASHER
* 561 X-3379-609-1 SLIDER (TOP) ASSY
* 562 3-223-453-01 GUIDE (CHUCK)
0 563 A-3315-232-A BLOCK ASSY, OP
564 3-223-341-31 SCREW (SPECIAL FLAT HEAD. M1.7)
565 3-233-070-01 COVER (FLEXIBLE)
566 3-223-435-01 SPRING (OP), TORSION
M101 A-3315-227-A MOTOR ASSY, SL (SLED)
M103 A-3315-223-A MOTOR ASSY, L (LOADING)
552
557
552
552
552
561
563
564
565
559
566
557
553
558
552
552
552
552
552
551
555
552
552
553
552
554
556
552
552
552
552
556
557
552
557
562
560
557
#5
M101
#4
#4
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
M103
