Sony CDX-616 - Page 36

– 49 –

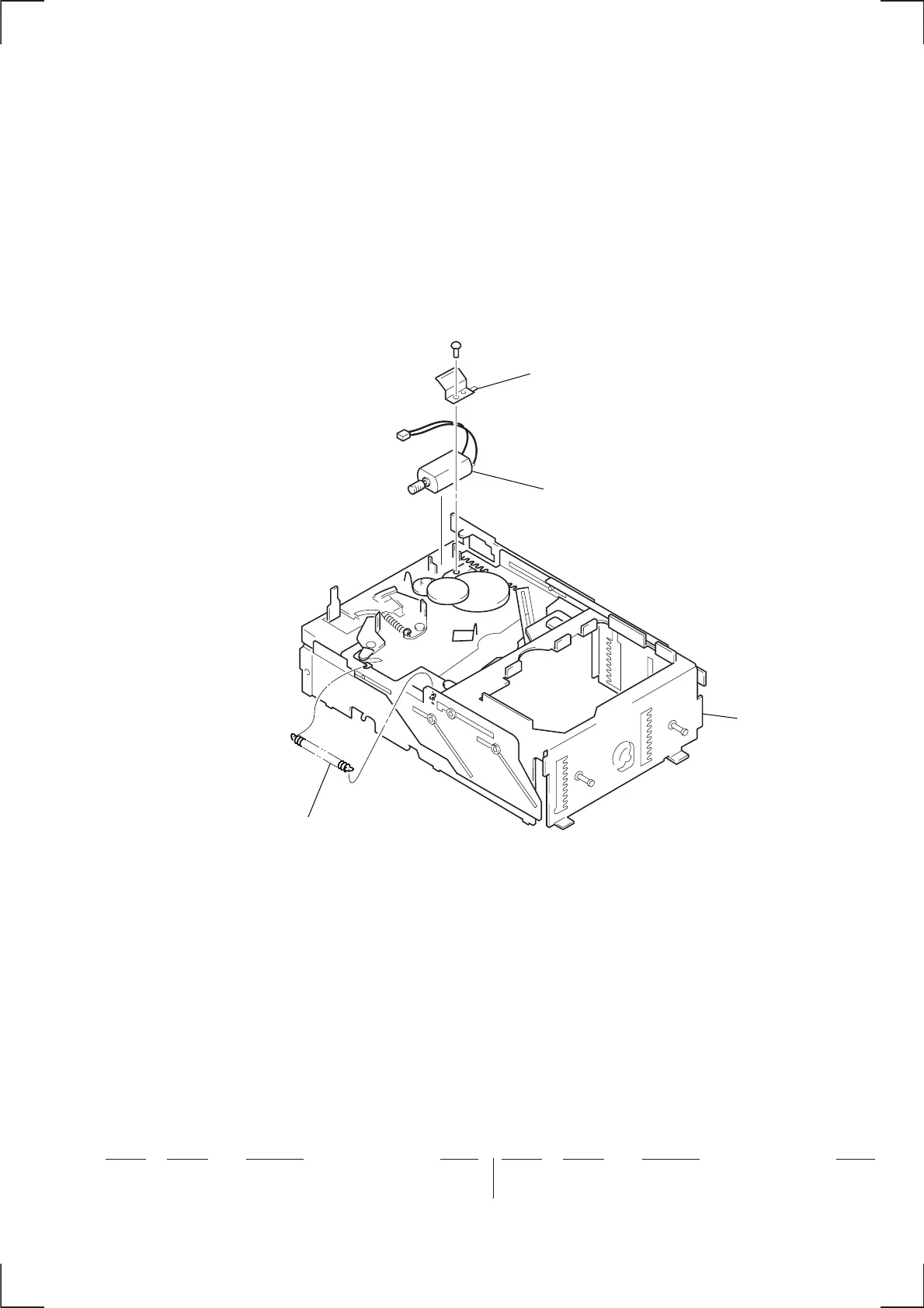

(3) MECHANISM DECK SECTION-2
(MG-250C-137)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-024-170-01 SPRING (SB), TENSION
* 102 3-024-172-01 BRACKET (EVM)
103 X-3375-498-4 CHASSIS (D) SUB ASSY
M104 A-3301-123-A ELJ MOTOR ASSY (ELEVATOR)
102
101
103
M104
#12
