Sony CDX-616 - Page 37

– 50 –

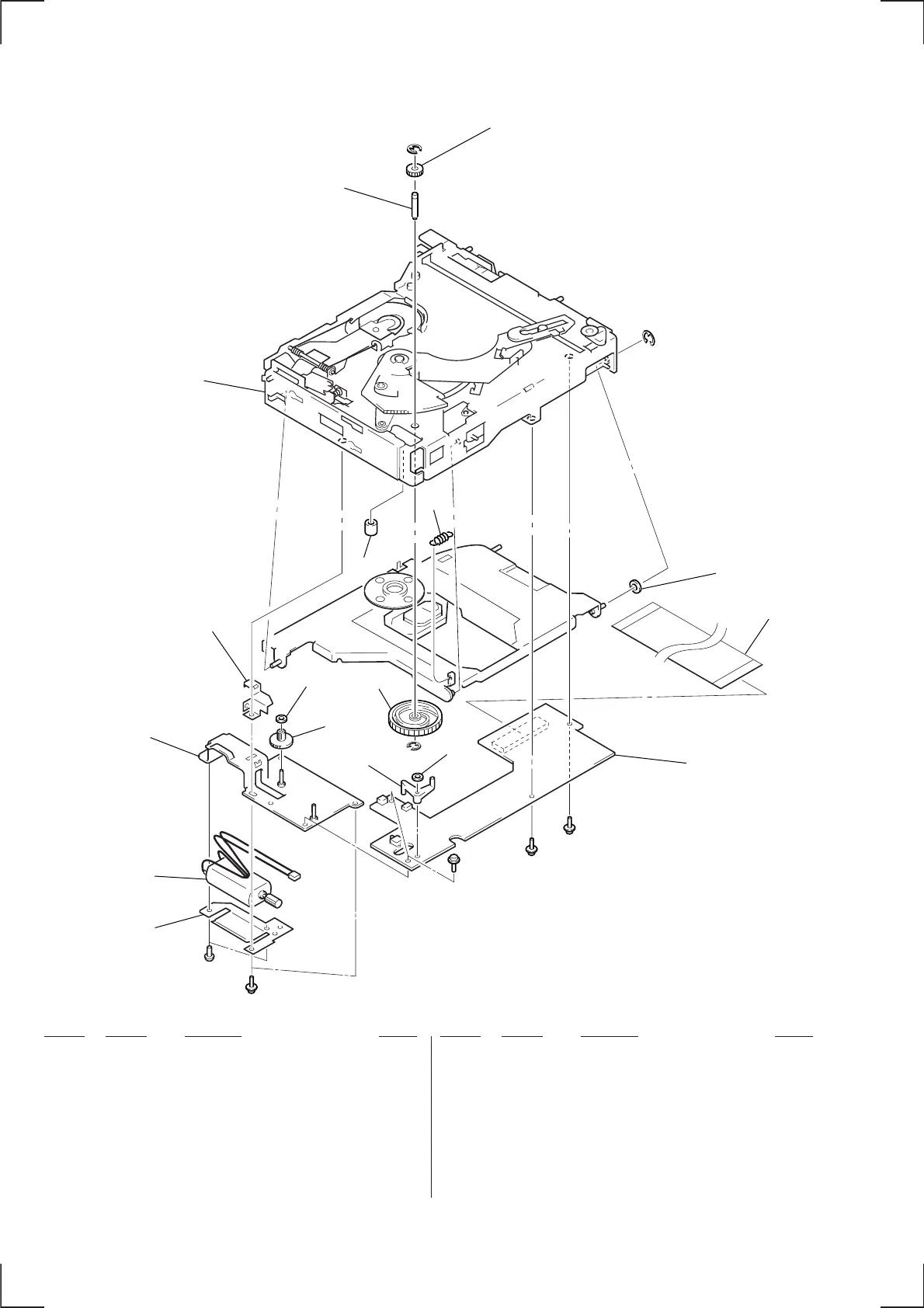

(4) MECHANISM DECK SECTION-3
(MG-250C-137)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 151 3-024-150-01 RETAINER (CHM)
* 152 X-3375-445-1 BRACKET (CHM) ASSY
153 3-010-270-01 COVER (CHM)
154 3-321-813-01 WASHER, COTTER POLYETHYLENE
155 3-017-139-01 GEAR (WORM LOAD A)
156 3-010-255-01 ARM (LSW)
157 3-573-936-00 STOPPER, REEL
158 X-3373-552-1 GEAR (LOAD 1) ASSY
159 3-010-252-01 ROLLER (CRE)
160 3-010-268-01 SPRING (DH), TENSION
* 161 A-3290-194-F CHASSIS (EVY) (MAIN) ASSY
162 3-010-254-01 SHAFT (ROTARY PREVENTION C)
163 3-010-253-01 GEAR (LOMINI)
164 3-701-438-11 WASHER, 2.5
165 1-664-627-11 MAIN FLEXIBLE BOARD
* 166 A-3313-586-A RF BOARD, COMPLETE
M103 A-3301-123-A ELJ MOTOR ASSY (CHUCKING)
163
162
161
160
159
153
152
151
166
165
164
157
156
158
154
155
#8
#4
#6
#6
#6
#6
#7
M103
#8
