– 51 –

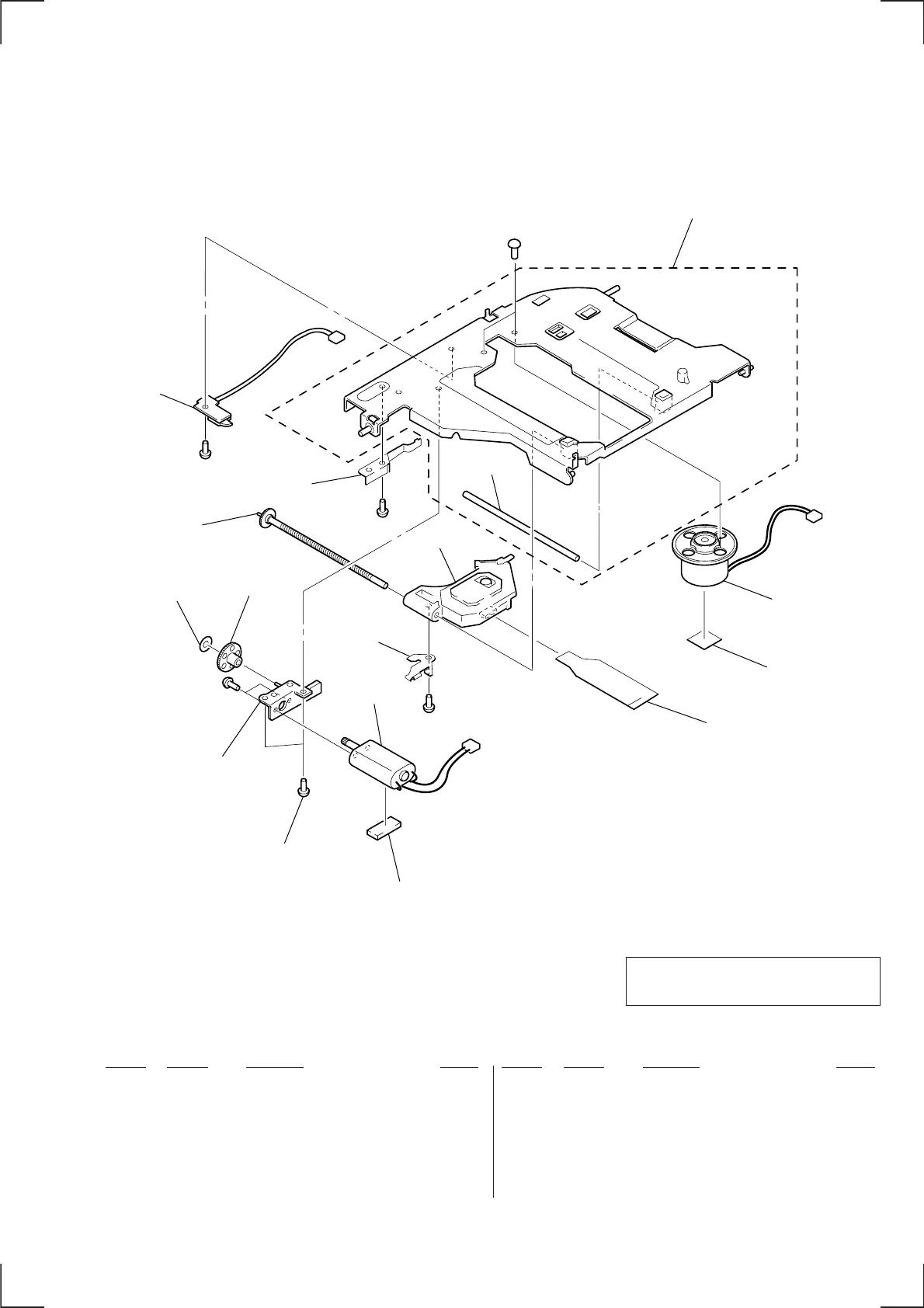

(5) MECHANISM DECK SECTION-4
(MG-250C-137)
201 3-911-215-02 SHEET (LEAD RETAINER)
202 3-920-362-01 SCREW (ESCUTCHEON)
203 X-3373-229-1 BASE (SLED) ASSY
204 3-010-258-01 GEAR (SLED MID)
205 3-573-936-00 STOPPER, REEL
206 A-3291-958-A SHAFT (SLED) ASSY
207 3-010-263-01 DETENT (SHAFT THRUST)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 208 1-664-104-11 SW BOARD
* 209 A-3301-077-A BASE (OPT) (J) ASSY
210 1-664-626-11 OP FLEXIBLE BOARD
! 211 8-820-010-05 OPTICAL PICK-UP KSS-521A/J2RP
212 3-010-262-01 DETENT (SLED)
M101 A-3291-956-A MOTOR SUB ASSY, SPINDLE
M102 A-3291-955-A MOTOR SUB ASSY, SLED
208
206
205
204
203
202
201
212
211
207
209
M101
210
not supplied
not supplied
#10
#5
#5
M102
#9
#7
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
