10
CDX-GT22W/GT120/GT220

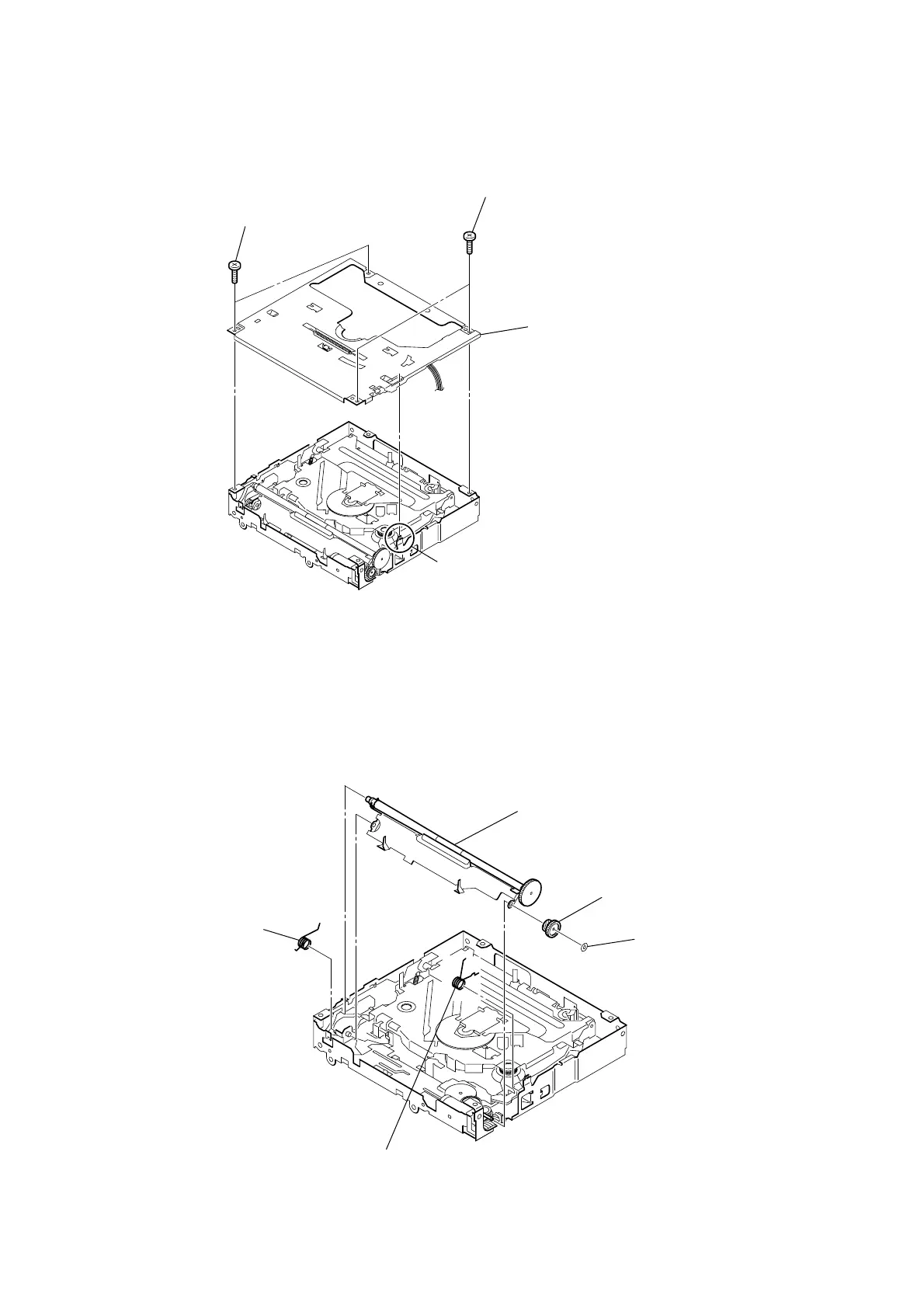

3-6. ROLLER ARM ASSY
3-5. CHASSIS (T) SUB ASSY
4
chassis (T) sub assy
3
claw
1
two precision
screws
(+P 1.7
×
2.2)
2
two precision
screws
(+P 1.7
×
2.2)
3
washer
4
gear (RA1)
5
roller arm assy
1
spring (RAL)
2
spring (RAR)
