4
CDX-GT22W/GT120/GT220
SECTION 1
SERVICE NOTE
SERVO BOAR
CN2
MAIN BOARD
CNP301
J-2502-076-1

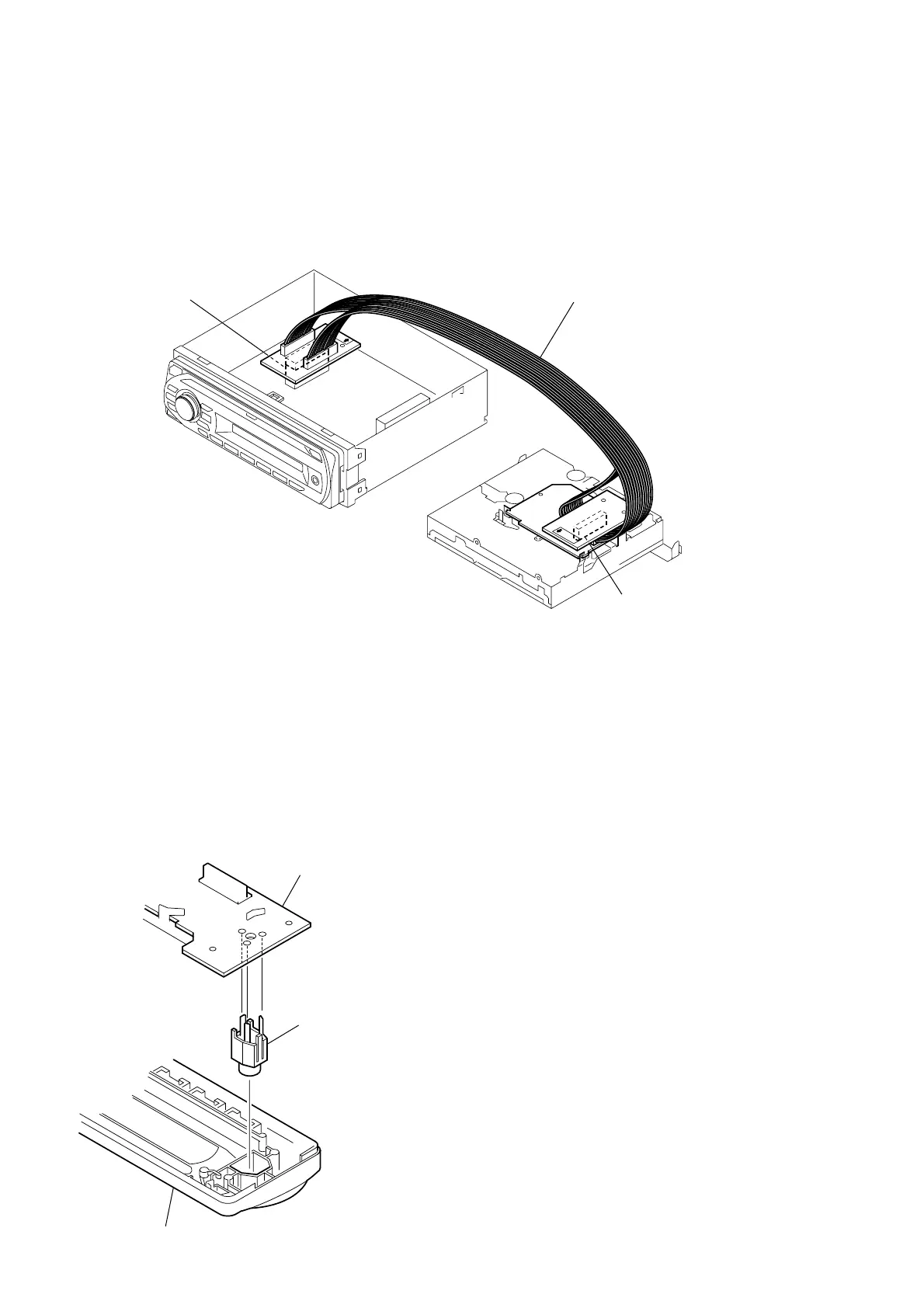

EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
• Connect the MAIN board (CNP301) and the SERVO board (CN2)
with the extension cable (Part No. J-2502-076-1).
NOTE FOR REPLACEMENT OF THE SERVO BOARD
When repairing, the complete SERVO board (A-1201-631-A) should
be replaced since any parts in the SERVO board cannot be repaired.
NOTE FOR REPLACEMENT OF THE AUX JACK (J901)
To replace the AUX jack requires alignment.
1. Insert the AUX jack into the KEY board.
2. Place the KEY board on the front panel.
3. Solder the three terminals of the jack.
KEY board
front panel
AUX jac
To Next Page
