Sony CDX-GT22W Service Manual

11
CDX-GT22W/GT120/GT220

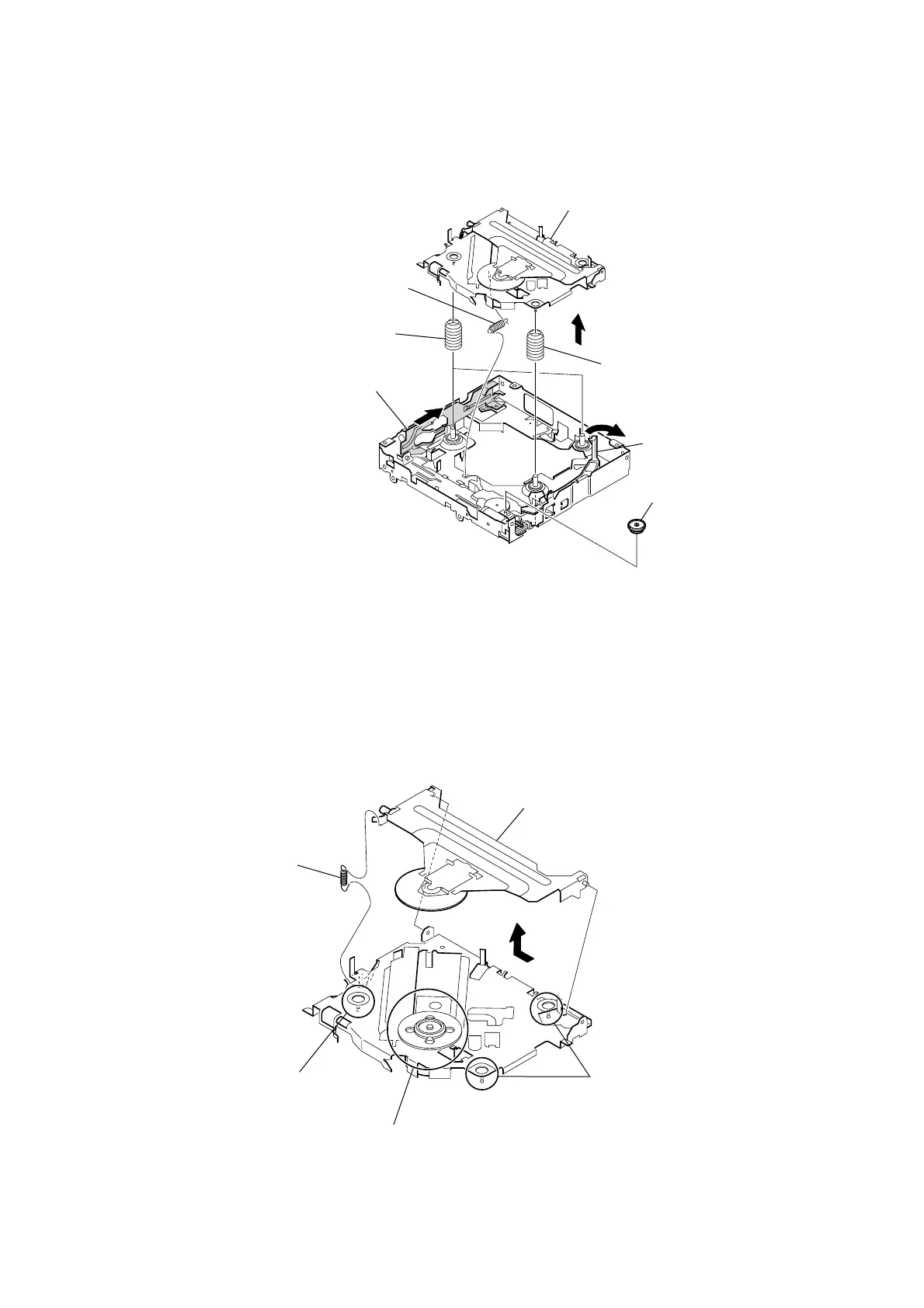

3-7. CHASSIS (OP) ASSY
7 coil spring (damper) (natural)
8 coil spring (damper) (green
)
6 chassis (OP) assy
5
1 tension spring (KF)
2 gear (LE1)
3 lever (D)
4 slider (R)
3-8. CHUCKING ARM SUB ASSY
3 chucking arm sub assy
2
1
spring
Note: Have this portion receive the chassis.
Note: Have this portion receive the chassis.
Note: Be careful not to touch the turn table.
