12
CDX-GT22W/GT120/GT220

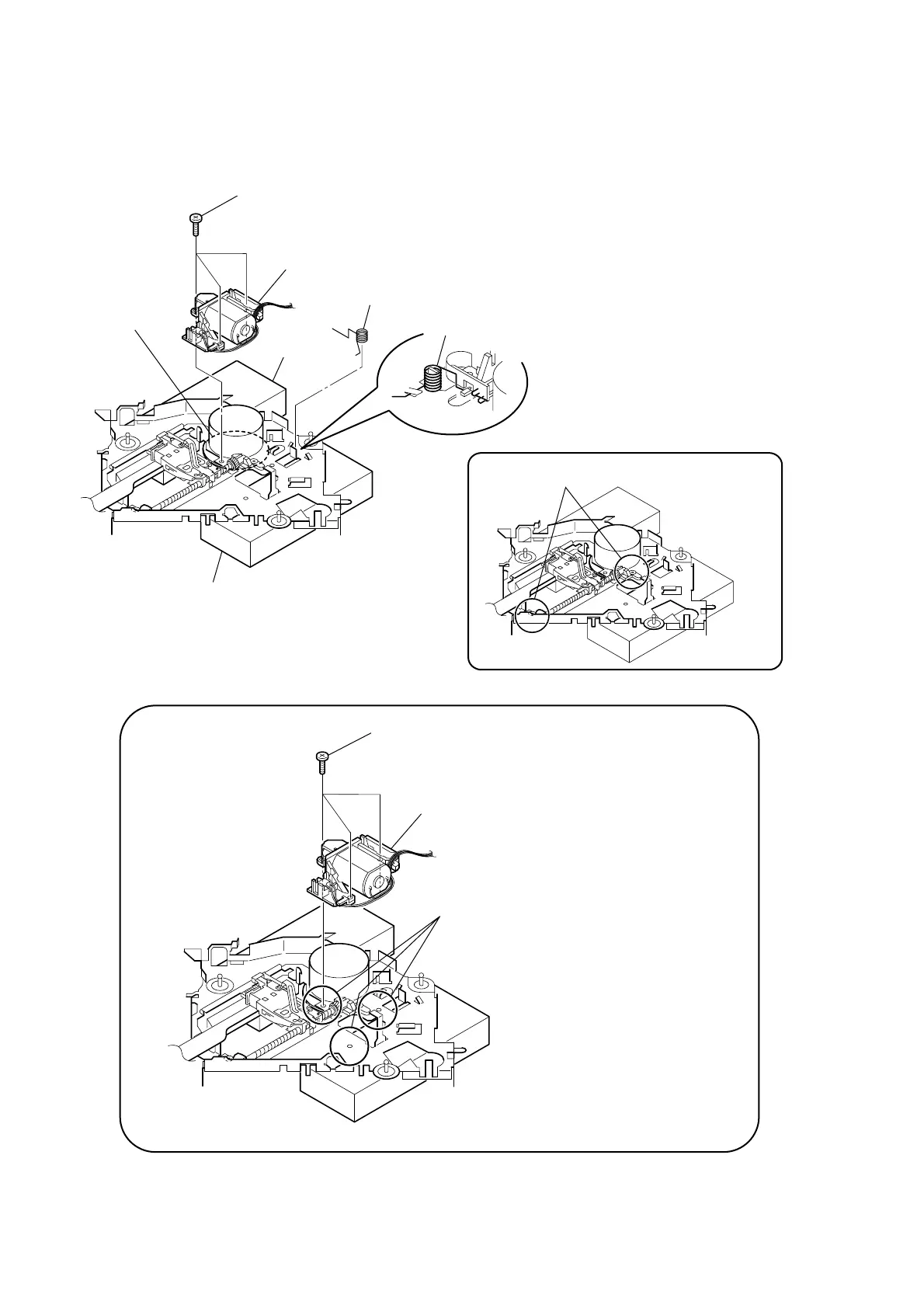

3-9. SLED MOTOR ASSY
3
sled mtor assy
sled mtor assy
1
spring
spring
stand
stand
turn table
2
three serration
screws
(M 2
×
3)
three serration
screws
(M 2
×
3)
Note: Place the stand with care not to touch the turn table.
Note:
Never remove these parts since they were adjusted.
Note for Assembly
Note: Take care to prevent the chassis from being bent
when tightening the three machine screws.
