Sony CDX-L280 - Shaft Roller Assy; Floating Block Assy

11
CDX-L280
1 tension spring (KF1)
7 compression spring (FL)
6 floating block assy
8 compression spring (FL)
4 Fit lever (D) in the
direction of the arrow.
2 damper (T)
3 damper (T)
5 Turn loading ring in the
direction of the arrow.
Fig. 1
1 tension spring (RA)
2 arm (roller)
3 retaing ring (RA)
4 shaft retainer (roller)
5 shaft roller assy
6 special screw
7 LOAD-SW board
retaing ring
(RA)
arm
arm
washer
washer
shaft retainer
(roller)
shaft retainer (roller)

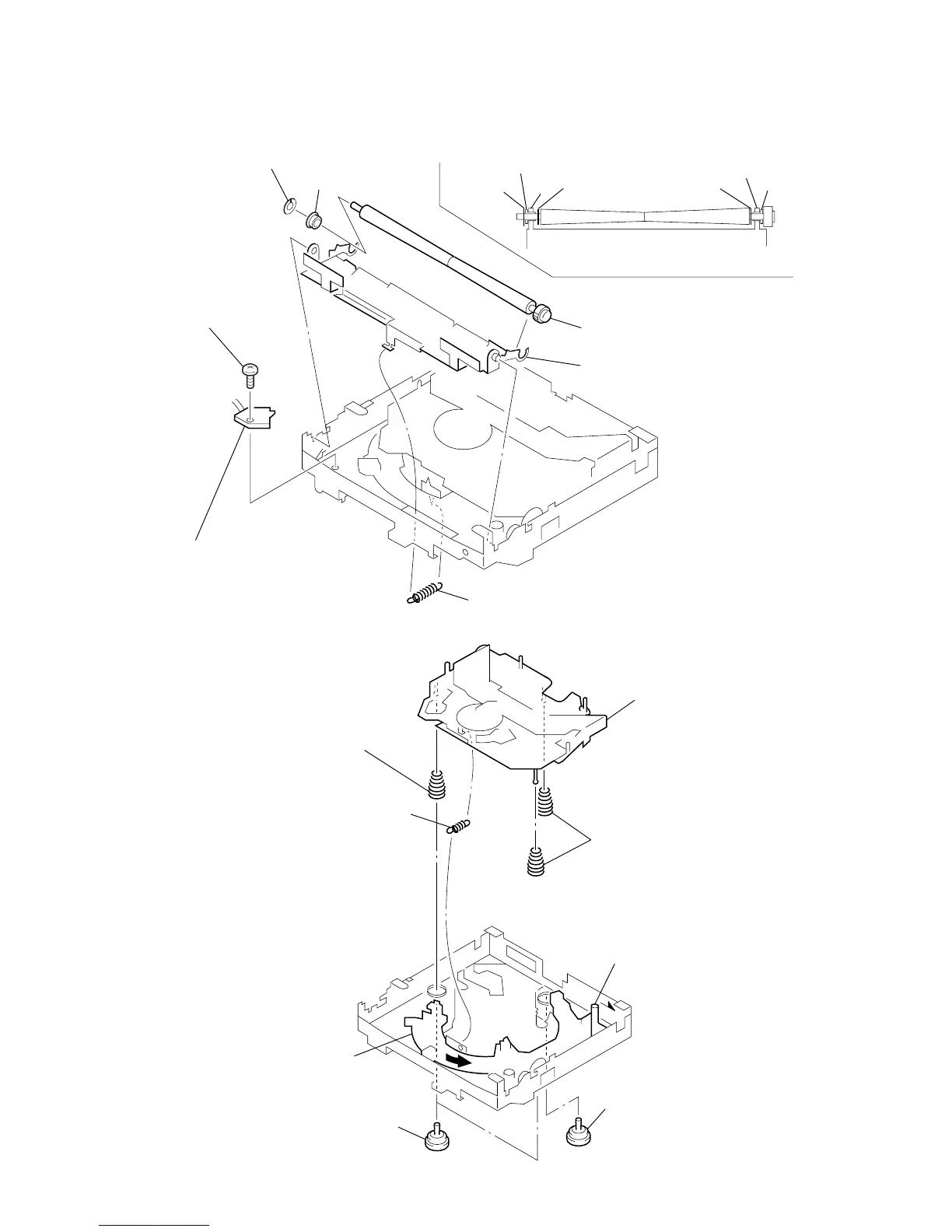

2-9. FLOATING BLOCK ASSY
2-8. SHAFT ROLLER ASSY
• When installing, take note of the positions
arm (roller) and washers. (Fig. 1)
