Sony CDX-L280 - Printed Wiring Board -Display Section

2424
CDX-L280
(Volume)
(Volume)
D569
D561
R570
R569
D570
D564
R566
R565
R568 R567
R564
D565
R563
D566
R554
D562
D563
D568 D567 D574 D573 D572 D571 D578 D579
D575
R571
R572
R576
R575
R555
D580
D576
D555
R574 R573
D581
D577
IC552
CNP552
S511
PL551
S509
D553
JR503
C551
R551
R559
R561
R562
R560
D552
R552
JR501
D551 C552
R553
C555
S516
R510
JR502
R514
R515
S517
D554
C553
R516
S518 S519
IC551
LCD501
S520 S521 S508
R518 R509
S507
S503
S504
R503
R502
R504
R505
R506
R508
R507
S506
S505
S502
PL552
R519R517
S513
R501
S512
S515
S510
S501
S514
R513
R512
CNP551
R511
A
B
C
D
E
F
G
H
I
123456789101112131415

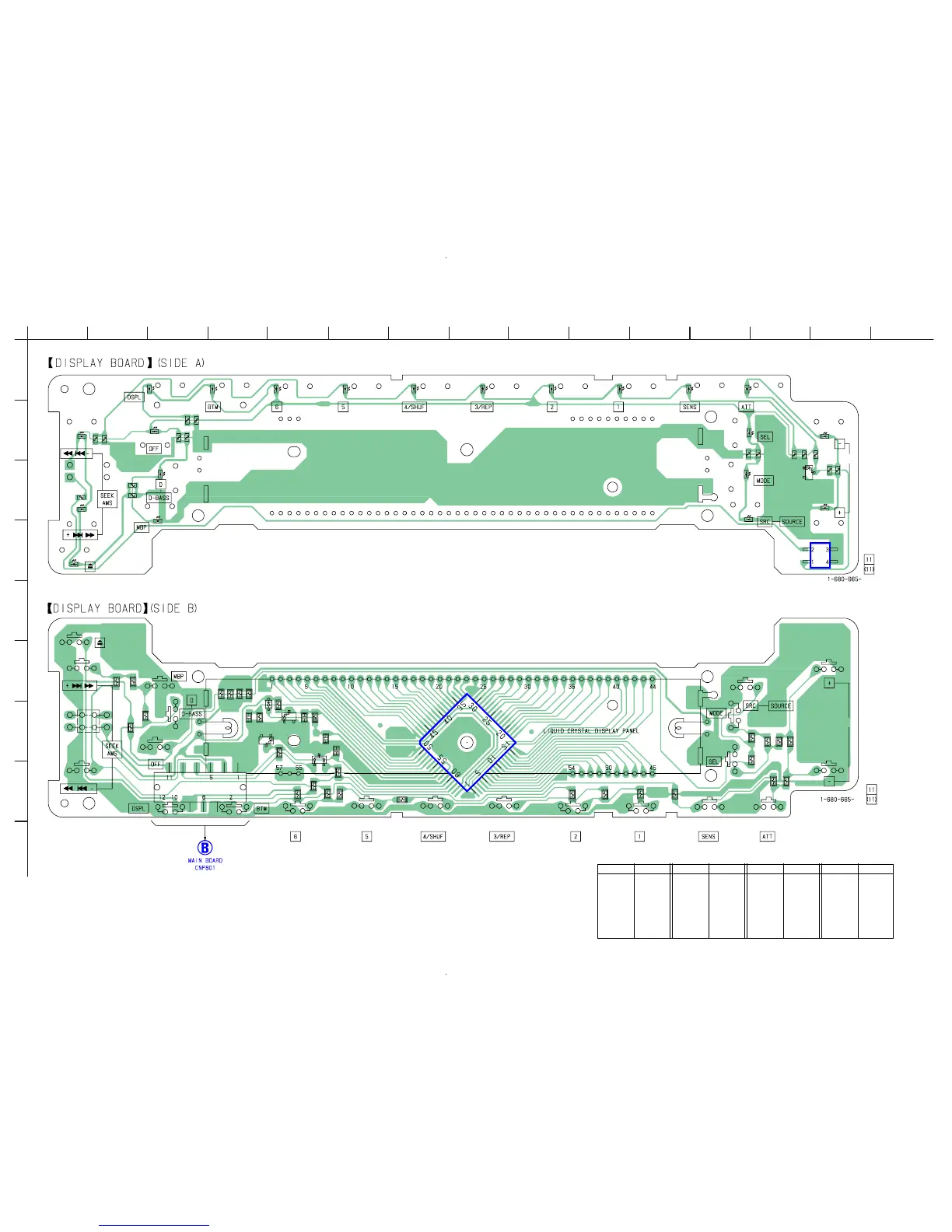

3-11. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 17 for Circuit Boards Location.
(Page 21)
(D551) G-5
(D552) F-5
(D553) G-5
(D554) G-6
D555 C-14
D561 B-1
D562 C-1
D563 D-1
Ref. No. Location
• Semiconductor Location
Ref. No. Location
( ): SIDE B
D564 B-3
D565 C-3
D566 D-3
D567 A-6
D568 A-5
D569 A-4
D570 A-2
Ref. No. Location
D571 A-10
D572 A-9
D573 A-8
D574 A-7
D575 B-13
D576 C-13
D577 C-13
D578 A-11
D579 A-12
D580 B-14
D581 C-14
(IC551) G-8
IC552 D-14
Ref. No. Location
