Sony CDX-L280 - 4 Exploded Views; Chassis Section

28
CDX-L280
SECTION 4
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark

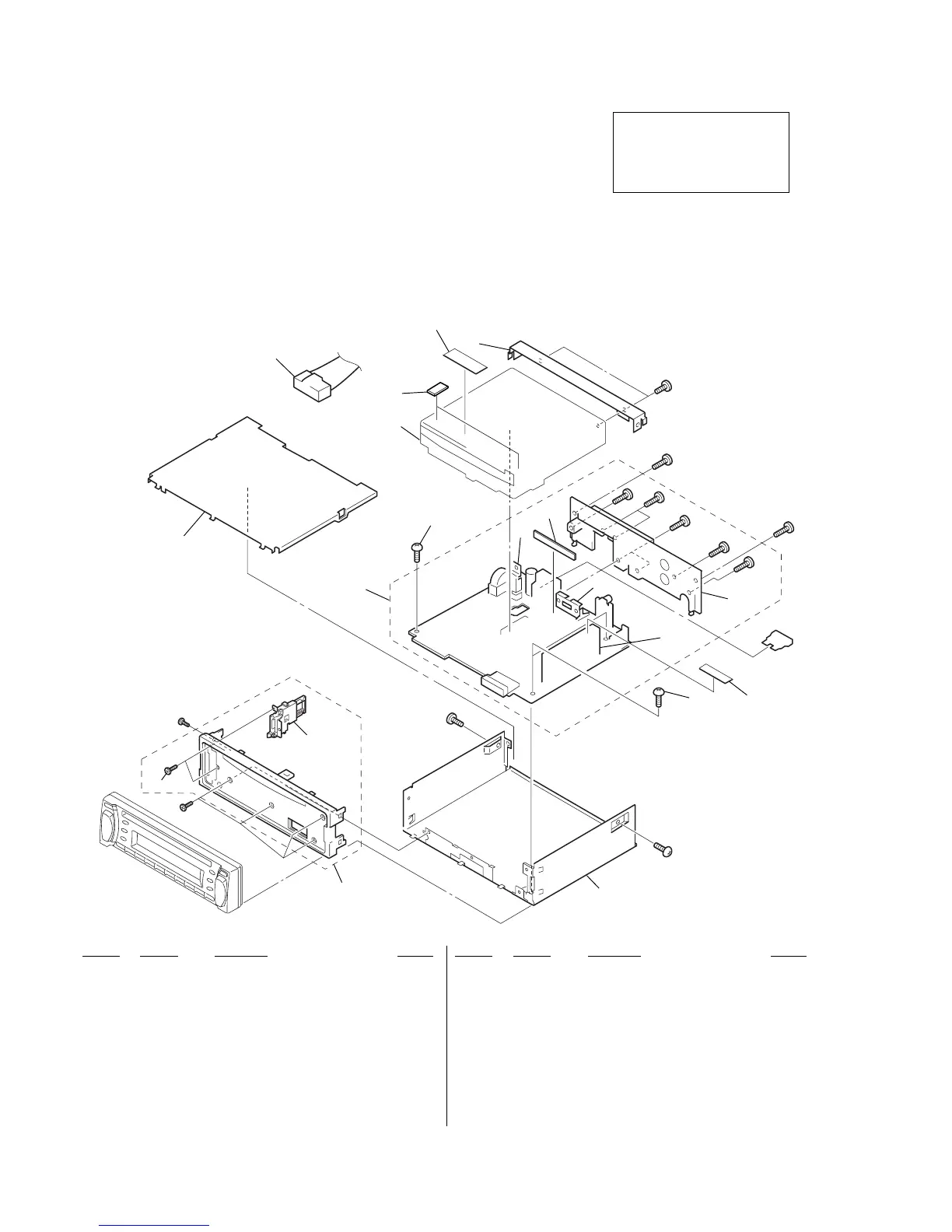

4-1. CHASSIS SECTION
R
Ref. No. Part No. Description Remark
R
1
2
3
#1
#1
#1
#1
#1
#2
#2
#2
F901
TU601
not supplie
d
MG-393CX-121//K
#2
#3
#2
#2
4
6
7
7
8
11
9
10
12
13
14
5
15
1 X-3379-736-5 PANEL ASSY, SUB
2 X-3382-588-1 LOCK ASSY (S)
3 3-224-309-22 COVER
4 1-776-527-11 CORD (WITH CONNECTOR) (ISO) (POWER)
* 5 3-024-285-01 CUSHION (RUBBER)
* 6 3-041-173-12 BRACKET (CD)
7 3-922-535-11 SCREW (+BTT)
8 A-3274-620-A MAIN BOARD, COMPLETE
* 9 3-224-613-01 HEAT SINK
* 10 3-019-565-01 BRACKET (IC)
11 1-683-602-11 SPEAKER BOARD
12 3-041-261-11 BRACKET (TR)
* 13 3-224-612-02 CHASSIS (CD)
14 3-231-472-01 SCREW (+B 2X4)
15 3-223-913-11 LABEL (OP CAUTION)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU601 A-3220-835-A TUNER UNIT (TUX-010)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-685-795-09 SCREW +PTT 2.6X12 (S)
