Sony CDX-L280 - Front Panel Section

29
CDX-L280

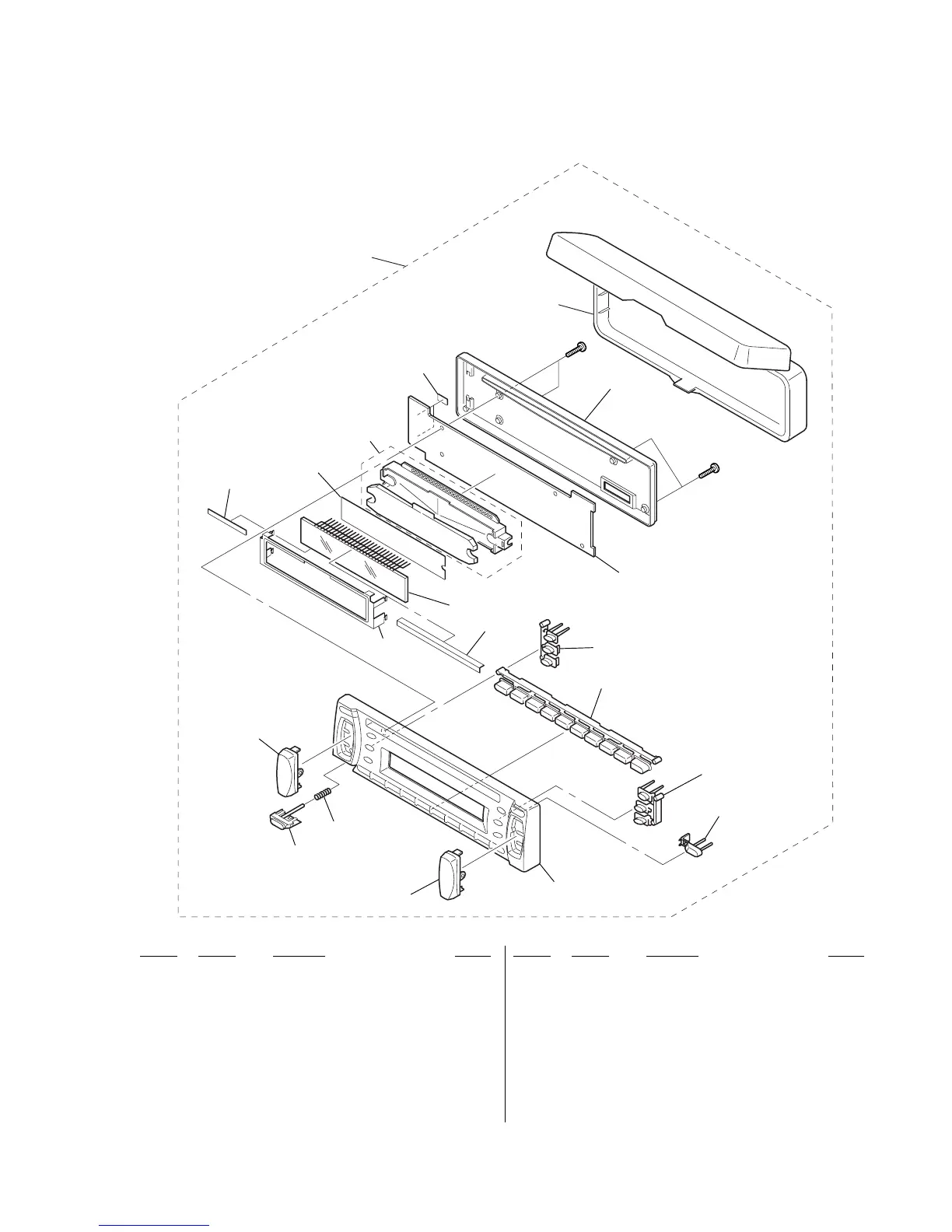

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51
53
54
52
55
56
57
58
59
61
66
62
63
65
#4
#4
not supplied
(DISPLAY board)
LCD501
64
60
67
68
51 X-3382-770-1 PANEL SUB ASSY, FRONT
52 3-224-605-21 BUTTON (SEEK/AMS)
53 3-224-606-21 BUTTON (RELEASE)
54 3-229-774-01 SPRING (RELEASE)
55 3-224-604-41 BUTTON (+/–)
56 3-224-601-11 BUTTON (EJECT)
57 3-224-603-01 BUTTON (OFF)
58 3-224-600-11 BUTTON (1-6)
59 3-224-602-01 BUTTON (SOURCE)
* 60 3-227-293-01 SHEET (LCD)
* 61 3-224-609-03 PLATE (LCD), GROUND
* 62 3-224-610-02 SHEET (LCD), DIFFUSION
* 63 X-3379-734-1 HOLDER (LCD) ASSY
64 3-224-599-01 PANEL, FRONT BACK
65 3-226-909-01 SHEET (BACK)
* 66 3-229-751-01 SHEET (LCD.UP)
67 X-3380-054-2 CASE ASSY (for FRONT PANEL)
68 A-3315-967-A PANEL COMPLETE ASSY, FRONT
LCD501 1-804-300-31 DISPLAY PANEL, LIQUID CRYSTAL
#4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
