38
CDX-L280
SERVO
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SL SW SPEAKER
R26 1-216-797-11 METAL CHIP 10 5% 1/10W
R29 1-216-833-11 METAL CHIP 10K 5% 1/10W
R30 1-216-833-11 METAL CHIP 10K 5% 1/10W
< VIBRATOR >
X1 1-795-520-11 VIBRATOR, CERAMIC (16.9344MHz)
*************************************************************
1-683-282-11 SL SW BOARD
************
< SWITCH >
SW4 1-529-565-41 SWITCH, PUSH (1 KEY) (LIMIT)
*************************************************************
1-683-602-11 SPEAKER BOARD (supplied with
MAIN BOARD, COMPLETE)
**************
*************************************************************
MISCELLANEOUS
***************
4 1-776-527-11 CORD (WITH CONNECTOR) (ISO) (POWER)
201 X-3378-480-1 CHASSIS (OP) ASSY (including M901)
207 1-823-641-11 CABLE, FLEXIBLE FLAT (6 CORE)
0 210 8-820-165-06 OPTICAL PICK-UP KSS-721A/C-RP
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3301-985-A MOTOR ASSY, SLED (SLED)
M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
*************************************************************
ACCESSORIES
************
3-227-644-41 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
GERMAN,FRENCH,ITALIAN,DUTCH)
3-227-649-51 MANUAL, INSTRUCTION (ENGLISH,GERMAN,
FRENCH,ITALIAN,DUTCH)
X-3380-054-2 CASE ASSY (for FRONT PANEL)
*************************************************************

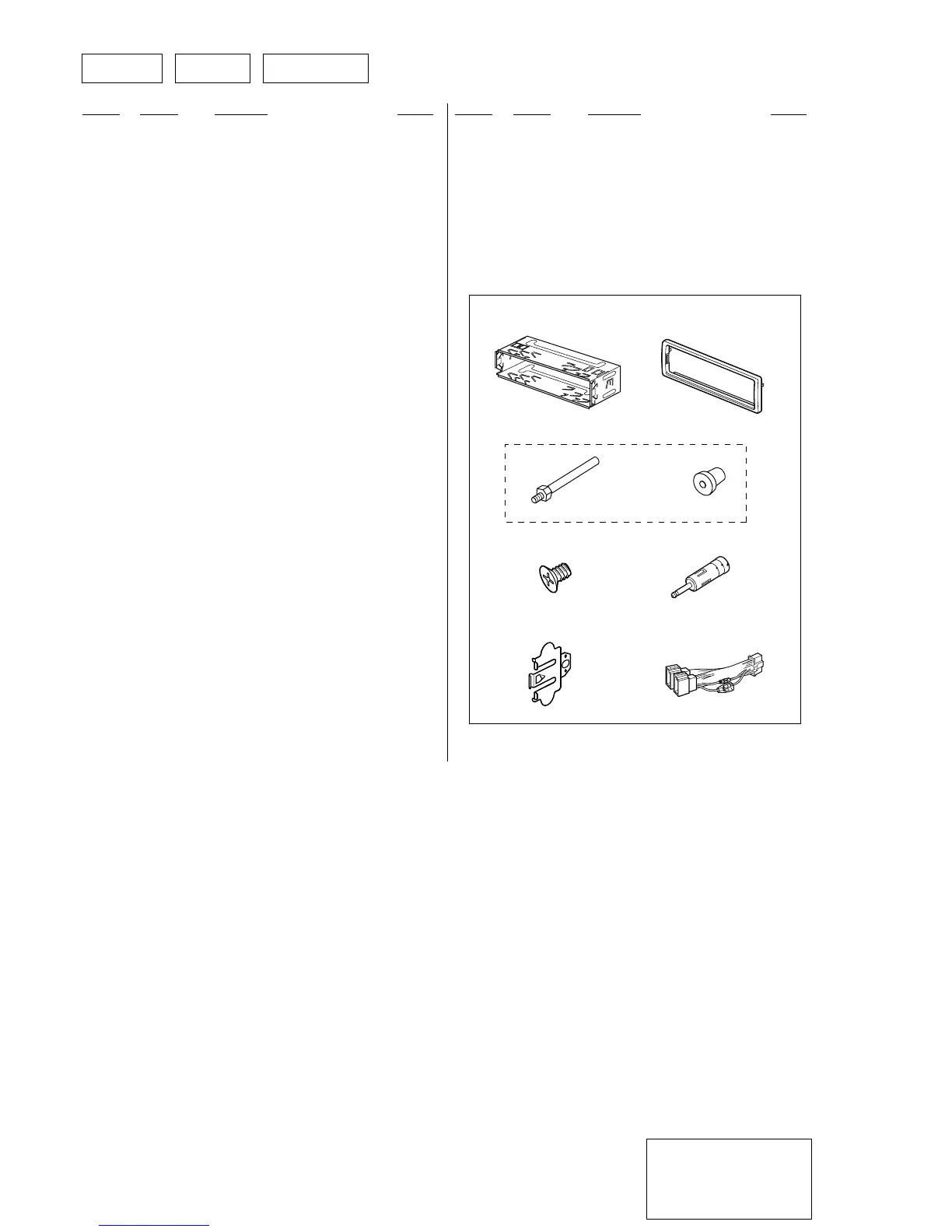

PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
251 3-014-370-22 FRAME, FITTING
252 X-3366-405-1 SCREW ASSY (EXP), FITTING
253 3-224-614-01 COLLAR
254 3-934-325-01 SCREW (+K 5X8 TP)
255 1-465-459-21 ADAPTOR, ANTENNA
256 3-030-929-04 SPRING, FITTING
257 1-776-527-11 CORD (WITH CONNECTOR) (ISO) (POWER)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
251
252
253
254 255
256 257
