Sony CDX-R3000 Service Manual

42
CDX-R3000/RW300
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R13 1-216-833-11 METAL CHIP 10K 5% 1/10W
R14 1-216-797-11 METAL CHIP 10 5% 1/10W
R15 1-216-797-11 METAL CHIP 10 5% 1/10W
R41 1-216-821-11 METAL CHIP 1K 5% 1/10W
R42 1-216-821-11 METAL CHIP 1K 5% 1/10W
R44 1-414-760-21 FERRITE, EMI (SMD)
R45 1-414-760-21 FERRITE, EMI (SMD)
R70 1-216-842-11 METAL CHIP 56K 5% 1/10W
R71 1-216-833-11 METAL CHIP 10K 5% 1/10W
R72 1-216-842-11 METAL CHIP 56K 5% 1/10W
R73 1-216-833-11 METAL CHIP 10K 5% 1/10W
R74 1-216-837-11 METAL CHIP 22K 5% 1/10W
R75 1-216-833-11 METAL CHIP 10K 5% 1/10W
R76 1-216-837-11 METAL CHIP 22K 5% 1/10W
R77 1-216-833-11 METAL CHIP 10K 5% 1/10W
R78 1-216-833-11 METAL CHIP 10K 5% 1/10W
R79 1-216-833-11 METAL CHIP 10K 5% 1/10W
R80 1-216-833-11 METAL CHIP 10K 5% 1/10W
R81 1-216-833-11 METAL CHIP 10K 5% 1/10W
R82 1-216-837-11 METAL CHIP 22K 5% 1/10W
R83 1-216-833-11 METAL CHIP 10K 5% 1/10W
R84 1-216-837-11 METAL CHIP 22K 5% 1/10W
R85 1-216-833-11 METAL CHIP 10K 5% 1/10W
< SWITCH >
SW1 1-529-565-61 SWITCH, PUSH (1 KEY) (DOWN)
< VIBRATOR >
X1 1-795-562-21 VIBRATOR, CERAMIC (16.9344MHz)
*************************************************************
MISCELLANEOUS
***************
6 1-776-206-21 CORD (WITH CONNECTOR) (POWER)
0153 8-820-207-02 OPTICAL PICK-UP KSS1000E/K1RP
154 A-3337-640-A CHASSIS (OP) SUB ASSY (including M901)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3337-638-A MOTOR ASSY, SL (SLED)
M903 A-3372-454-A MOTOR ASSY, LE (LOADING)
SW4 1-571-099-11 SWITCH (1 KEY) (LIMIT)
*************************************************************
ACCESSORIES
************
3-261-844-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
(R3000:US,CND)
3-261-844-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH,
TRADITIONAL CHINESE) (R3000:E)
3-261-844-31 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
(RW300)
3-261-846-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH) (R3000:US,CND)
3-261-846-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH,TRADITIONAL CHINESE)
(R3000:E)
3-261-846-31 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH) (RW300)
X-3378-390-3 CASE ASSY (for FRONT PANEL)
*************************************************************

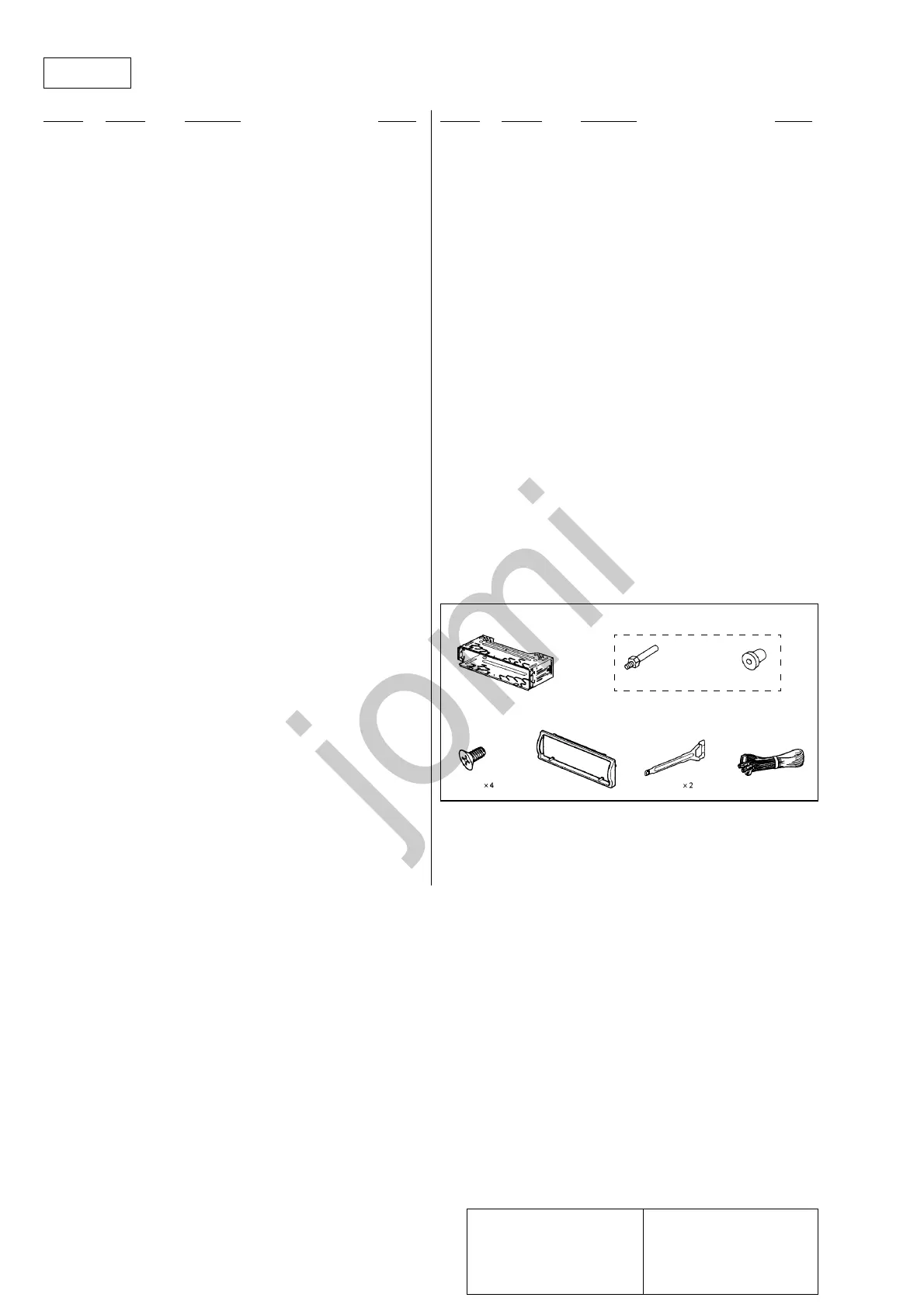

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
301 X-3382-647-1 FRAME ASSY, FITTING
302 X-3366-405-1 SCREW ASSY (EXP), FITTING (E)
303 3-934-325-01 SCREW (+K 5X8 TP)
304 3-260-282-01 COLLAR
305 3-246-471-01 KEY (FRAME)
306 1-776-206-21 CORD (WITH CONNECTOR) (POWER)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
SERVO
302301
305303 306304
jomi
