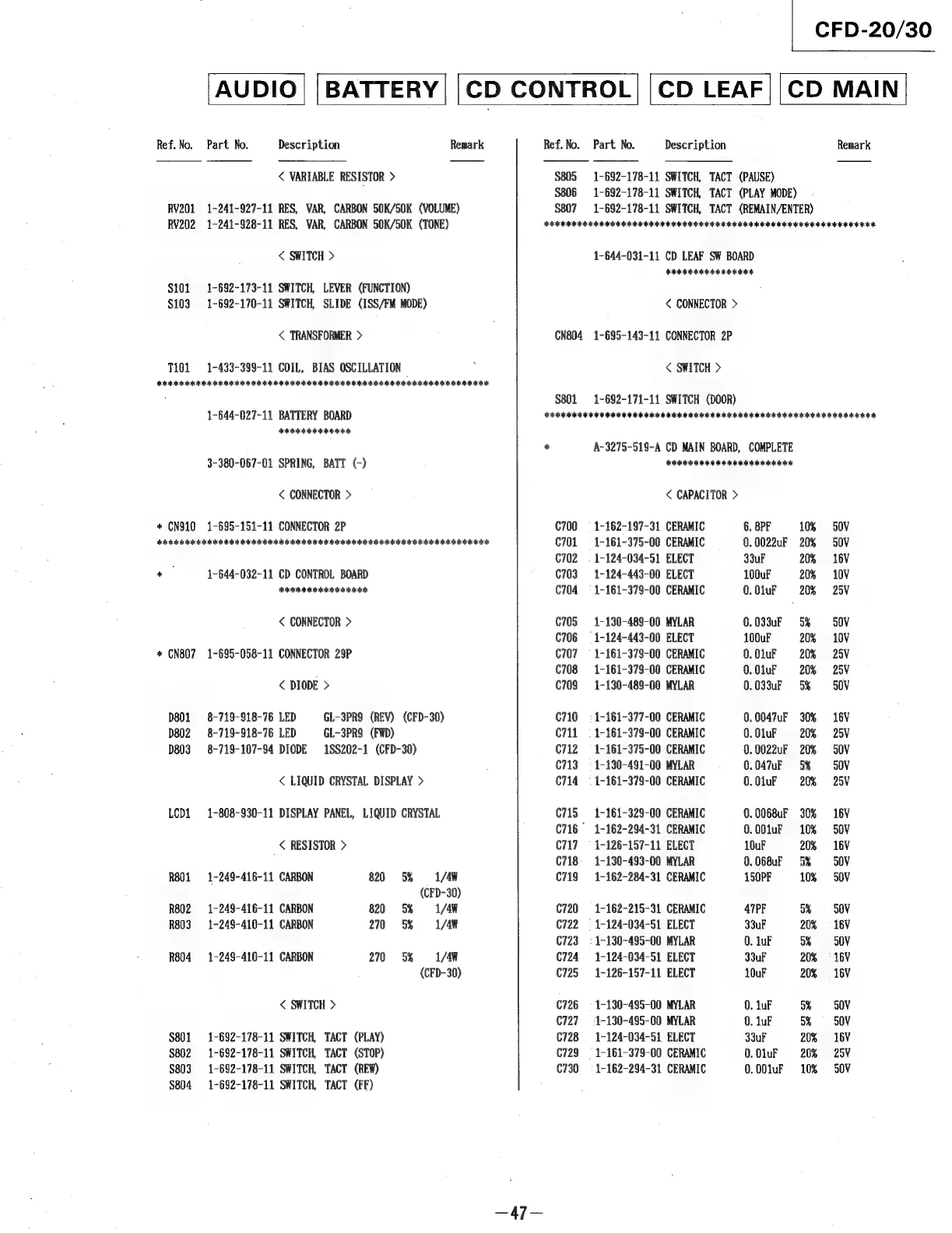

CFD-20/30
[AUDIO | |BATTERY| |CD CONTROL] (CD LEAF] |CD MAIN
Ref.No. Part No. Description Remark
< VARIABLE RESISTOR >
RV201
RV202
1-241-927-11 RES, VAR, CARBON 50K/50K (VOLUME)
1-241-928-11 RES, VAR, CARBON 50K/50K (TONE)
< SWITCH >
$101
$103
1-692-173-11 SWITCH, LEVER (FUNCTION)
1-692-170-11 SWITCH, SLIDE (ISS/FM MODE)
< TRANSFORMER >
T101 1-433-399-11 COIL, BIAS OSCILLATION
Jdbioidbidoi toosidoioieidbloiivieioisioiel ideo iotoioioiooinicoliiotoictolstobiooiidotes
1-644-027-11 BATTERY BOARD
HERE EEE
3-380-067-01 SPRING, BATT (-)
< CONNECTOR >
* (N910 1-695-151-11 CONNECTOR 2P
HAA AAR HAAR ARR RHA AR ARK AAR EEE RRR AREER EERE AR EEE
1-644-032-11 CD CONTROL BOARD
FORE RIOR ERE
< CONNECTOR >
* CN807 1-695-058-11 CONNECTOR 29P
< DIODE >
D801 8-719-918-76 LED GL-3PR9 (REV) (CFD-30)
D802 8-719-918-76 LED GL-3PR9 (FWD)
D803 8-719-107-94 DIODE 1S8S202-1 (CFD-30)
< LIQUID CRYSTAL DISPLAY >
LCD1 1-808-930-11 DISPLAY PANEL, LIQUID CRYSTAL
_< RESISTOR >
R801 1-249-416-11 CARBON 820 5% = «1/4W
(CFD-30)
R802 1-249-416-11 CARBON 820 5% «1/4¥
R803 1-249-410-11 CARBON 270 «5% = «1/48
R804 1-249-410-11 CARBON 270 «5% «1/48
(CFD-30)
< SWITCH >
$801 1-692-178-11 SWITCH, TACT (PLAY)
$802 1-692-178-11 SWITCH, TACT (STOP)
$803 1-692-178-11 SWITCH, TACT (REW)
$804 1-692-178-11 SWITCH, TACT (FF)
Ref. No. Part No. Description Remark
$805 1-692-178-11 SWITCH, TACT (PAUSE)
S806 1-692-178-11 SWITCH, TACT (PLAY MODE)
S807 1-692-178-11 SWITCH, TACT (REMAIN/ENTER)
MARK R AK KEE EAE ER ER EERE REE EAR REE EEE RIOR EERIE EE ERE
1-644-031-11 CD LEAF SW BOARD
Innbbebbiaoebbkk
< CONNECTOR >
CN804 1-695-143-11 CONNECTOR 2P
< SWITCH >
S801 1-692-171-11 SWITCH (DOOR)
SHRP EER ERE ERR REE EAE EEE EE EEE OR RIG RR ORK
* A-3275-519-A CD MAIN BOARD, COMPLETE
FO i look dabokob tok
< CAPACITOR >
C700 = 1-162-197-31 CERAMIC 6. 8PF 10% 50V
C701 = 1-161-375-00 CERAMIC 0.0022uF 20% 50V
C702 = 1-124-034-51 ELECT 33uF 20% 16V
C703 1-124-443-00 ELECT 100uF 20% 10V
C704 = 1-161-379-00 CERAMIC 0.0iuF 20% 25V
C705 —1-130-489-00 MYLAR 0.033uF 5% 50V
C706 = 1-124-443-00 ELECT 100uF 20% 10V
C707 = 1-161-379-00 CERAMIC 0.01uF 20% 25V
C708 1-161-379-00 CERAMIC 0.0iuF 20% 25V
C709 1-130-489-00 MYLAR 0.033uF 5% 50V
C710 = 1-161-377-00 CERAMIC 0.0047uF 30% 16V
C711 = 1-161-379-00 CERAMIC 0.0luF 20% 25V
C712 = 1-161-375-00 CERAMIC 0.0022uF 20% SOV
C713 = 1-130-491-00 MYLAR 0.047uF 5% SOV
C714 = 1-161-379-00 CERAMIC 0.01uF 20% 25V
C715 1-161-329-00 CERAMIC 0.0068uF 30% 16V
C716 1-162-294-31 CERAMIC 0.001uF 10% SOV
C717) = 1-126-157-11 ELECT 10uF 20% 16V
C718: 1-130-493-00 MYLAR 0.068uF 5% SOV
C719 1-162-284-31 CERAMIC 150PF 10% SOV
C720 = 1-162-215-31 CERAMIC 47PF 3% = SOV
€722 = 1-124-034-51 ELECT 33uF 20% = 16V
C723 = 1-130-495-00 MYLAR 0. luF 3% = 0V
0724 = 1-124-034-51 ELECT 33uF 20% = 16V
C725 = 1-126-157-11 ELECT 10uF 20% = 16V
C726 = 1-130-495-00 MYLAR 0. Lu 5% © SOV
C727 =: 1-130-495-00 MYLAR 0. 1uF 5% = OOOV
C728 =1-124-034-51 ELECT 33uF 20% 16V
C729 = 1-161-379-00 CERAMIC 0.0iuF 20% 25V
C730 = 1-162-294-31 CERAMIC 0.001uF 10% SOV
