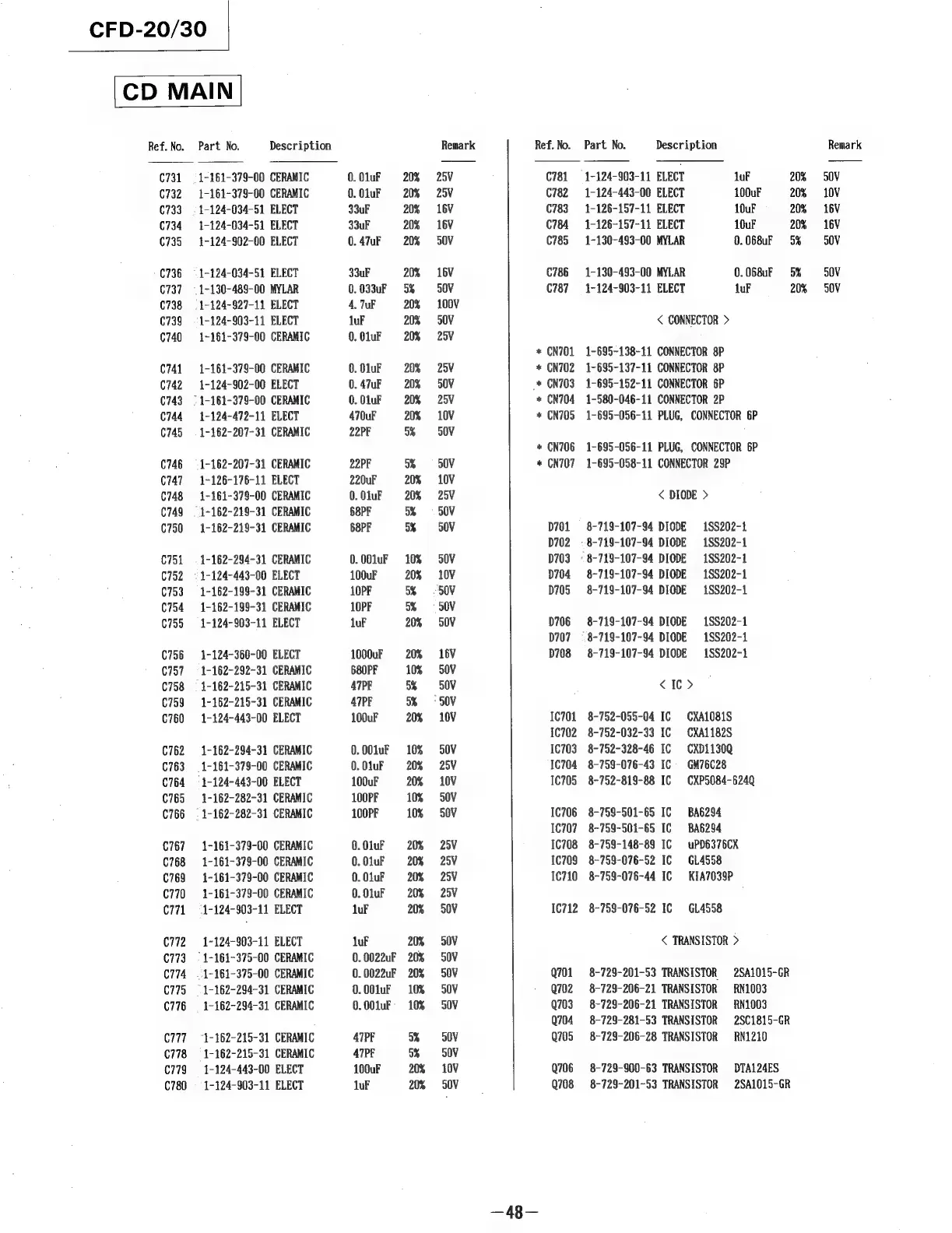

Sony CFD-21 - Page 26

CFD-20/30
‘CD MAIN |
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
C731 = 1-161-379-00 CERAMIC O.0luF 20% 25V C781 «= 1-124-903-11 ELECT uF 20% 50V
C732. ©1-161-379-00 CERAMIC 0.01uF 20% 25V C782 ~=1-124-443-00 ELECT 100uF 20% 10V
C733. = 1-124-034-51 ELECT 33uF 20% 16V C783. 1-126-157-11 ELECT 10uF 20% 16V
C734 =1-124-034-51 ELECT 33uF 20% + =16V C784»: 1-126-157-11 ELECT 10uF 20% 16V
C735 1-124-902-00 ELECT 0.47uF 20% 50V C785 1-130-493-00 MYLAR 0.068uF 5% 50V
C736 = 1-124-034-51 ELECT 33uF 20% 16V C786 =1-130-493-00 MYLAR 0.068uF 5% 50V
C737 = 1-130-489-00 MYLAR 0.033uF 5% 50V C787. = 1-124-903-11 ELECT uF 20% 50V
C738 = 1-124-927-11 ELECT 4. TuF 20% 100V
C739 = 1-124-903-11 ELECT luF 20% 50V < CONNECTOR >
C740 1-161-379-00 CERAMIC 0.01uF 20% 25V
* CN701 1-695-138-11 CONNECTOR 8P
C741 1-161-379-00 CERAMIC O.01luF 20% 25V * CN702 1-695-137-11 CONNECTOR 8P
C742 ~=©1-124-902-00 ELECT 0.47uF 20% 50V * ON703 1-695-152-11 CONNECTOR 6P
C743. = 1-161-379-00 CERAMIC 0.01uF 20% 25V * (N704 1-580-046-11 CONNECTOR 2P
0744 ~=1-124-472-11 ELECT 470uF 20% 10V * CN705 1-695-056-11 PLUG, CONNECTOR 6P
C745 1-162-207-31 CERAMIC 22PF 5% 50V
* CN706 1-695-056-11 PLUG, CONNECTOR 6P
C746 = 1-162-207-31 CERAMIC 22PF 5% ~©=— 5 0V * (N707 1-695-058-11 CONNECTOR 29P
C747: 1-126-176-11 ELECT 220uF 20% 10V
C748 1-161-379-00 CERAMIC O.0iuF 20% 25V < DIODE >
C749 =: 1-162-219-31 CERAMIC §8PF 5% = S0V
C750 1-162-219-31 CERAMIC 68PF 5%) OV D701 + 8-719-107-94 DIODE 188202-1
D702 «= 8-719-107-94 DIODE 188202-1
C751 © 1-162-294-31 CERAMIC 0.001uF 10% 50V D703 = 8-719-107-94 DIODE 188202-1
C752 = 1-124-443-00 ELECT 100uF 20% 10V D704 «=8-719-107-94 DIODE 188202-1
C753 = 1-162-199-31 CERAMIC 10PF 5% =. S0V D705 8-719-107-94 DIODE 18S202-1
C754 1-162-199-31 CERAMIC 10PF 5% = S0V
C755 = 1-124-903-11 ELECT luF 20% 50V D706 =©8-719-107-94 DIODE 188202-1
D707 ~=—- 8-719-107-94 DIODE 1S88202-1
C756 1-124-360-00 ELECT 1000uF 20% 16V D708 ~=©8-719-107-94 DIODE + 18S202-1
C757 = 1-162-292-31 CERAMIC 680PF 10% 50V
C758 = 1-162-215-31 CERAMIC 47PE 5% = oS0V < IC >
C759 =1-162-215-31 CERAMIC 47PF 5% = S0V
C760 1-124-443-00 ELECT 100uF 20% 10V 1¢701 8-752-055-04 IC CXA1081S
1C702 8-752-032-33 IC CXA1182S
C762 1-162-294-31 CERAMIC 0.00iuF 10% 50V 1C703 8-752-328-46 IC CXD1130Q
C763. = 1-161-379-00 CERAMIC 0.01uF 20% 25V 1C704 8-759-076-43 IC GM76C28
C764 = 1-124-443-00 ELECT 100uF 20% 10V 1¢705 8-752-819-88 IC CXP5084-624Q
C765 1-162-282-31 CERAMIC 100PF 10% 50V
C766 «= 1-162-282-31 CERAMIC 100PF 10% 50V 1¢706 8-759-501-65 IC BA6294
1€707 8-759-501-65 IC BA6294
C767 = 1-161-379-00 CERAMIC Q.0luF 20% 25V 1C708 8-759-148-89 IC uPD6376CX
C768 = 1-161-379-00 CERAMIC 0.01uF 20% 25V 1¢709 8-759-076-52 IC GL4558
C769 =1-161-379-00 CERAMIC 0.01uF 20% 25V 1¢710 8-759-076-44 IC KIA7039P
C770 =1-161-379-00 CERAMIC O.0luF 20% 25V ;
C771 «=: 1-124-$03-11 ELECT luF 20% SOV 1¢712 8-759-076-52 IC GL4558
C772 ~=1-124-903-11 ELECT luF 20% 50V < TRANSISTOR >
C773 «= 1-161-375-00 CERAMIC 0.0022uF 20% 50V
C774 =: 1-161-375-00 CERAMIC 0.0022uF 20% 50V Q701 8-729-201-53 TRANSISTOR 2SA1015-GR
C775 = 1-162-294-31 CERAMIC 0.001uF 10% 50V Q702 8-729-206-21 TRANSISTOR RN1003
C776 «= 1-162-294-31 CERAMIC 0.001uF- 10% 50V Q703 8-729-206-21 TRANSISTOR RN1003
Q704 8-729-281-53 TRANSISTOR 2SC1815-GR
C777 =: 1-162-215-31 CERAMIC 47PF 5% = oO0V Q705 8-729-206-28 TRANSISTOR RN1210
C778 = 1-162-215-31 CERAMIC 47PE 5% 50V
C779 = 1-124-443-00 ELECT 100uF 20% 10V Q706 8-729-900-63 TRANSISTOR DTA124ES
C780 «= 1-124-903-11 ELECT luF 20% 50V Q708 8-729-201-53 TRANSISTOR 2SA1015-GR
