Sony CFD-50 - Exploded Views; Front Panel and Tuner Board Section

NOTE:
No.
PWN
ONO
The mechanical parts with no reference
number in the exploded views are not
supplied.
The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
Items marked “*"’ are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
SECTION 7
EXPLODED VIEWS
@ Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
Color Indication of Appearance Parts
Example:
(RED) ...KNOB, BALANCE (WHITE)
+
t
Cabinet's Color Parts’ Color

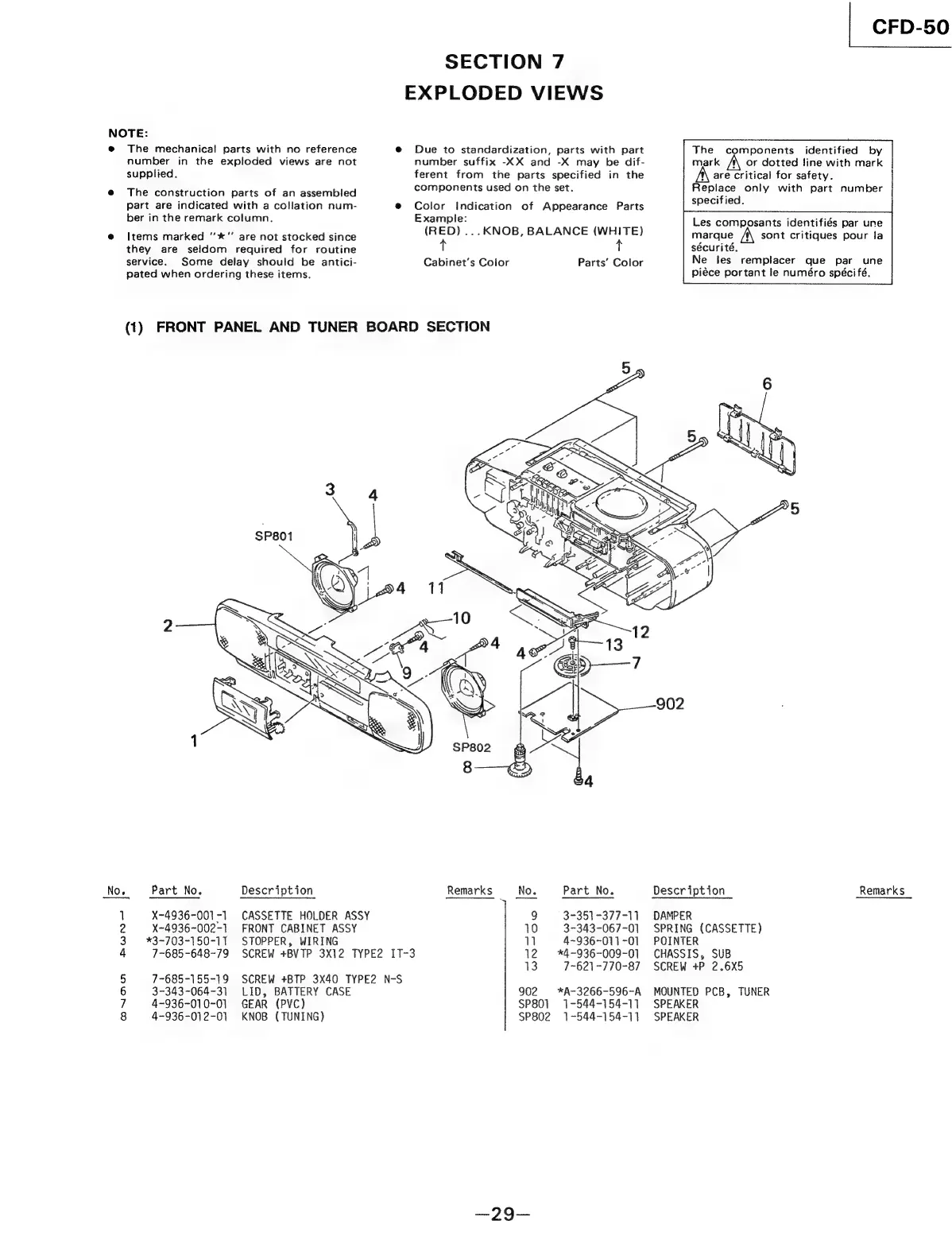

(1) FRONT PANEL AND TUNER BOARD SECTION
CFD-50
The components
mark
identified by
or dotted line with mark
are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiques pour la
sécurité.
Ne les remplacer que par une
piece portant ie numéro spécifé.
Part No. Description Remarks No. Part No.
X-4936-001-1 CASSETTE HOLDER ASSY 9 = 3-351-377-11
X-4936-002-1 FRONT CABINET ASSY 10 3-343-067-01
*3-703-150-11 STOPPER, WIRING N 4-936-011-01
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 12 *4-936-009-01
13. 7-621-770-87
7-685-155-19 SCREW +BTP 3X40 TYPE2 N-S
3-343-064-31 LID, BATTERY CASE 902 *A-3266-596-A
4-936-010-01 GEAR (PVC) SP801_ 1-544-154-11
4-936~-012-01 KNOB (TUNING) SP802 1-544-154-11
Description
DAMPER
SPRING (CASSETTE)
POINTER
CHASSIS, SUB
SCREW +P 2.6X5
MOUNTED PCB, TUNER
SPEAKER
SPEAKER
Remarks
