Sony CFD-50 - Optical Block

__ CFD-90
SERVICE
MANUAL
ewe
SUPPLEMENT-1
File this supplement with the service manual.
Subject : KSM-2101 BAN Optical Block Parts
The KSM-210 BAN and KSM-2101 BAN optical blocks were used in the CFD-50, but the Service
Manual only shows the parts for KSM-210 BAN optical block. The type of optical block used in this
model is marked on the optical block's chassis.

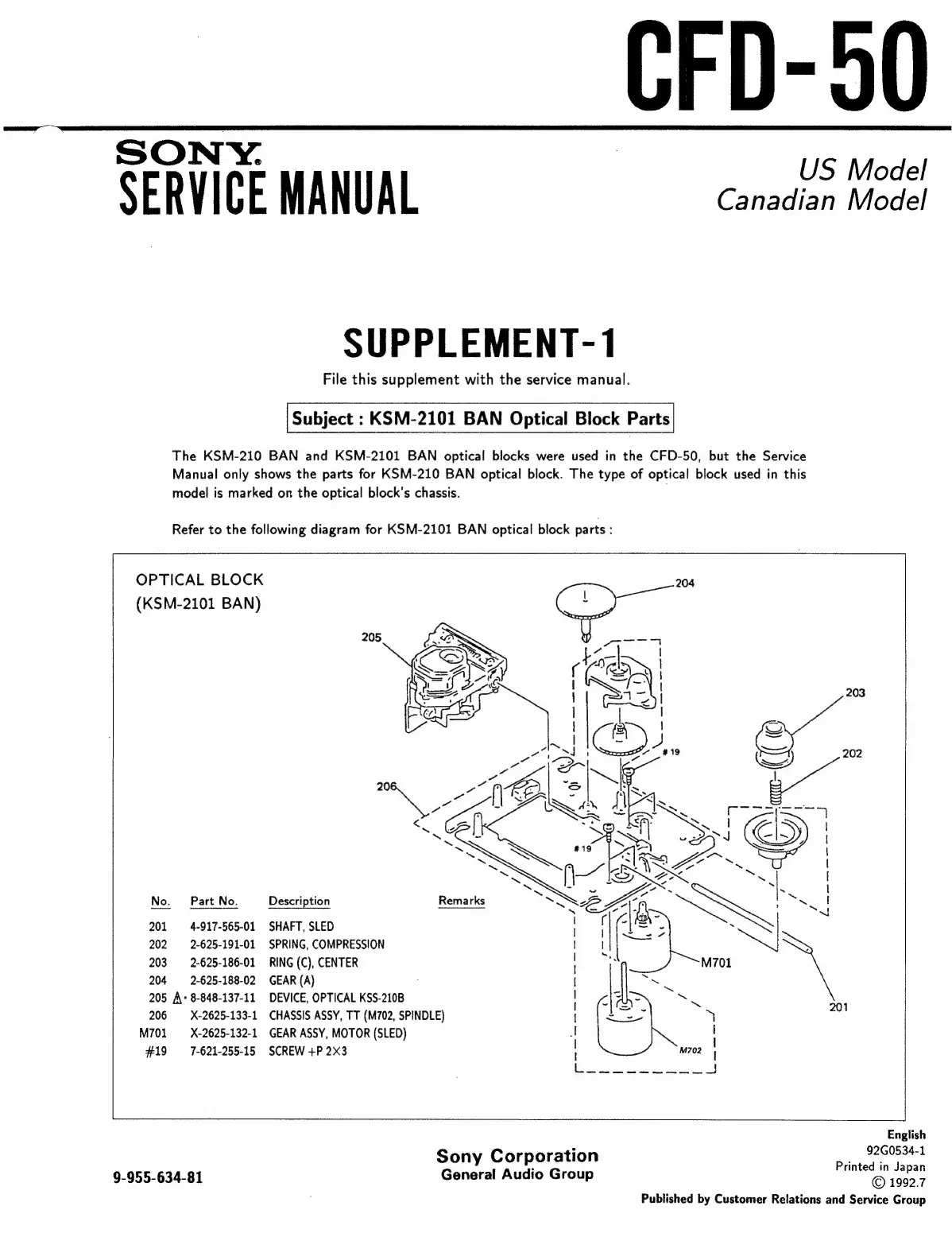

Refer to the following diagram for KSM-2101 BAN optical block parts ;
OPTICAL BLOCK
(KSM-2101 BAN)
Part No. Description Remarks
4-917-565-01 SHAFT, SLED
2-625-191-01 SPRING, COMPRESSION
2-625-186-01 RING (C), CENTER
2-625-188-02 GEAR (A)
8-848-137-11 DEVICE, OPTICAL KSS-210B
X-2625-133-1 CHASSIS ASSY, TT (M702, SPINDLE)
X-2625-132-1 GEAR ASSY, MOTOR (SLED)
7-621-255-15 SCREW +P 2x3
English
Sony
Corporation
92G0534-1
9-955-634-81 General Audio Group a oe
Published by Customer Relations and Service Group
