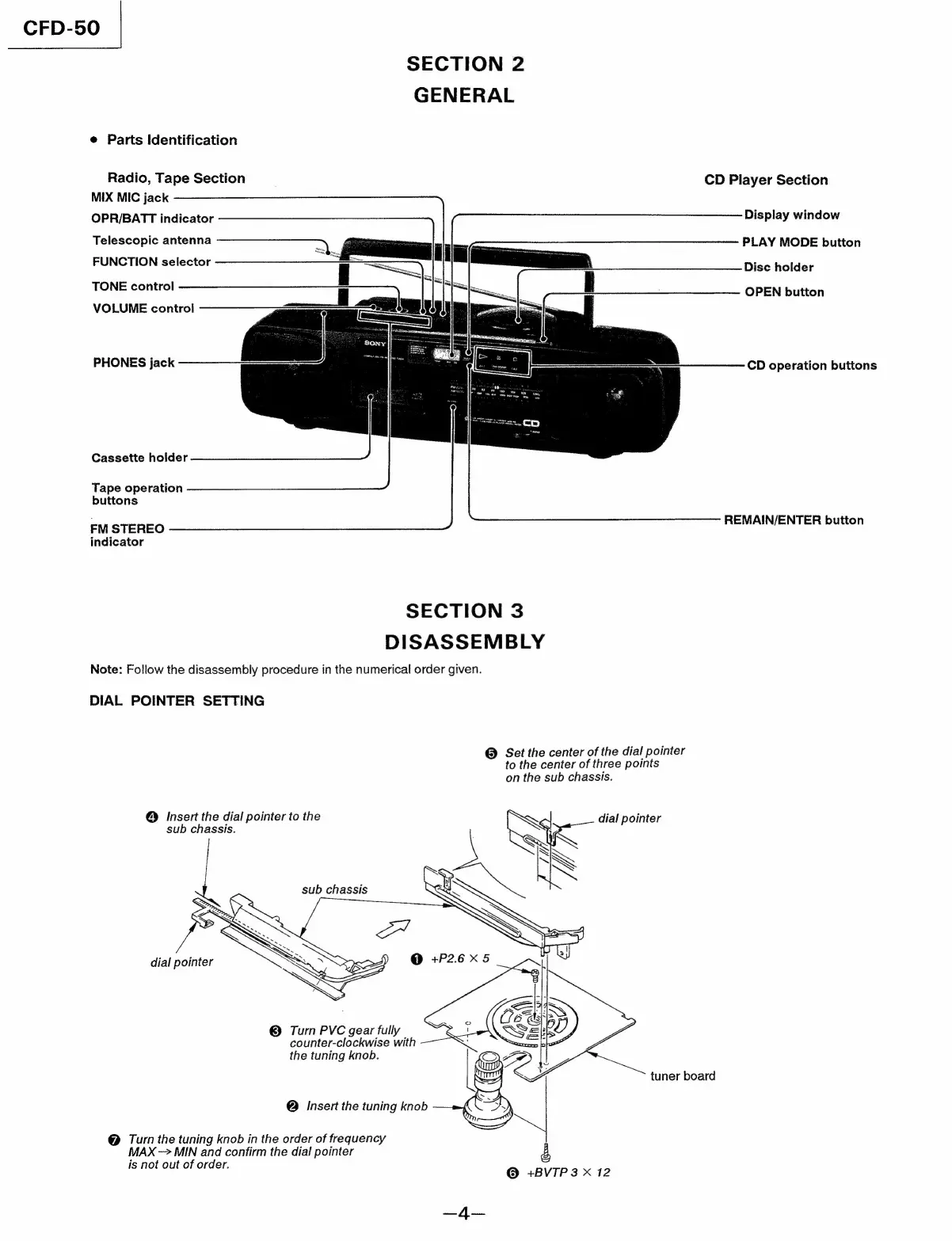

Sony CFD-50 - Disassembly

CFD-50
SECTION 2
GENERAL
e Parts Identification
Radio, Tape Section . CD Player Section
MIX MIC jack
OPRI/BATT indicator
Telescopic antenna
FUNCTION selector
Display window
PLAY MODE button
Disc holder
TONE control OPEN button
VOLUME cont
PHONES jack CD operation buttons
Cassette holder
Tape operation
buttons
-
ae
REMAIN/ENTER
button
indicator
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
DIAL POINTER SETTING
@ Set the center of the dial pointer
to the center of three points
on the sub chassis.
@ til gs pointer to the dial pointer
sub chassis
dial pointer
© Turn PVC gear fully
counter-clockwise with
the tuning knob.
tuner board
@ Insert the tuning knob
@ Turn the tuning knob in the order of frequency
MAX ~-> MIN and confirm the dial pointer
is not out of order.
s @ +BVIP3 X 12
