Sony CFD-50 - Optical Pick-up Block

CFD-50 |
‘No.
201
202
203
205
207
208
211
Note:
The components identi-
fied by mark

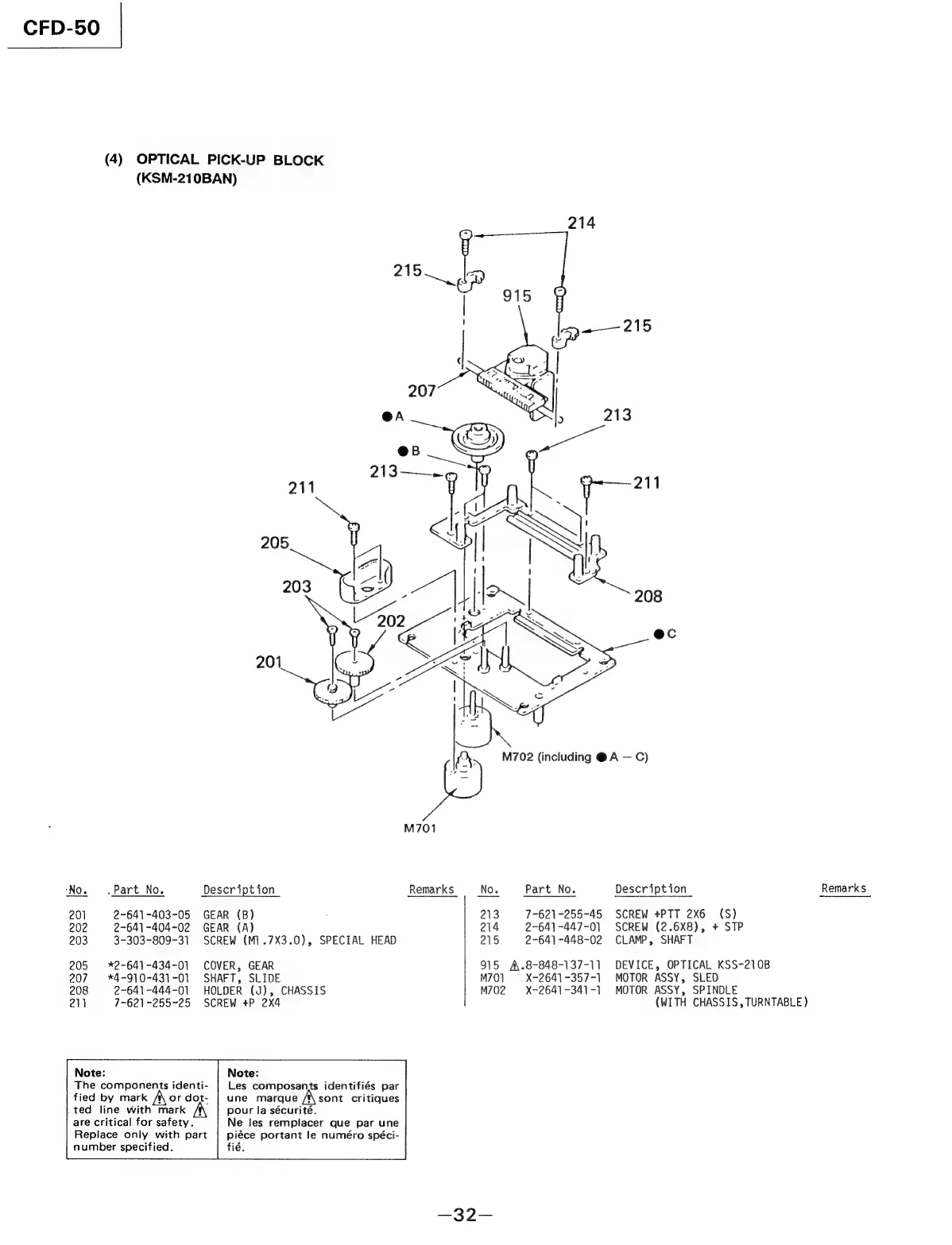

(4) OPTICAL PICK-UP BLOCK
(KSM-210BAN)
. Part No.
2-641 -403-05
2-64) -404-02
3-303-809-31
*2-64) -434-0]
*4-910-431-01
2-641 -444-01
7-621 -255~25
| ted line with mark
are critical for safety.
Replace only with part
number specified.
or dot-
M701
Description Remarks
GEAR (B)
GEAR (A)
SCREW (M1.7X3.0), SPECIAL HEAD
COVER, GEAR
SHAFT, SLIDE
HOLDER (J), CHASSIS
SCREW +P 2X4
Note:
Les composants identifiés par
une marque A\ sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro spéci-
fié.
No. Part No.
213 7-621-255-45
214 2-641 -447-01
215 2-64) -448-02
915 A.8-848-137-11
M701 = X-2641-357-1
M702 = X-2641-341-1
Description
Remarks
SCREW +PTT 2X6 (S)
SCREW (2.6X8), + STP
CLAMP, SHAFT
DEVICE, OPTICAL KSS-210B
MOTOR ASSY, SLED
MOTOR ASSY, SPINDLE
(WITH CHASSIS, TURNTABLE }
