Sony CFS-B31

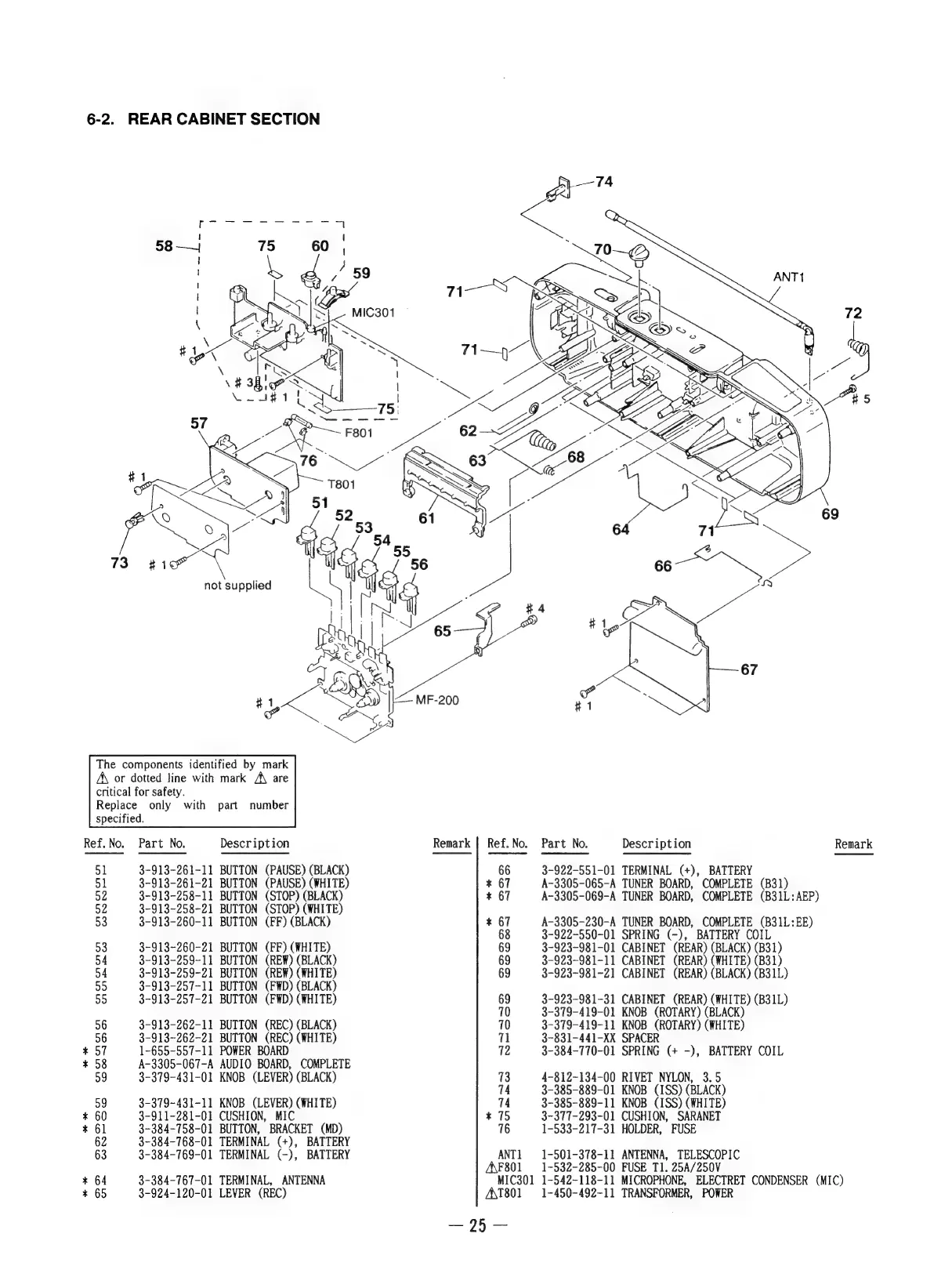

6-2. REAR CABINET SECTION
73
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
Description
BUTTON (PAUSE) (BLACK)
BUTTON (PAUSE) (WHITE)
BUTTON (STOP) (BLACK)
BUTTON (STOP) (WHITE)
BUTTON (FF) (BLACK)
BUTTON (FF) (WHITE)
BUTTON (REW) (BLACK)
BUTTON (REW) (WHITE)
BUTTON (FWD) (BLACK)
BUTTON (FWD) (WHITE)
BUTTON (REC) (BLACK)
BUTTON (REC) (WHITE)
POWER BOARD
A-3305-067-A AUDIO BOARD, COMPLETE
specified.
Ref.No. Part No.
51 3-913-261-11
51 3-913-261-21
52 3-913-258-11
52 3-913-258-21
53 3-913-260-11
53 3-913-260-21
54 3-913-259-11
54 3-913-259-21
55 3-913-257-11
55 3-913-257-21
56 3-913-262-11
56 3-913-262-21
* 57 1-655-557-11
x 58
59 3-379-431-01
59 3-379-431-1]1
* 60 3-911-281-01
* 61 3-384-758-01
62 3-384-768-01
63 3-384-769-01
* 64 3-384-767-01
* 65 3-924-120-01
KNOB (LEVER) (BLACK)
KNOB (LEVER) (WHITE)
CUSHION, MIC
BUTTON, BRACKET (MD)
TERMINAL (+), BATTERY
TERMINAL (-), BATTERY
TERMINAL, ANTENNA
LEVER (REC)
Remark
~— 74
Part No. Description Remark
3-922-551-01 TERMINAL (+), BATTERY
A-3305-065-A TUNER BOARD, COMPLETE (B31)
A-3305-069-A TUNER BOARD, COMPLETE (B31L: AEP)
A-3305-230-A TUNER BOARD, COMPLETE (B31L:EE)
3-922-550-01 SPRING (-), BATTERY COIL
3-923-981-01 CABINET (REAR) (BLACK) (B31)
3-923-981-11 CABINET (REAR) (WHITE) (B31)
3-923-981-21 CABINET (REAR) (BLACK) (B31L)
3-923-981-31 CABINET (REAR) (WHITE) (B31L)
3-379-419-01 KNOB (ROTARY) (BLACK)
3-379-419-11 KNOB (ROTARY) (WHITE)
3-831-441-XX SPACER
3-384-770-01 SPRING (+ -), BATTERY COIL
4-812-134-00 RIVET NYLON, 3.5
3-385-889-01 KNOB (ISS) (BLACK)
3-385-889-11 KNOB (ISS) (WHITE)
3-377-293-01 CUSHION, SARANET
1-533-217-31 HOLDER, FUSE
1-501-378-11 ANTENNA, TELESCOPIC
1-532-285-00 FUSE Tl. 25A/250V
1-542-118-11 MICROPHONE, ELECTRET CONDENSER (MIC)
1-450-492-11 TRANSFORMER, POWER
