Sony CFS-B31

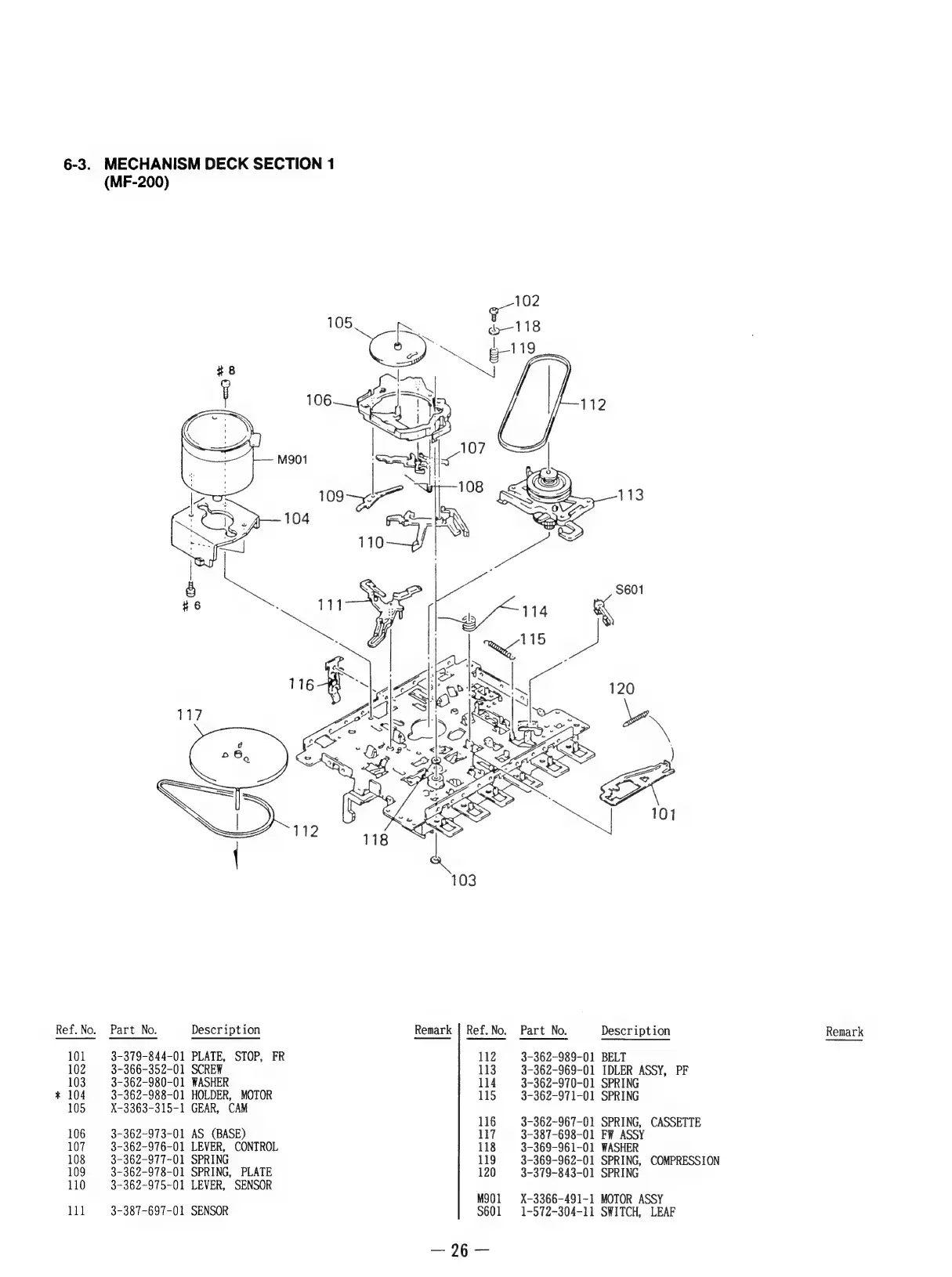

6-3. MECHANISM DECK SECTION 1
(MF-200)
Ref.No. Part No. Description
101 3-379-844-01 PLATE, STOP, FR
102 3-366-352-01 SCREW
103 3-362-980-01 WASHER
104 3-362-988-01 HOLDER, MOTOR
105 X-3363-315-1 GEAR, CAM
106 3-362-973-01 AS (BASE)
107 3-362-976-01 LEVER, CONTROL
108 3-362-977-01 SPRING
109 3-362-978-01 SPRING, PLATE
110 3-362-975-01 LEVER, SENSOR
lll 3-387-697-01 SENSOR
Remark | Ref. No.
Part No.
3-362-989-01
3-362-969-01
3-362-970-01
3-362-971-01
3-362-967-01
3-387-698-01
3-369-961-01
3-369-962-01
3-379-843-01
X-3366-491-1
1-572-304-11
a
Description Remark
BELT
IDLER ASSY, PF
SPRING
SPRING
SPRING, CASSETTE
FW ASSY
WASHER
SPRING, COMPRESSION
SPRING
MOTOR ASSY
SWITCH, LEAF
