SECTION
2
DISASSEMBLY
Note
:
Follow
the
disassembly
procedure
in
the
numerical
order
given.

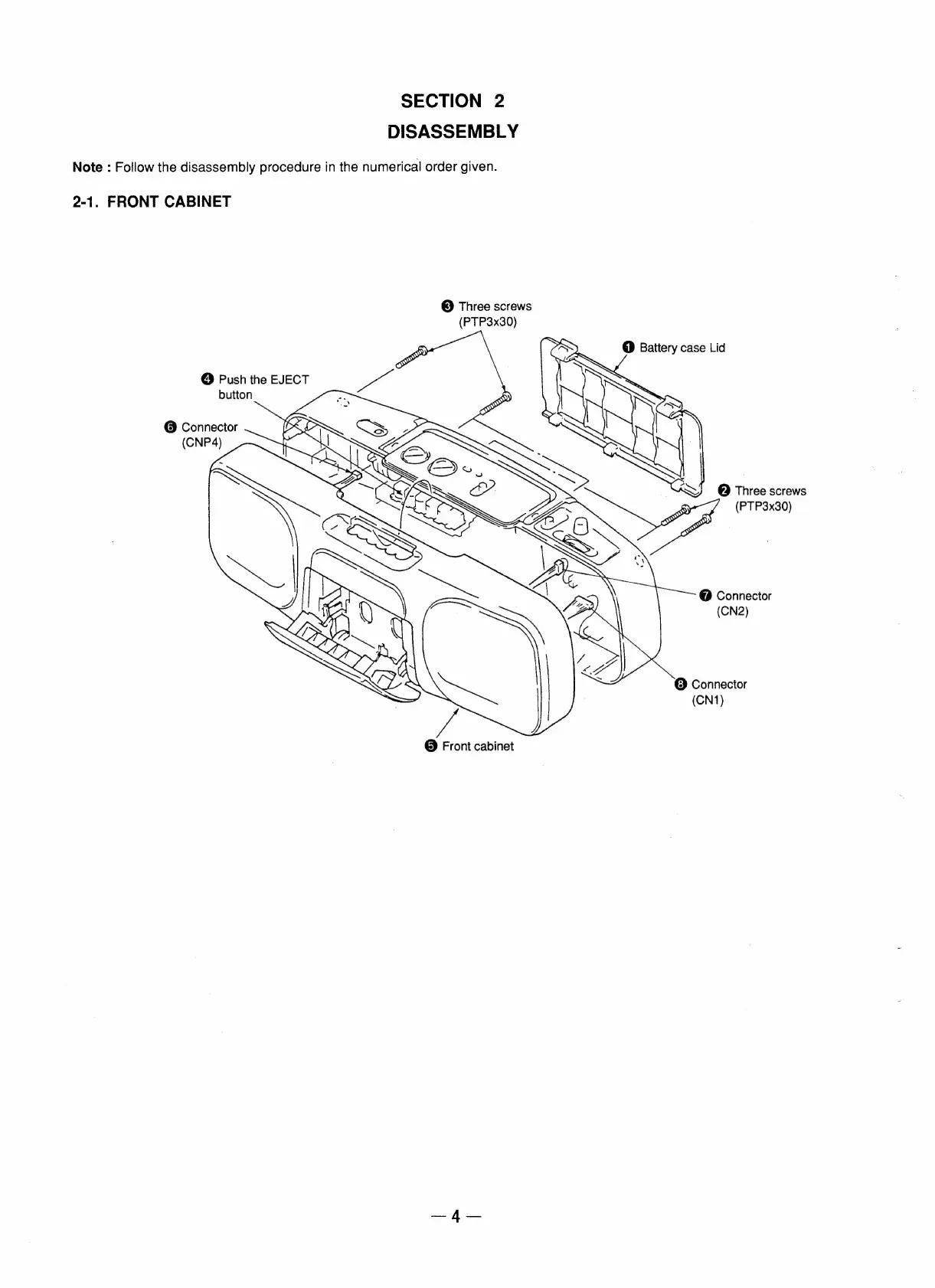

2-1.
FRONT
CABINET
@
Three
screws
(PTP3x30)
@
Push
the
EJECT
button
@
Connector
(CNP4)
@
Three
screws
OF
(PTP3x30)
@
Connector
(CN2)
©
Connector
(CN1)
@
Front
cabinet
3
5
Table of Contents
Table of Contents
2
Section 2. Disassembly
4
Section 3. Mechanical Adjustments
5
Section 4. Electrical Adjustments
5
Diagrams
8
IC Pin Function
8
10901 WPD1724G LCD Drive/Control
8
Printed Wiring Board - Tuner/Lcd Section
10
Schematic Diagram -Tuner/Lcd Section
11
Schematic Diagram - Audio/Power Section
13
Section 6 Exploded Views
14
Front Cabinet Section 0.0
14
Rear Cabinet Section
15
Mechanism Deck Section 1 (MF-200)
16
Section 7. Electrical Parts List
18
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Sony CFS-B31 and is the answer not in the manual?
Ask a question
Sony CFS-B31 Specifications
General
Brand
Sony
Model
CFS-B31
Category
Cassette Player
Language
English
