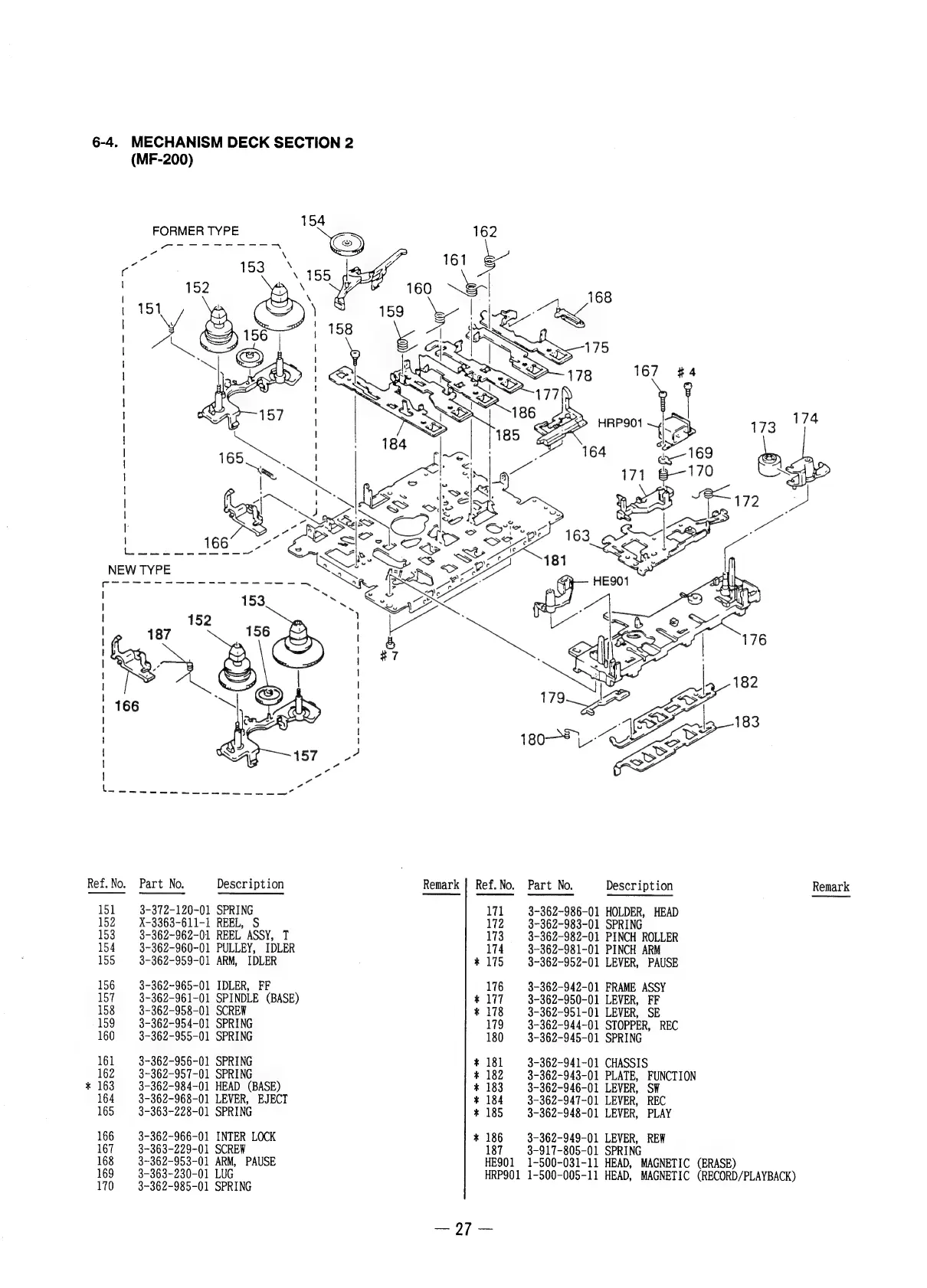

Sony CFS-B31 - Mechanism Deck 2 Exploded View; MF-200 Cassette Mechanism Parts

6-4. MECHANISM DECK SECTION 2
(MF-200)
FORMER TYPE
Part No.
3-372-120-01 SPRING
X-3363-611-1 REEL, S
3-362-962-01 REEL ASSY, T
3-362-960-01 PULLEY, IDLER
3-362-959-01 ARM, IDLER
3-362-965-01 IDLER, FF
3~362-961-01 SPINDLE (BASE)
3-362-958-01 SCREW
3-362-954-01 SPRING
3-362-955-01 SPRING
3-362-956-01 SPRING
3-362-957-01 SPRING
3-362-984-01 HEAD (BASE)
3-362-968-01 LEVER, EJECT
3-363-228-01 SPRING
3-362-966-01 INTER LOCK
3-363-229-01 SCREW
3-362-953-01 ARM, PAUSE
3-363-230-01 LUG
3-362-985-01 SPRING
Ref. No.
Te 3 2 3H 2 se *
-«
186
Part No.
3-362-986-01
3-362-983-01
3-362-982-01
3-362-981-01
3-362-952-01
3-362-942-01
3-362-950-01
3-362-951-01
3-362-944-01
3-362-945-01
3-362-941-01
3-362-943-01
3-362-946-01
3-362-947-01
3-362-948-01
3-362-949-01
3-917-805-01
87
HE901 1-500-031-11
HRP901 1-500-005-11 HEAD, MAGNETIC (RECORD/PLAYBACK)
Description Remark
HOLDER, HEAD
SPRING
PINCH ROLLER
PINCH ARM
LEVER, PAUSE
FRAME ASSY
LEVER, FF
LEVER, SE
STOPPER, REC
SPRING
CHASSIS
PLATE, FUNCTION
LEVER, S¥
LEVER, REC
LEVER, PLAY
LEVER, REW
SPRING
HEAD, MAGNETIC (ERASE)
