Sony DAV-DZ280 - Connecting the TV; SCART and HDMI Cable Connections

16
GB
Getting Started
Depending on the jacks on your TV, select the connection method.
Method 1: SCART (EURO AV) cable (A) connection
This connection sends both video and audio signals.
Method 2: HDMI* cable (B) and SCART (EURO AV) cable (A) connection
If your TV has an HDMI jack, connect to the TV both with an HDMI cable and SCART (EURO AV)
cable. Picture quality will be improved compared to using only the SCART (EURO AV) connection.
When connecting with the HDMI cable, you need to select the type of output signal (page 22).
To view images from the DIGITAL MEDIA PORT adapter, you need to connect to the TV with the
SCART (EURO AV) cable. Video signals from the DIGITAL MEDIA PORT adapter are not output
via the HDMI OUT jack.
* HDMI (High-Definition Multimedia Interface)
Ti
p
• When you connect the system and a TV with the “BRAVIA” Sync function via an HDMI cable, the “BRAVIA”
Sync function is enabled. In this case, set [CONTROL FOR HDMI] in [HDMI SETUP] to [ON] (page 47).
Connecting the TV
CENTER
S
U
B
W
O
O
F
E
R
FRONT R FRONT L
SUR R
SUR L
S
P
E
A
K
E
R
H
D
M
I O
U
T
S
P
E
A
K
E
R
E
U
R
O
A
V
O
U
TPUT(TO
T
V
)
COAXIAL 75
FM
A
N
T
E
N
N
A
D
M
P
O
R
T
DC5V
0.7A MAX

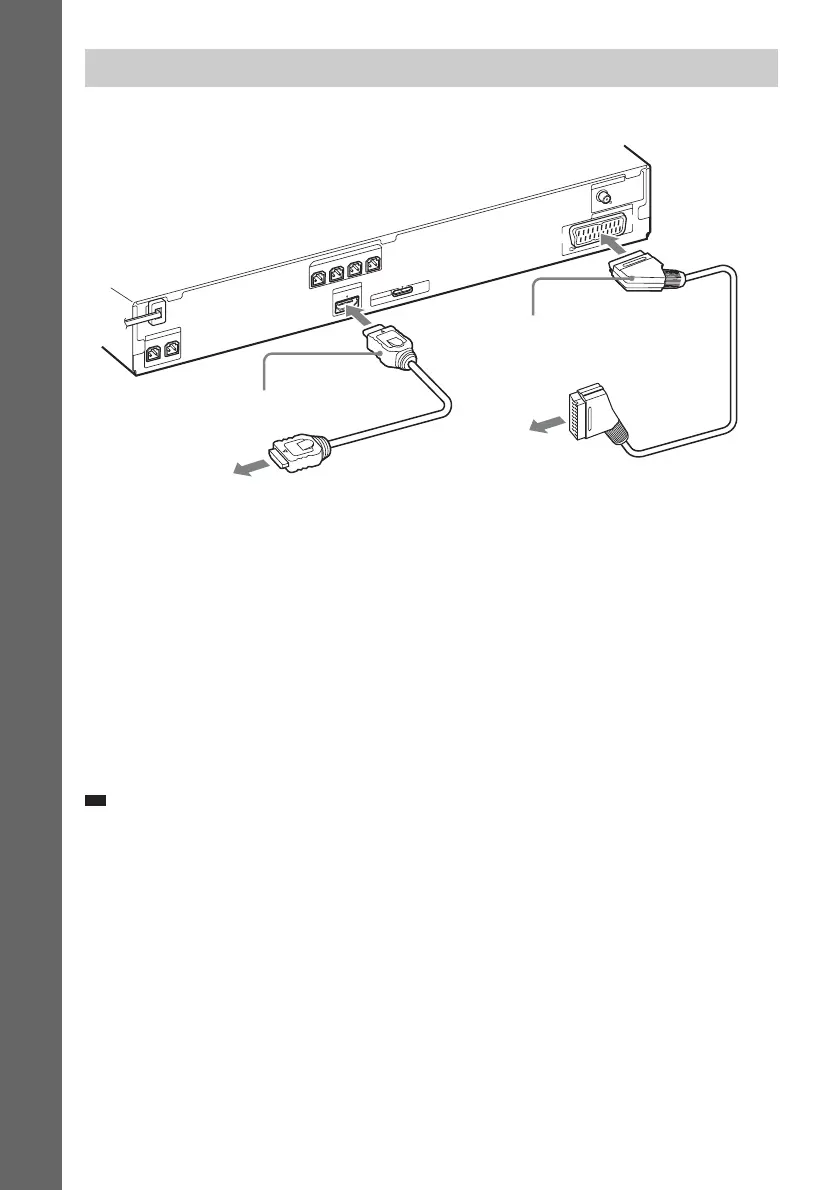

To the HDMI IN jack of the TV.
To the SCART (EURO AV)
jack of the TV.
A SCART (EURO AV) cable
(not supplied)
B HDMI cable (not supplied)
