Sony DCR-PC1000 - Circuit Boards Location

2-8
2. DISASSEMBLY
2. DISASSEMBLY
DCR-PC1000/PC1000E

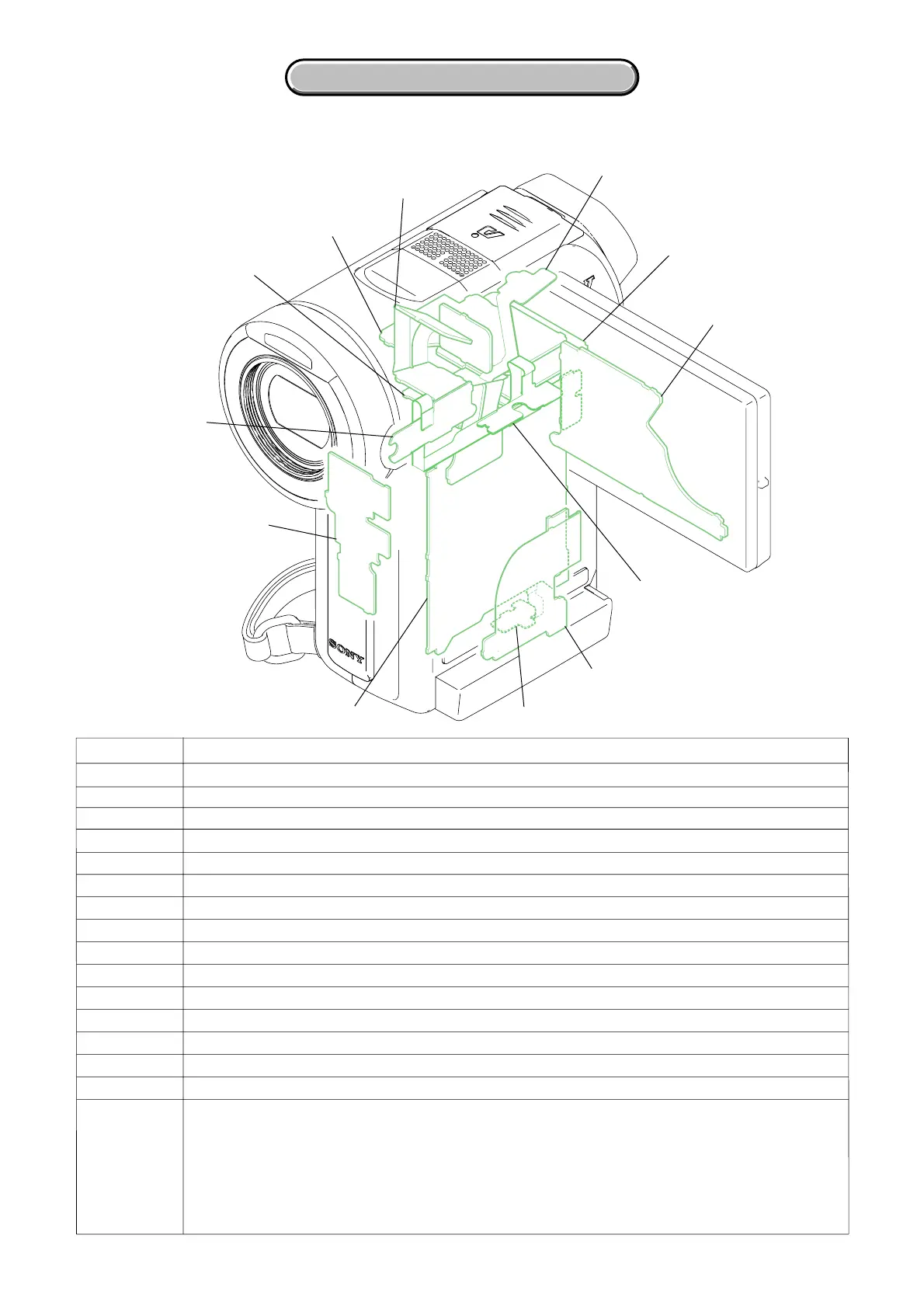

2-3. CIRCUIT BOARDS LOCATION
JK-285
VJ-001
FR-229
FP-166
FP-236
CD-569
VC-398
CK-149
FP-164
PD-252
FP-167
FP-220
NAME
FUNCTION
PITCH/YAW/IR SENSOR
MULTI CONNECTOR, LANC JACK
3 CMOS IMAGER
SWITCH, CONNECTOR
CONNECTOR, DC JACK
EJECT SW
MS CONNECTOR
PANEL O/C, REVERSE SW
INT MIC
RGB DRIVE, BACKLIGHT DRIVE
JK-285
EVF, MIC, RELAY
VJ-001
FP-236
FP-220
FP-166
LITHIUM BATTERY
FP-165
FR-229
CD-569
CAMERA A/D CONV., LENS DRIVE, CAMERA SIGNAL PROCESS, 128Mbit SDRAM,
D/A CONV., MPEG MOVIE/DIGITAL STILL PROCESS, HI/DIGITAL STILL CONTROL, 64Mbit
SDRAM, 64K EEPROM, DV/RF SIGNAL PROCESS, DV INTERFACE, REC/PB AMP, WIDE
VIDEO PROCESS, VIDEO, AUDIO I/O 1, ADC/DAC, SHOE MIC I/F, ADC, DRUM/CAPSTAN/
LOADING DRIVE, CAMERA/MECHA CONTROL, HI CONTROL, MIC AMP, EVF DRIVER,
USB I/F, PITCH/YAW SENSOR AMP, CONNECTOR, DC IN, CHARGE, DC/DC CONVERTER
VC-398
CK-149
FP-164
PD-252
FP-167
VC-PD RELAY
FP-168
BATTERY TERMINAL
FP-170
VC-PJ RELAY
FP-172
