5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC1000/PC1000E

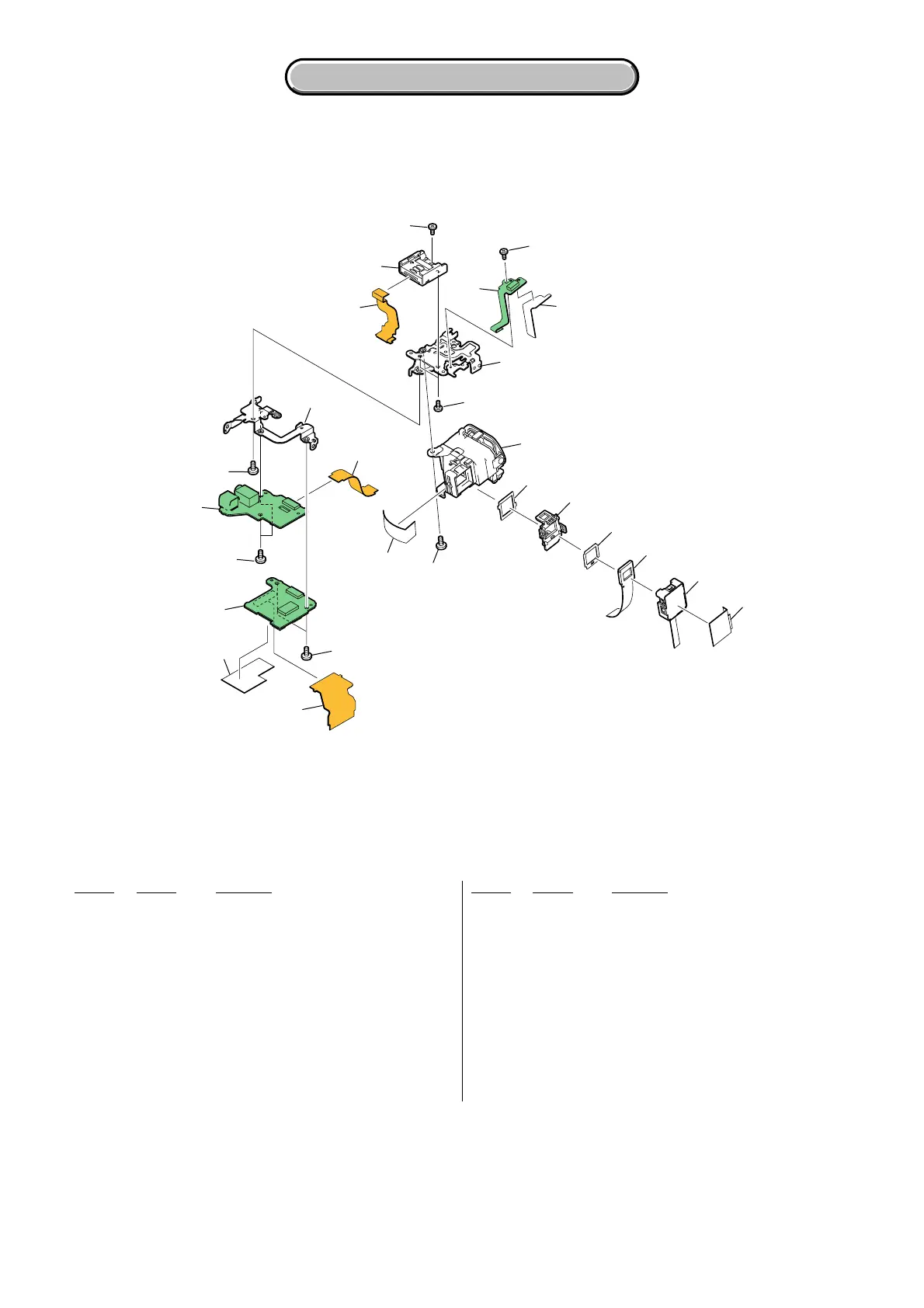

5-1-6. EVF SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
251 1-865-893-11 FP-172 FLEXIBLE BOARD
252 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
253 A-1099-863-A VJ-001 BOARD, COMPLETE
254 A-1099-862-A JK-285 BOARD, COMPLETE
255 1-865-892-11 FP-171 FLEXIBLE BOARD
256 2-584-369-01 PLATE, JK FIXED
257 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
258 1-865-894-11 FP-173 FLEXIBLE BOARD
259 3-080-198-01 SCREW (M1.7), LOCK ACE, P2
260 3-084-150-01 SCREW (M1.4), LOCK ACE, P2
261 A-1099-868-A FP-236 FLEXIBLE BOARD, COMPLETE
262 2-589-470-01 SHEET (MIC), SHIELD
263 2-584-367-01 BRACKET, HOT SHOE
264 X-2050-253-1 LENS ASSY, VF
265 3-941-343-01 TAPE (A)
266 2-560-809-01 CUSHION (1), LCD
267 2-549-194-01 COVER, LCD
268 2-560-810-01 CUSHION (2), LCD
269 3-084-817-11 SCREW (M1.7), SCOTCH GRIP, P2
LCD902 8-753-226-72 LCX059BKE-1
LED902 1-478-911-11 BLOCK, LIGHT GUIDE PLATE (0.3)
