2. DISASSEMBLY
2. DISASSEMBLY
DCR-PC1000/PC1000E

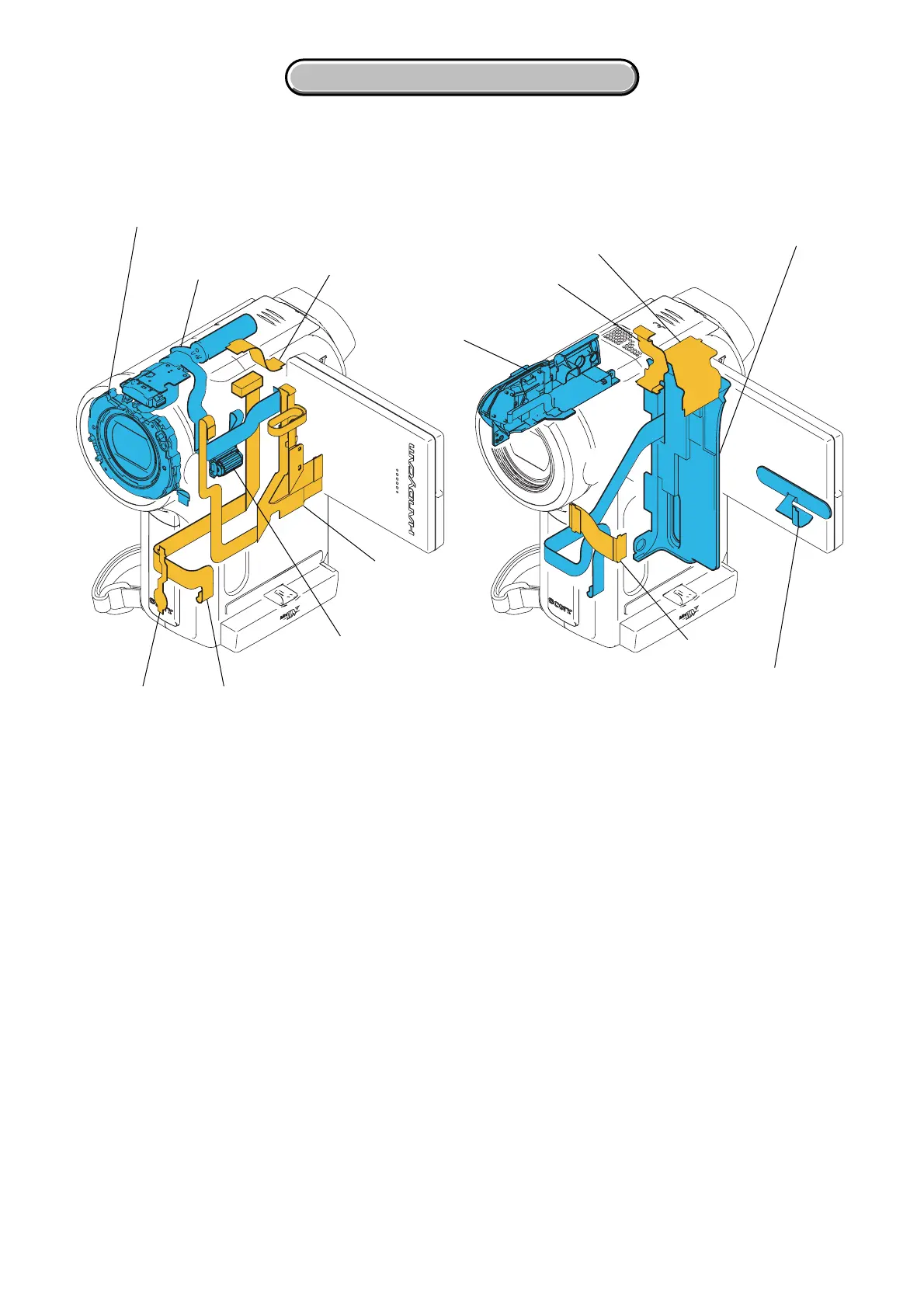

2-4. FLEXIBLE BOARDS LOCATION
The flexible boards contained in the mechanism deck and lens block are not shown.
FP-170FP-165
FP-169
FP-173
FP-168
FP-171
FP-172
MOTOR UNIT
(LENS BARRIER LB11800)
FLASH UNIT
(FL11800)
CONTROL KEY BLOCK
(SB10600)
CONTROL SWITCH BLOCK
(AD11800)
CONTROL SWITCH BLOCK
(PS11800)
CONTROL SWITCH BLOCK
(FK11800)
