Sony DCR-PC1000 - Overall Mechanism Deck Section

5-10
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC1000/PC1000E

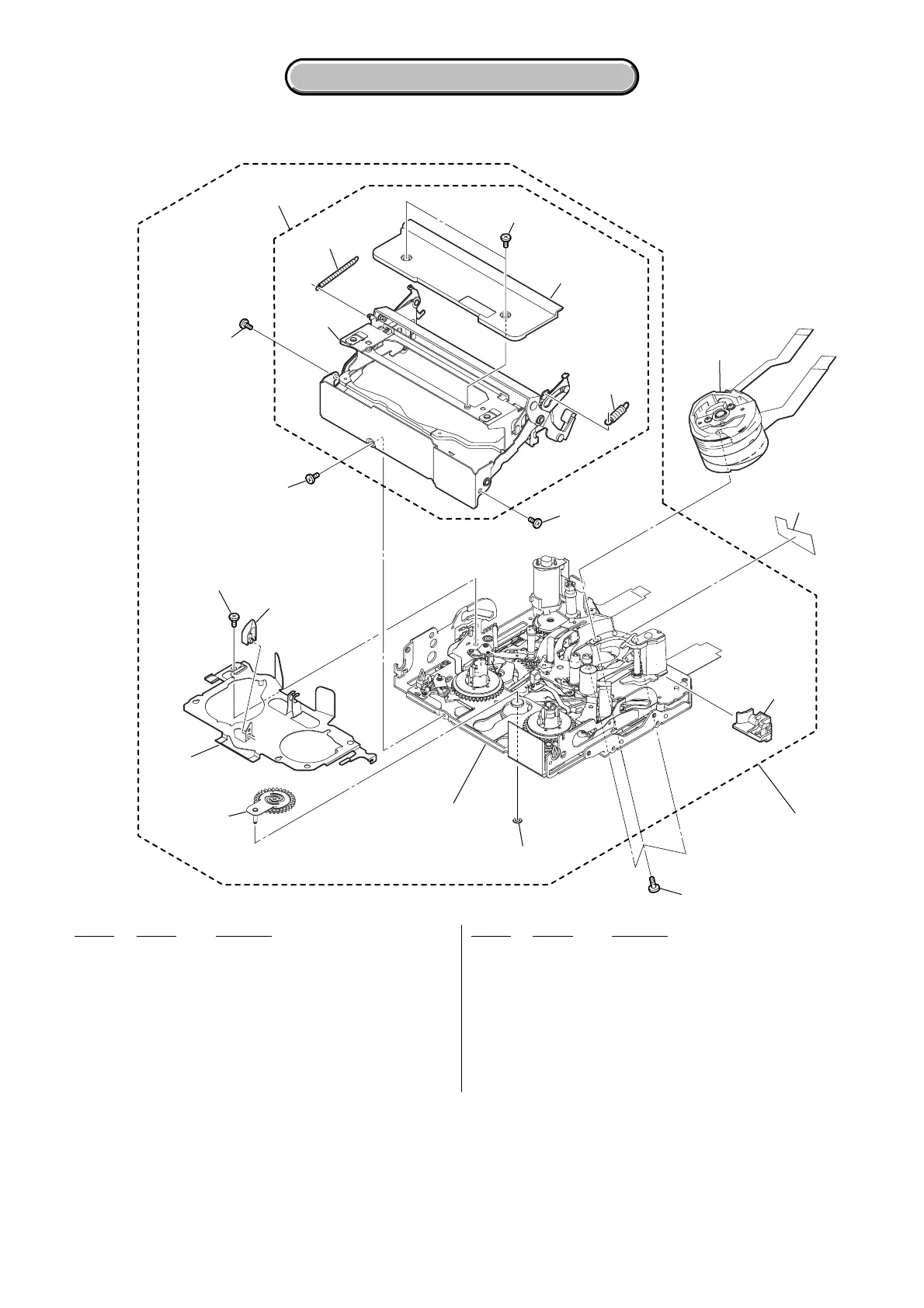

5-1-8. OVERALL MECHANISM DECK SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
701 X-2024-478-1 PENDULUM ASSY
702 2-342-917-01 LED BASE
703 7-627-850-77 SCREW PRECISION +P M1.4X1.8 TYPE3
704 3-079-366-11 RELEASE, REEL LOCK
705 3-703-816-08 SCREW (M1.4X1.4), SPECIAL HEAD
706 X-2024-450-1 COMPARTMENT ASSY, CASSETTE
707 2-342-926-01 SPRING (ARM S), TENSION COIL
708 2-546-417-01 SCREW (M1.4)
709 2-342-933-01 PLATE, TOP
710 2-342-927-01 SPRING (ARM T), TENSION COIL
711 2-541-585-01 SHEET, FLEXIBLE ADHESIVE
712 2-342-918-01 TG6 CATCHER
713 A-1080-997-A MD(N100)SUB ASSY_A
714 3-703-816-13 SCREW (M1.4X2.0), SPECIAL HEAD
715 3-315-414-31 WASHER
M9001 A-1087-172-A DRUM (DEH-33A-R) (SERVICE)
M9001
LS chassis block assembly
(See page 5-11)
708
703
704
701
ns
714
715
712
713
711
705
705
705
709
710
707
702
706
