Sony DCR-PC1000 - Cabinet (R) Section

5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC1000/PC1000E

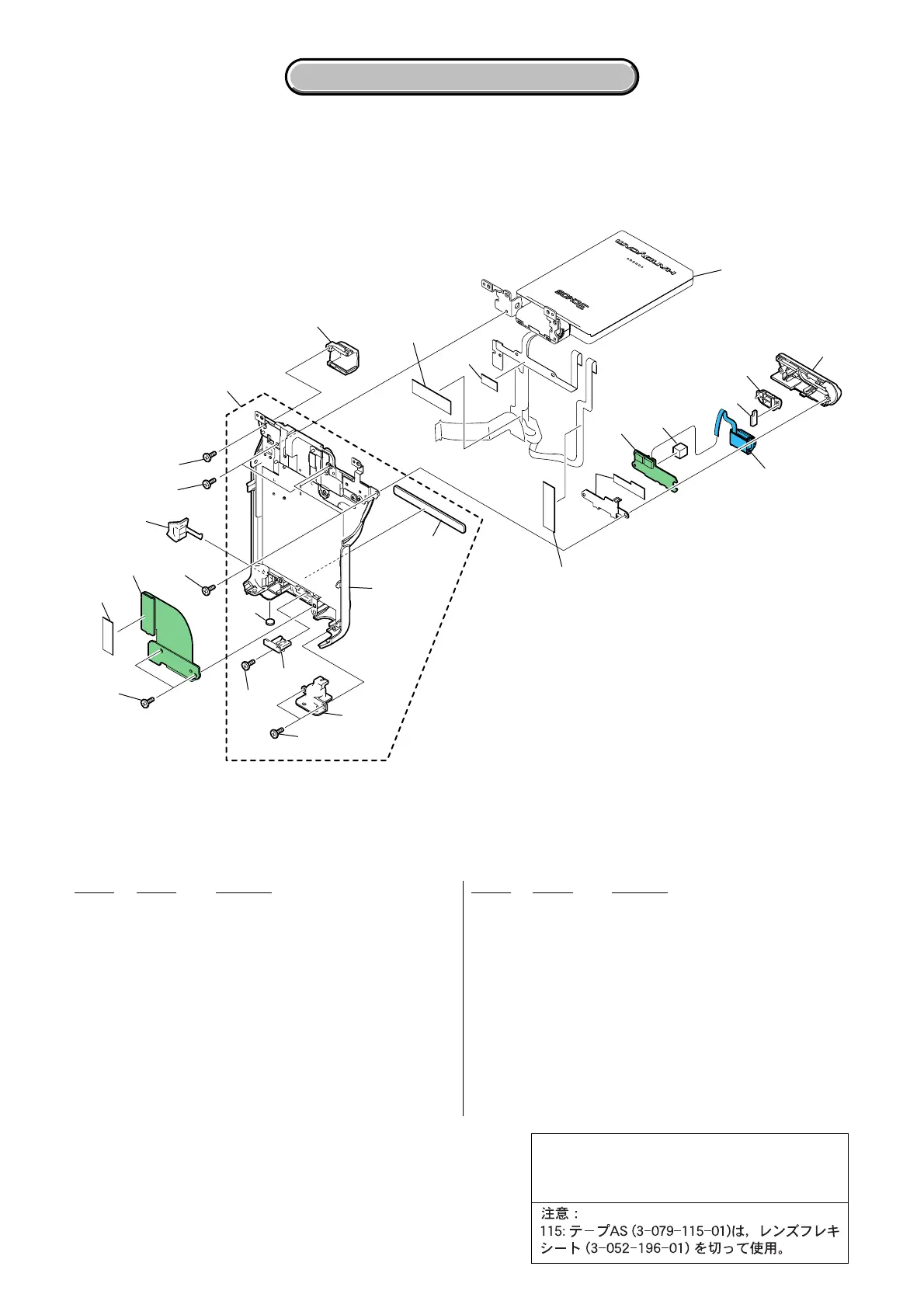

5-1-3. CABINET (R) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
101 3-080-204-01 SCREW, TAPPING, P2
102 2-584-330-01 TRIPOD SCREW
103 2-584-327-01 SPACER, LCD LOCK (BLACK)
103 2-584-327-11 SPACER, LCD LOCK (SILVER)
104 3-969-387-01 FOOT, RUBBER
105 A-1099-865-A FP-164 FLEXIBLE BOARD, COMPLETE
106 2-584-359-01 COVER (DC), JACK (BLACK)
106 2-584-359-11 COVER (DC), JACK (SILVER)
107 X-2050-252-1 CABINET (R) ASSY (B) (BLACK)
107 X-2050-256-1 CABINET (R) ASSY (S) (SILVER)
108 2-584-357-11 COVER (R), HINGE
109 2-584-356-11 COVER (F), HINGE
110 2-584-358-01 BUTTON, ASSIGN
111 1-479-004-11 SWITCH BLOCK, CONTROL (AD11800)
112 2-584-355-01 CUSHION (CK)
113 A-1099-860-A CK-149 BOARD, COMPLETE
114 3-087-376-01 SCREW (M1.7)
115 CAUTION TAPE AS
116 2-589-690-01 SPACER (FP164)
117 2-590-011-01 SHEET (FP220)
118 2-629-203-01 SPACER (CK-M)
119 2-584-333-01 CUSHION, LCD
120 3-078-890-01 SCREW, TAPPING
LCD section
(See page 5-6)
101
120
120
101
101
104
105
116
106
107
108
109
110
118
111
112
117
113
115
115
103
102
119
114
ns
ns
(SIZE : 9mm × 28mm)
(SIZE : 9mm
× 28mm)
CAUTION :
For the part of 115: TAPE AS (3-079-115-01) ,
cut SHEET, LENS FLEXIBLE (3-052-196-01)
into the desired length and use it.
