HELP
DCR-PC1000/PC1000E
HELP

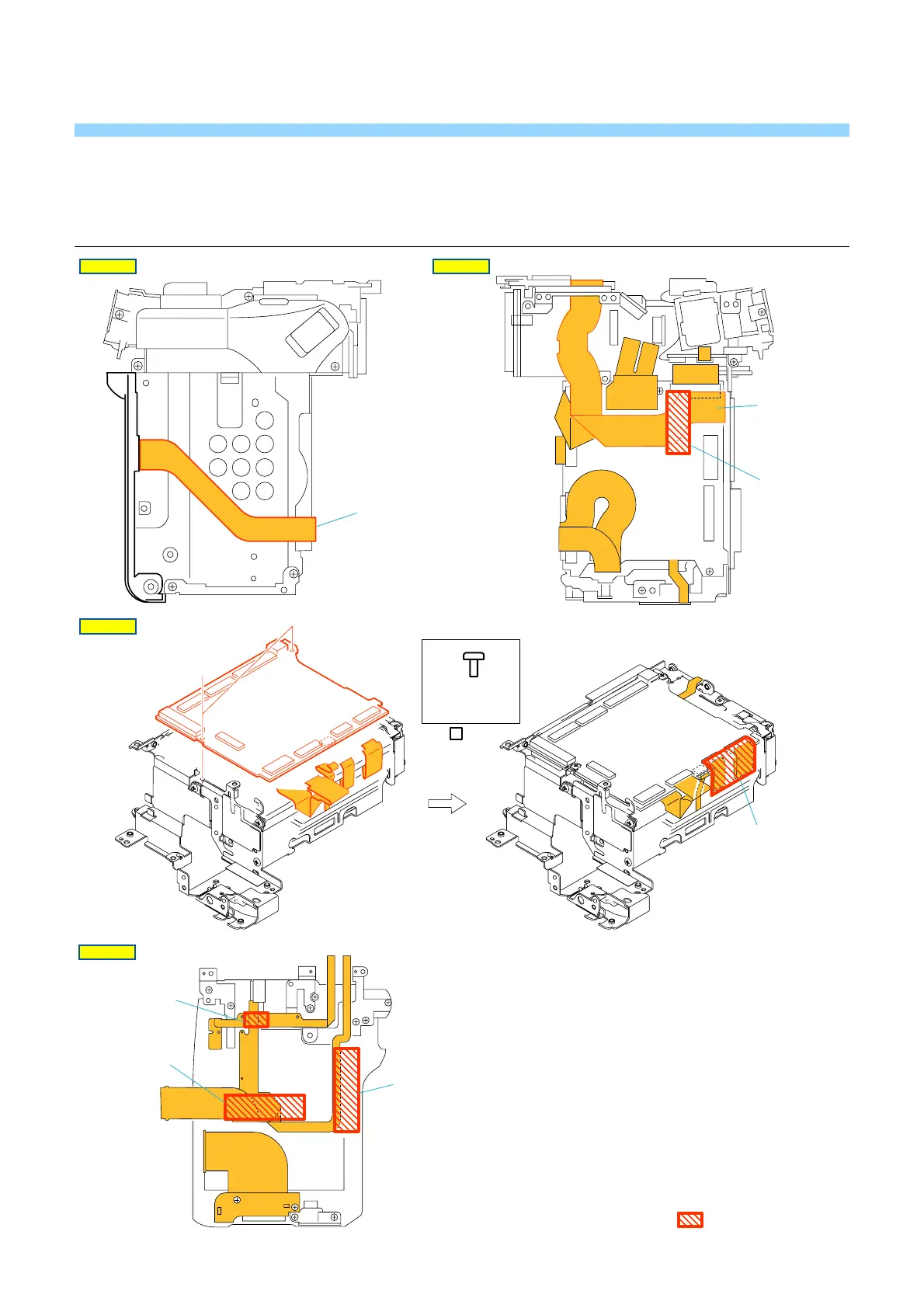

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
HELP 01
HELP 03
HELP 02
MD flexible sheet
Control switch block
(PS11800)
FL11800
HELP 04
Sheet (FP-220)
VC-398
VC-398
D
D
Screw
M1.7x2.5
3-989-735-01
Silver
Tape AS
(SIZE: 9mm
× 28mm
)
Tape AS
(SIZE: 9mm
× 28mm)
Tape AS
(SIZE: 9mm
× 28mm)
Note:
Tapes illustrated as cannot be reused.
Ver 1.2 2005. 09
