31
Automation Operation
• {ASSIGN} for all MTR and Program Bus Assign
buttons.
• {PAN} for all Channel and MTR Pans.
• {FADER} for all Channel, MTR and Aux Return
Faders.
Snapshots
General

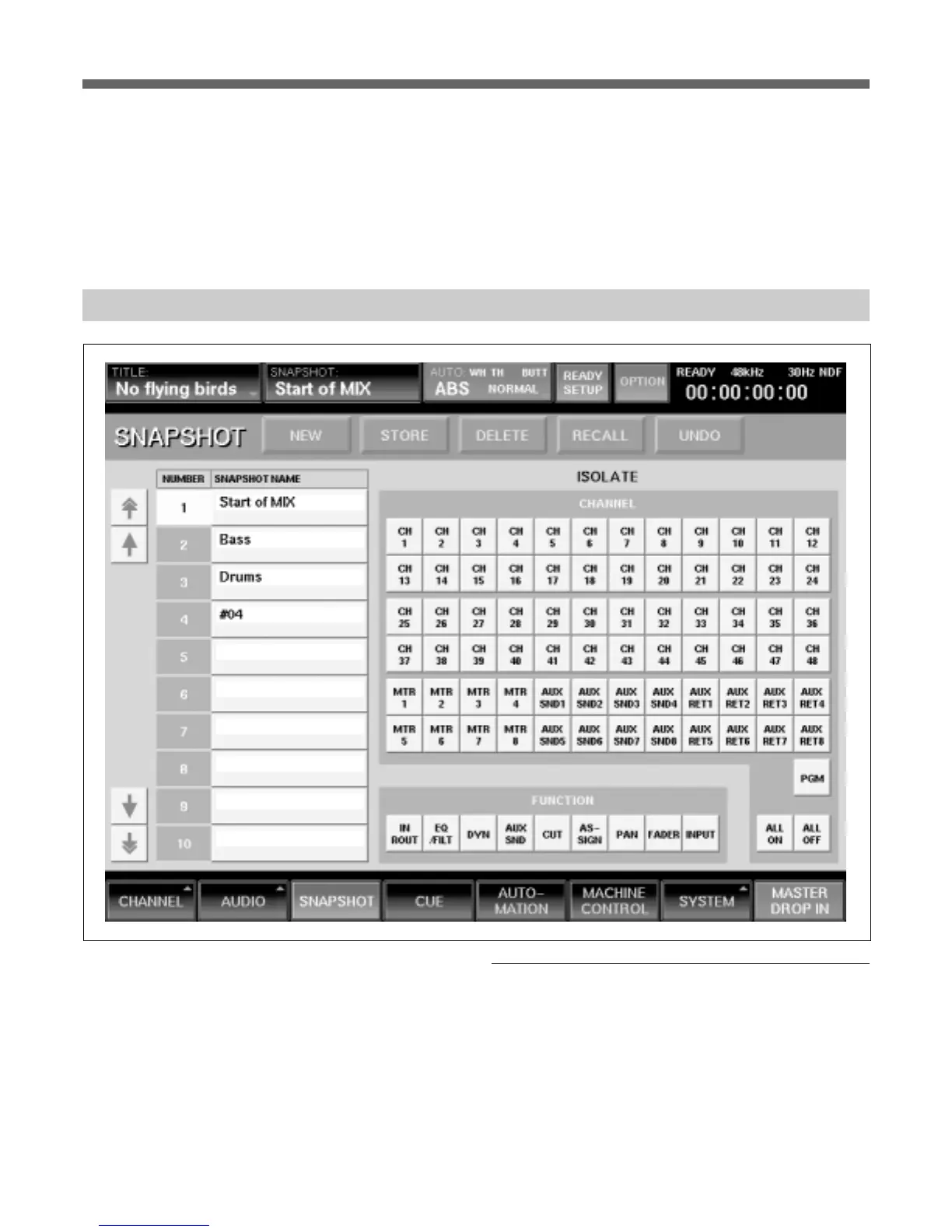

The Snapshots GUI allows static control settings to be
stored and recalled. The settings for the whole mixer
are saved for every Store operation whereas an Isolate
function allows snapshots to be recalled on a selective
basis.
To Save a New Snapshot
1 Touch {SNAPSHOT} at the bottom towards the left
of the LCD for the SNAPSHOT GUI.
2 Whilst the material is either stationary or moving,
touch {NEW} and a new entry will appear in the
SNAPSHOT NAME column. A default number
will be entered automatically.
