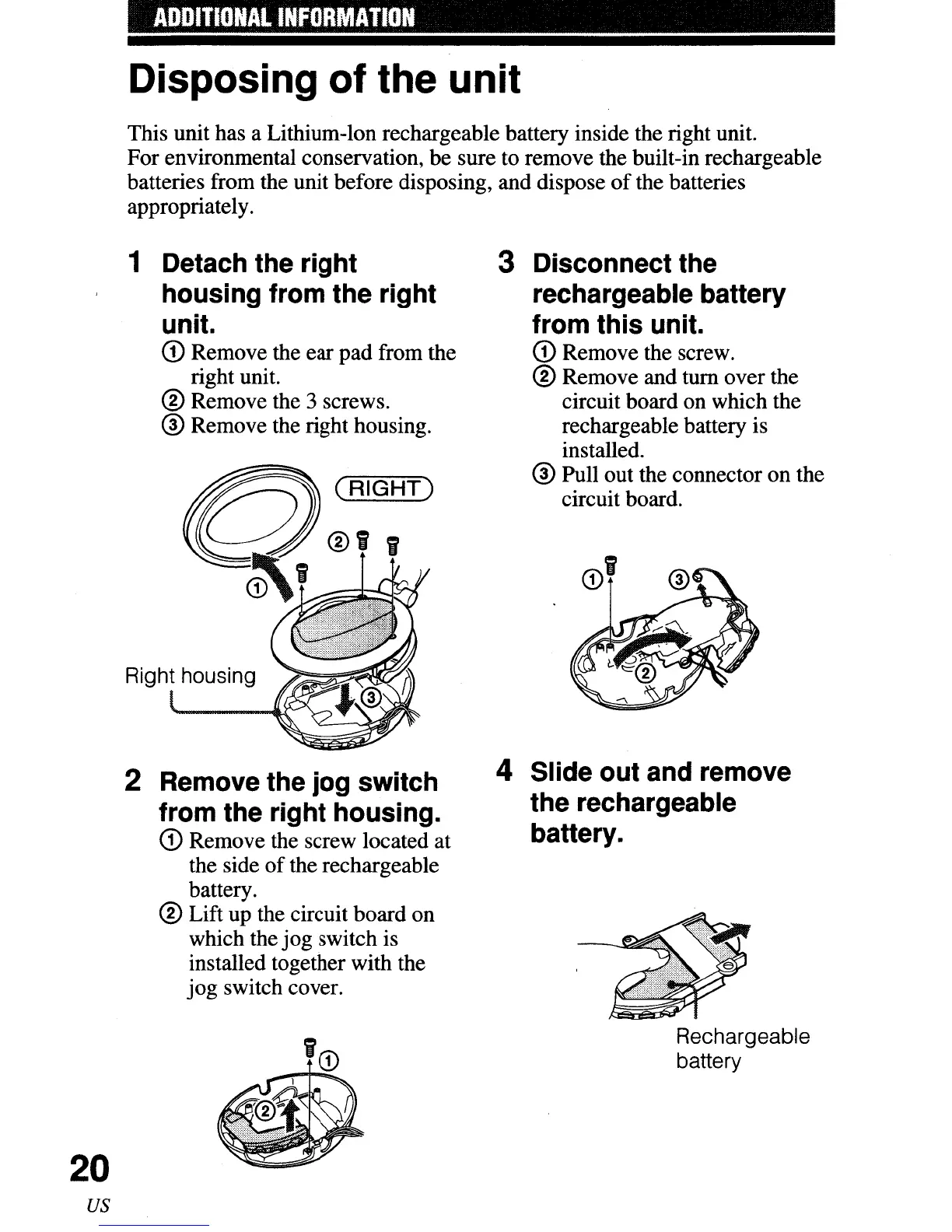

ADDITIONAL
INFORMATION
Disposing of the unit
This unit has a Lithium-Ion rechargeable battery inside the right unit.
For environmental conservation, be sure to remove the built-in rechargeable
batteries from the unit before disposing, and dispose
of
the batteries
appropriately.
20
us
1 Detach the right
housing from the right
unit.
CD
Remove the ear pad from the
right unit.
® Remove the 3 screws.
® Remove the right housing.
(RIGHT)
Right housing
2 Remove the jog switch
from the right housing.
CD
Remove the screw located at
the side
of
the rechargeable
battery.
® Lift up the circuit board on
which the
jog
switch is
installed together with the
jog
switch cover.
3 Disconnect the
rechargeable battery
from this unit.
CD
Remove the screw.
® Remove and turn over the
circuit board on which the
rechargeable battery is
installed.
® Pull out the connector on the
circuit board.
4 Slide out and remove
the rechargeable
battery.
Rechargeable
battery
