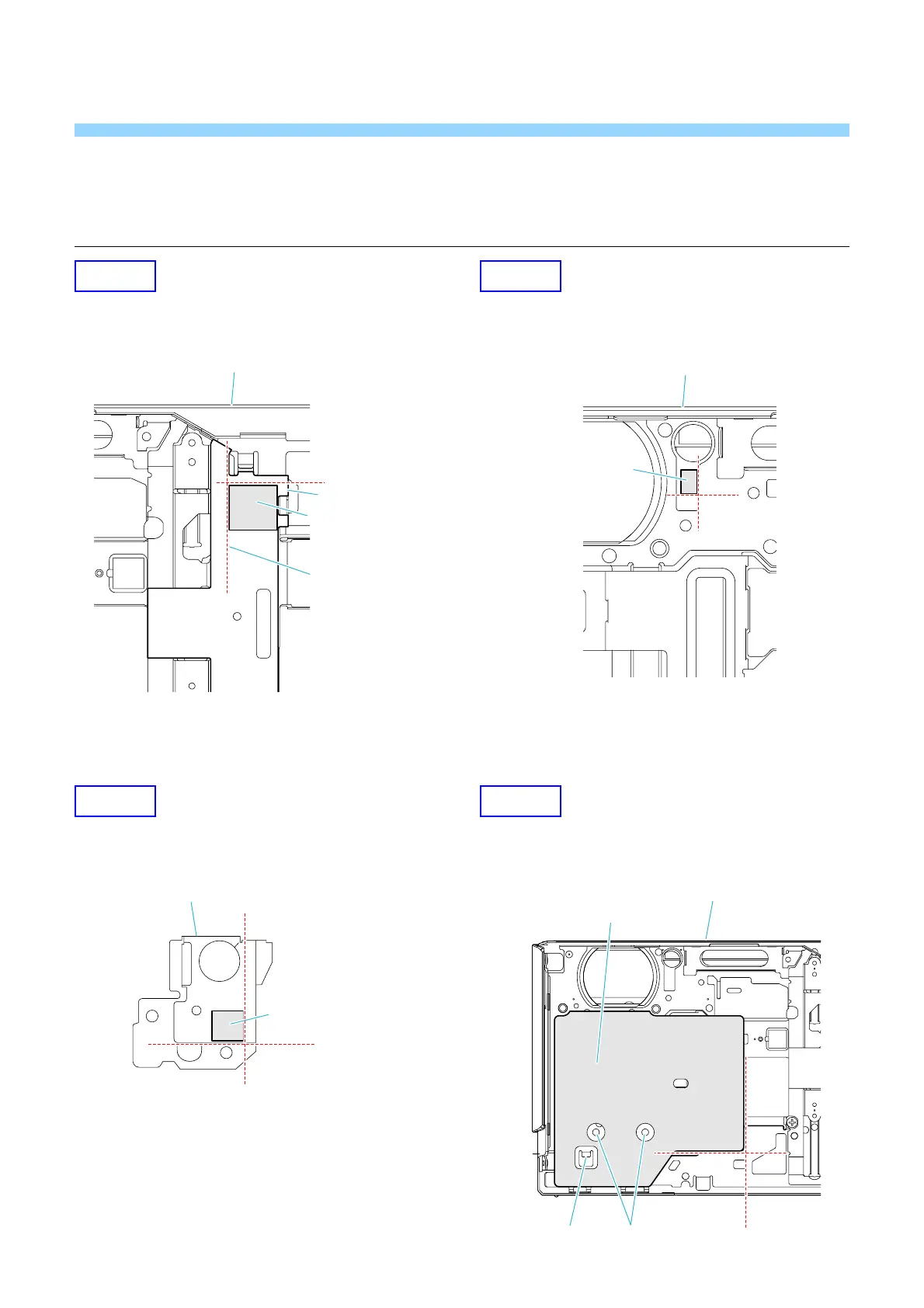

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
FRONT CUSHION
PUTTING POSITION
Front Cushion
Cabinet (Front) Assy
Plate
Scrached line
AF WINDOW ADHESIVE SHEET
PUTTING POSITION
AF Window
Adhesive Sheet
Cabinet (Front) Assy
HELP01 HELP02
PLAY BUTTON ADHESIVE SHEET
PUTTING POSITION
AF Window Holder
Play Button
Adhesive Sheet
HELP03 HELP04
LENS FLEXIBLE PROTECTION SHEET
PUTTING POSITION
Lens Flexible
Protection Sheet
Cabinet (Front) Assy
Bosses
Claw
