Sony DSC-T77 - Front Block Disassembly

2-3
DSC-T77_L2
HELP
HELP
EXPLODED VIEW
HARDWARE LIST
1 Front Block
Main Section
(See Page 2-4)
1-4
(Open)
1-5
(#45)
1-1
(#142/
#143)
1-11
(#144)
1-13
(Claw)
1-12
1-3
(#142/#143)
Front Block
Secure with tapes.
Remove two bosses
while holding the lens cover
on the center.
On assembling, attach the front block while holding the lens cover on the center.
1-9
(Bosses)
1-6
(Set the lens cover
to the center.)
1-10
1-7
(#142/#143)
Microphone
Holder
1-8
(#142/#143)
HELP01
HELP03
HELP04
HELP02
1-2
(#142/
#143)

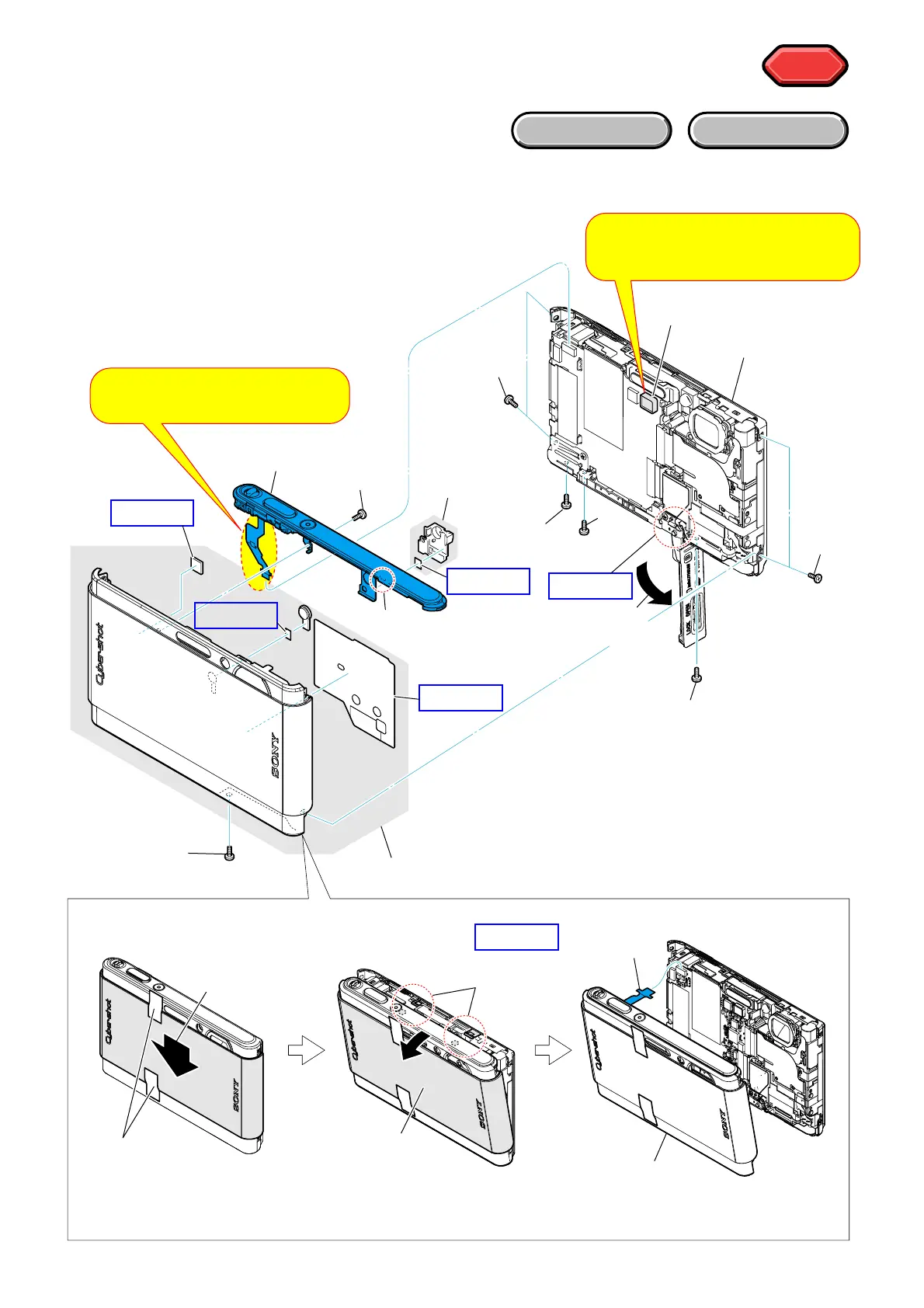

How to diassemble the Front Block
Note: Microphone holder caution
There are some cases the microphone holder
is caught on the front block.
When removing the Front block,
be careful not to damage the flexible board.
1-14
HELP13
HELP14
2-2. DISASSEMBLY
2-2-1. OVERALL SECTION
Follow the disassembly in the numerical order given.
1 Front Block (1-1 to 1-14)
