Sony DSC-T77 - Front Block Assembly Notes

DSC-T77_L2
HELP
Claw A
Control Switch Block
(RL61210)
Front Block
Cabinet Rear Block
Claw A
Spot-welded point
Bend Claw A to the spot-welded point
in the arrow direction.
Bend Claw B to the edge of Cabinet Rear
Block in the arrow direction.
Claw B

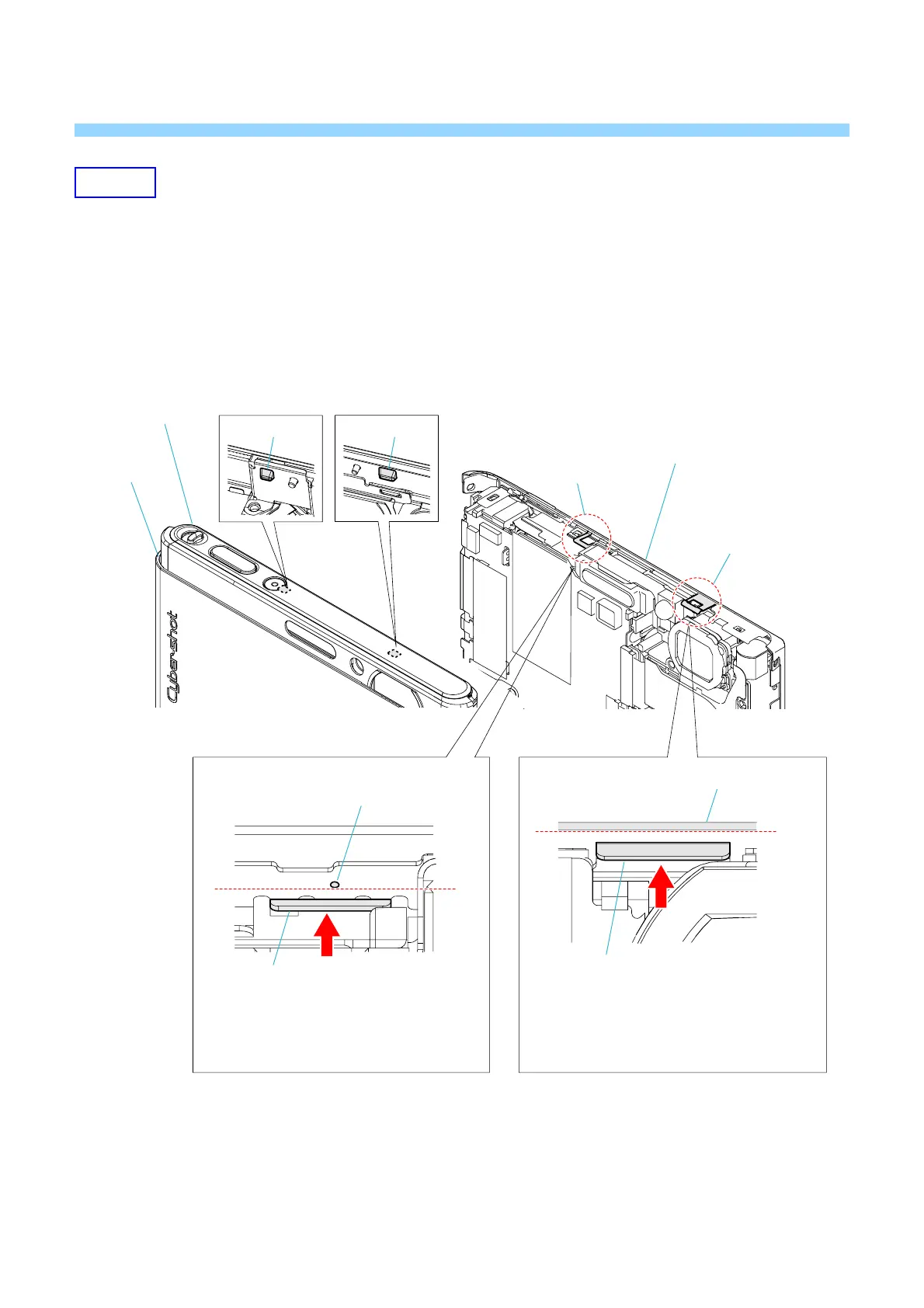

In case of assembling front block, bend two claws on the cabinet rear block as shown below.
(Once front block is removed causes the engagement of two claws on the cabinet rear block and two bosses
on the control switch block (RL61210) becomes loose.)
NOTES ON ASSEMBILING FRONT BLOCK
Boss
Boss
Claw B
Edge of Cabinet Rear Block
HELP14
