Sony DSC-T77 - BT Hinge Shaft Attachment Notes

DSC-T77_L2
HELP

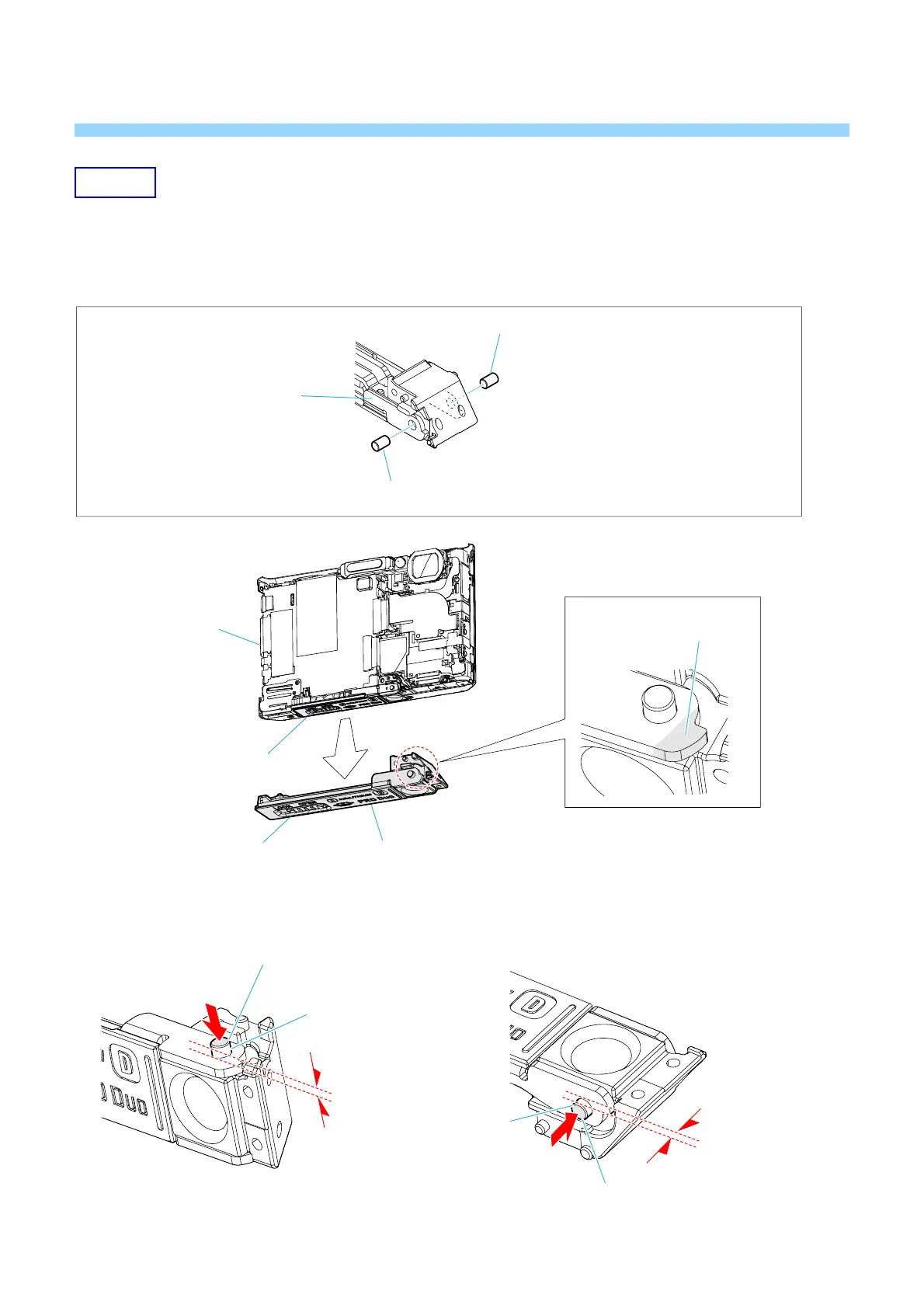

BT Hinge Shaft (210)
BT Hinge Shaft (210)
BT Hinge
Shaft (210)
BT Hinge
Shaft (210)
1.3 mm within
1.3 mm within
BT Lid Assy (210)
Set
BT Lid Assy (210)
Press the flat surface.
(Do not press the other.)
Press the flat surface.
(Do not press the other.)
In the condition BT lid assy (210) has removed from the set surely,
insert BT hinge shaft (210).
BT Lid Assy (210)
Do not touch the tip
of BT hinge plate.
In case of BT hinge shaft (210) is coming out, insert it with care of followings.
NOTES ON ATTACHING BT HINGE SHAFT (210)
HELP13
