Sony DSC-T77 - ST;Rear Section Disassembly

2-5E
DSC-T77_L2

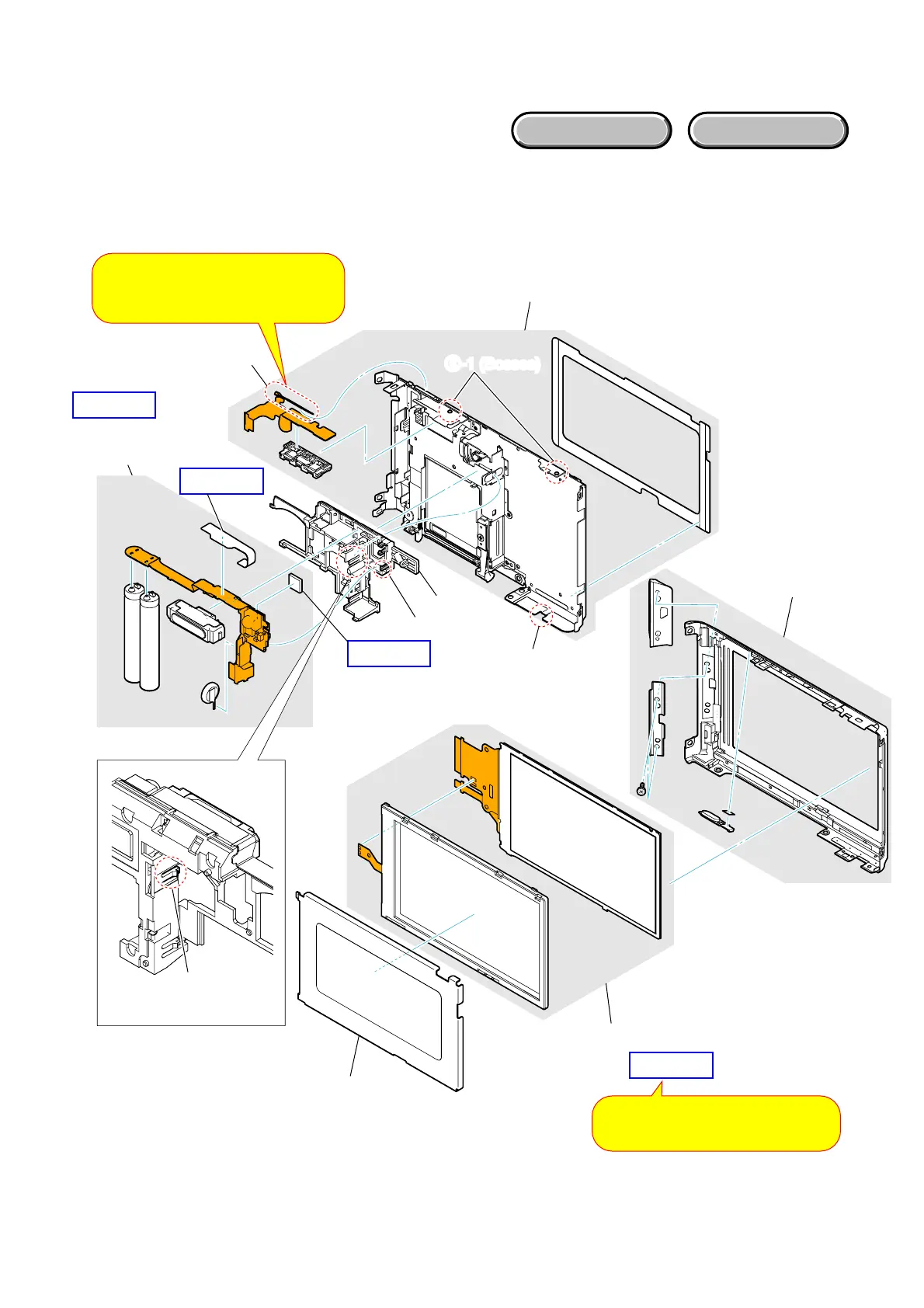

2-2-3. ST/REAR SECTION
Follow the disassembly in the numerical order given.
1 ST-199 Flexible Board (1-1 to 1-3)
2 LCD Block (2-1 to 2-5)
EXPLODED VIEW
HARDWARE LIST
1 ST-199 Flexible
Board
2
LCD Block
1-1 (Claw)
1-2 (Claw)
1-3
Adhesive Part
(BT-044 Flexible Board)
2-1 (Bosses)
2-3
2-2 (Claw)
HELP11
HELP09
HELP10
HELP12
Seen from Rear side
2-4
2-5
Note: BT-044 flexible board caution
Replace with new one in case of peeling
the adhesive portion.
Note: LCD block caution
Be sure to read “HELP11” on assembling.
