5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T77_L2
HARDWARE LIST
DISASSEMBLY
LCD901
#142
C901
C902 BT001
FL001
BH001
ns
114
101
(Note)
102
104
105
106
113
112
111
! : BT001 (LITHIUM RECHARGEABLE BATTERY)
Board on the mount position.
(See page 4-20.)
103
107
108
110
109
Ref. No. Part No. Description Ref. No. Part No. Description
101 A-1557-173-A ST-199 FLEXIBLE BOARD, COMPLETE (Note)
* 102 4-111-398-01 CUSHION, ST
103 4-111-387-01 CUSHION, AF
* 104 4-111-380-01 HOLDER, ST
105 1-877-837-11 BT-044 FLEXIBLE BOARD
106 X-2319-578-1 FRAME ASSY (210)
107 4-111-386-01 CUSHION, LCD
* 108 4-111-384-01 FRAME, BL
109 A-1562-515-A CABINET REAR BLOCK (SERVICE) (SILVER)
109 A-1562-523-A CABINET REAR BLOCK (SERVICE) (BLACK)
109 A-1562-524-A CABINET REAR BLOCK (SERVICE) (BROWN)
109 A-1562-525-A CABINET REAR BLOCK (SERVICE) (PINK)
109 A-1562-526-A CABINET REAR BLOCK (SERVICE) (GREEN)
110 4-111-371-01 BRACKET, STRAP (GREEN/SILVER)
110 4-111-371-11 BRACKET, STRAP (BLACK)
110 4-111-371-21 BRACKET, STRAP (BROWN)
110 4-111-371-31 BRACKET, STRAP (PINK)
111 4-111-373-01 PLATE (G), REAR
* 112 4-111-399-01 SHEET, PLAY BUTTON ADHESIVE
113 4-111-372-01 BUTTON, PLAY (SILVER)
113 4-111-372-11 BUTTON, PLAY (BLACK)
113 4-111-372-21 BUTTON, PLAY (BROWN)
113 4-111-372-31 BUTTON, PLAY (PINK)
113 4-111-372-41 BUTTON, PLAY (GREEN)
114 1-480-913-11 BLOCK, LIGHT GUIDE PLATE (3.0)
0 BH001 1-780-651-11 TERMINAL BOARD, BATTERY
0 BT001 1-756-813-11 LITHIUM RECHARGEABLE BATTERY
0*C901 1-114-874-11 ELECT 28uF 99% 315V
0*C902 1-114-873-11 ELECT 21.9uF 99% 315V
0 FL001 1-480-964-11 FLASH UNIT (FL61210)
LCD901 A-1551-533-A FTS BLOCK ASSY (30SHGU08)
#142 4-111-392-01 HEAD (NEW TORASUTA) M1.4 (Silver)

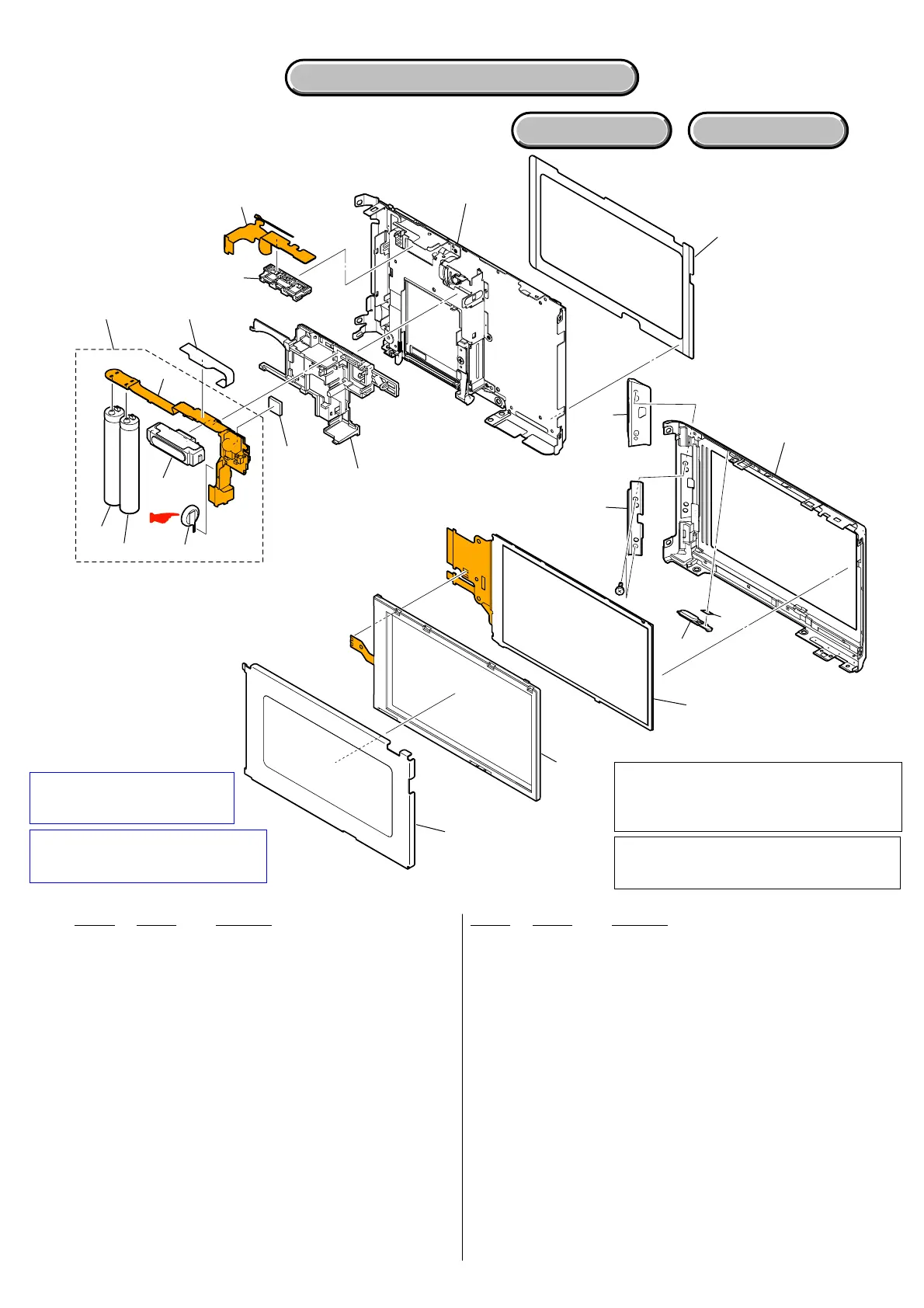

5-1-3. ST/REAR SECTION
ns: not supplied
• Refer to page 5-1 for mark 0.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れ
があります。電池を交換する場合には必ず同じ
型名の電池又は同等品と交換してください。
Note: Be sure to read “HELP12”
when you install the
ST-199 flexible board.
ノート: ST-199フレキシブル基板取り
付け時は，“HELP12”を必ずお
読みください。
