Sony DSC-T77 - Main Section Disassembly

2-4
DSC-T77_L2
EXPLODED VIEW
HARDWARE LIST
SY-207
A
B
C
E
1-4
1-5
2-3
2-4
2-5
2-7
2-12
(Cla
(Cla
w)
w)
A
B
C
A
B
C
D
E
E
D
1 Lens Block
2
SY-207 Board
3
BT Lid Base
ST/Rear Section
(See Page 2-5)
2-1
(Claws)
2-8
(#45)
2-10
2-9
(Claw)
2-2
ST-199 Flexible
Board
1-1
(#142)
1-3
(Peel off the flexible cable.)
1-6
1-2
1-4
3-3
(Claws)
3-7
(Claw)
3-2
3-6
3-4
(Claw)
3-5
HELP05
HELP07
HELP15
HELP05
HELP06
1-5
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between the two points
with the short jig about 10 seconds.
To avoid the spark with the metal plate,
wrap the short jig with the insulation tape.
On assembling, note that do not
forget to attach the flexible cable.
Be sure not to lose MS light guide.
R:1 kΩ/1 W
(Part code: 1-215-869-11)
ST-199 Flexible
Board
2-3
2-4
2-5
2-7
2-6
HELP08
2-11
(Claw)
2-12
(Claw)
3-1

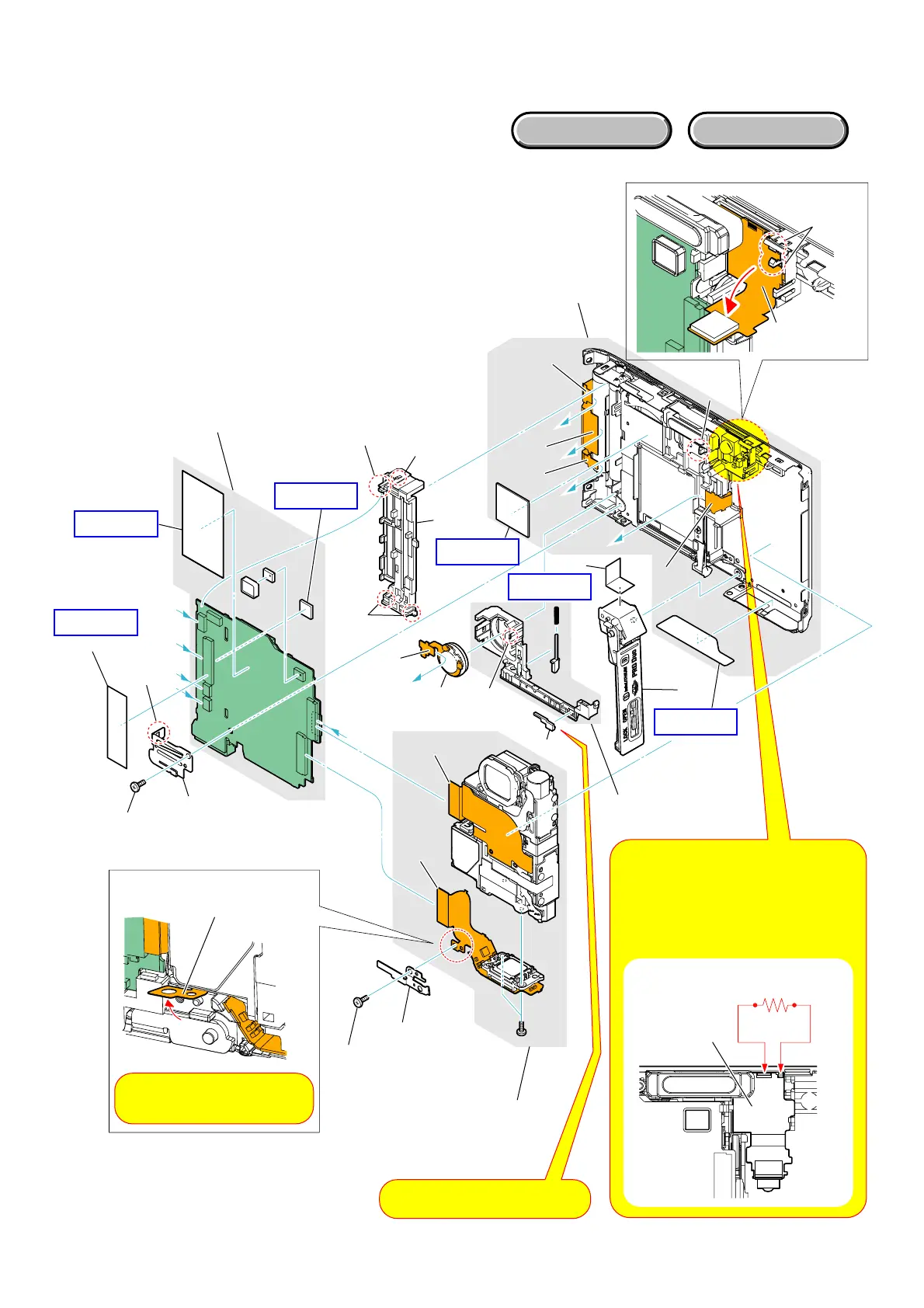

2-2-2. MAIN SECTION
Follow the disassembly in the numerical order given.
1 Lens Block (1-1 to 1-6)
2 SY-207 Board (2-1 to 2-12)
3 BT Lid Base ( 3-1 to 3-7)
