Sony DSC-T77 - Page 47

5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T77_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
51 A-1557-174-A SY-207 BOARD, COMPLETE (SERVICE)
* 52 4-111-385-01 PLATE, MULTI FIXED
* 53 4-111-396-01 SHEET (A), INSULATING
54 4-111-390-01 SHEET, SY INSULATING
55 4-111-391-01 HOLDER, MICROPHONE
* 56 4-111-400-01 CUSHION, FRONT
* 57 4-111-379-01 HOLDER, SY
* 58 4-111-401-01 CUSHION, REAR
59 4-111-381-01 BASE, BT LID (SILVER)
59 4-111-381-11 BASE, BT LID (BLACK)
59 4-111-381-21 BASE, BT LID (BROWN)
59 4-111-381-31 BASE, BT LID (PINK)
59 4-111-381-41 BASE, BT LID (GREEN)
60 4-111-374-01 SPRING, BT LID (PUSH OUT)
61 4-111-375-01 LID (PUSH OUT LOD), BT
62 4-111-382-01 LIGHT, MS GUIDE,
* 63 4-111-388-01 SHEET, CD LIGHT INTERCEPTION
64 X-2319-579-1 LID ASSY (SILVER) (210), BT (SILVER)
64 X-2319-580-1 LID ASSY (BLACK) (210), BT (BLACK)
64 X-2319-581-1 LID ASSY (BROWN) (210), BT (BROWN)
64 X-2319-582-1 LID ASSY (PINK) (210), BT (PINK)
64 X-2319-583-1 LID ASSY (GREEN), BT (GREEN)
65 A-1553-310-A LSV-1300A (SERVICE USE)
66 A-1558-183-A CCD BLOCK ASSY (SERVICE) (including IC001
(CCD imager) and CD-743 flexible
complete board.) (Note 1)
* 67 4-111-383-01 PLATE, BT LID CLICK
* 68 4-120-996-01 SHEET (K), RADIATION
MIC601 1-542-756-21 MICROPHONE (Note 2)
SP901 1-826-403-81 LOUDSPEAKER (1.0CM)
#30 3-086-156-11 SCREW B1.2 (White)
#45 2-587-151-01 SCREW (M1.4), NEW, TRUSTAR, P2 (Silver)
#142 4-111-392-01 HEAD (NEW TORASUTA) M1.4 (Silver)
SY-207
A
B
C
A
B
C
D
E
E
D
#45
#142
#30
ST/REAR section
(See page 5-4)
SP901
66
67
52
51
(including IC001(CCD imager)
and CD-743 flexible
complete board.)
(Note 1)
53
54
MIC601
(Note 2)
57
58
59
62
60
68
55
56
61
64
63
65
ns

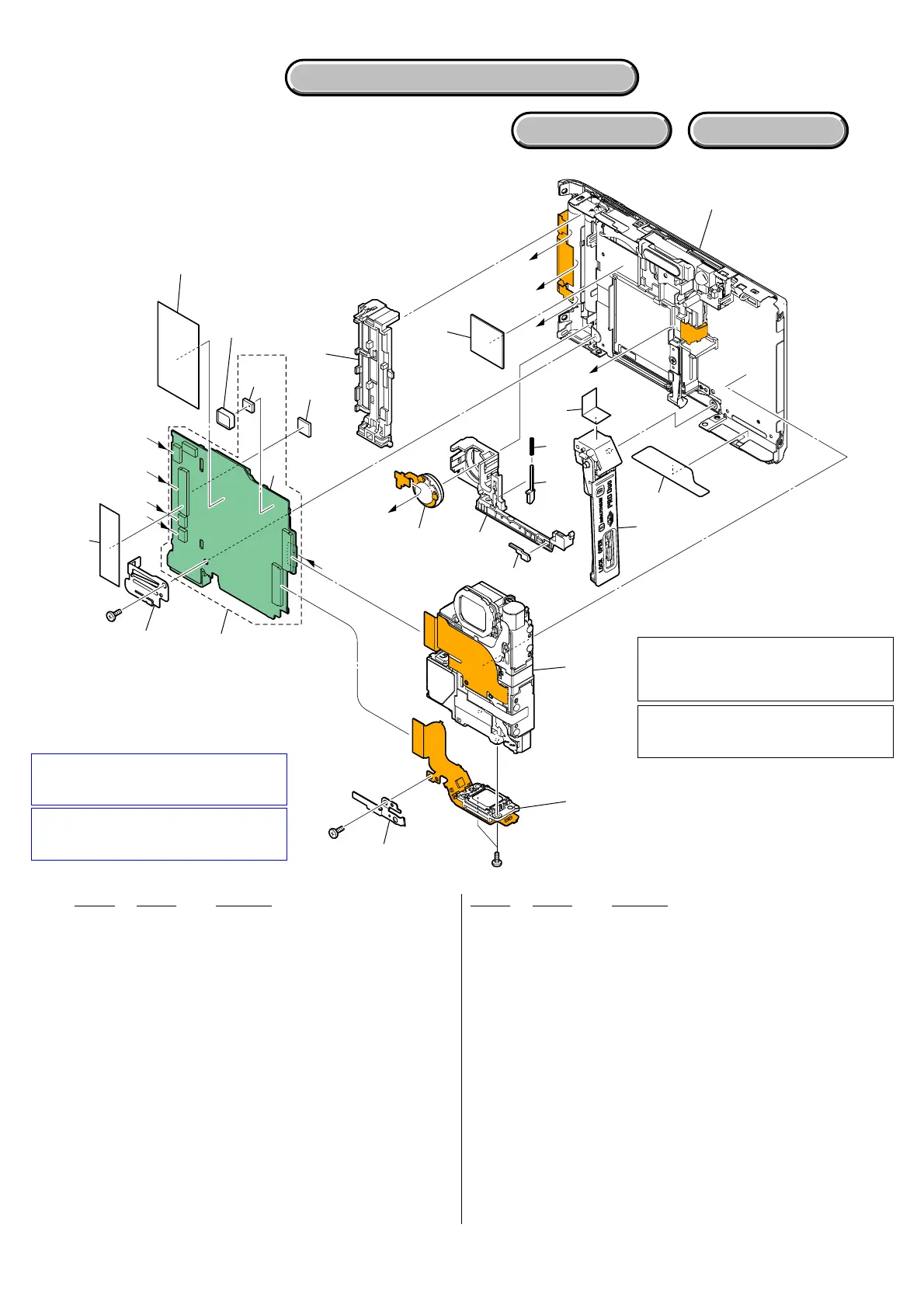

5-1-2. MAIN SECTION
ns: not supplied
ノート1: イメージャの交換時は4-3ページ
のイメージャ交換時の注意を
必ずお読みください。
Note 1: Be sure to read “Precuations for
Replacement of Imager” on page
4-2 when changing the imager.
ノート2: マイクの交換時は、部品内に熱
風が入らないように穴をポリイミ
ドテープ等で塞いでください。
Note 2: On repairing microphone, cover the
hole with polyimide tapes or the like
so that the hot air does not go into
the parts.
