Sony DSC-T77 - Page 46

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T77_L2
DISASSEMBLY
HARDWARE LIST

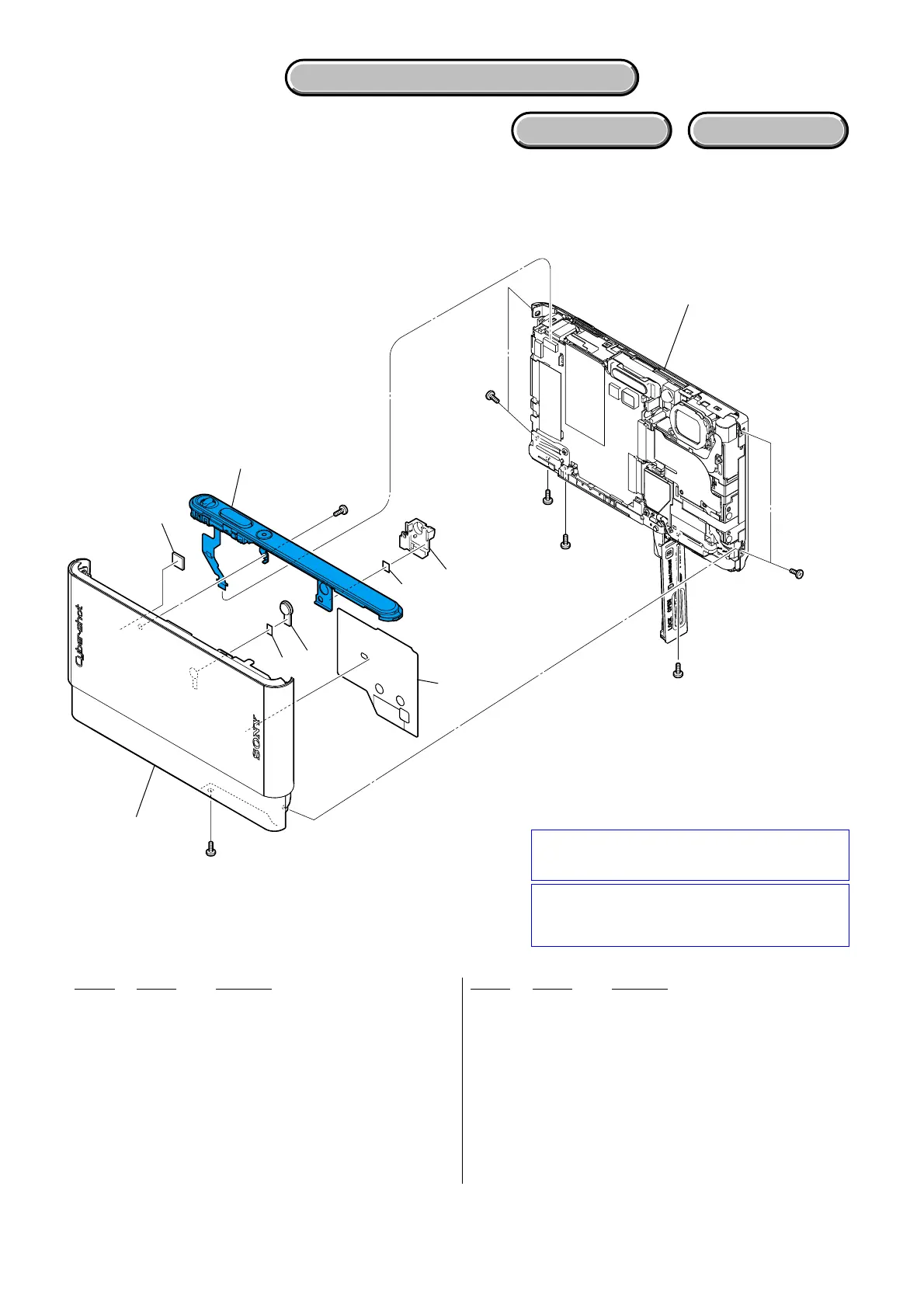

5-1-1. OVERALL SECTION
5-1. EXPLODED VIEWS
Ref. No. Part No. Description Ref. No. Part No. Description
1 X-2319-561-1 CABINET (FRONT) ASSY (SILVER)
1 X-2319-562-1 CABINET (FRONT) ASSY (BLACK)
1 X-2319-563-1 CABINET (FRONT) ASSY (BROWN)
1 X-2319-564-1 CABINET (FRONT) ASSY (PINK)
1 X-2319-565-1 CABINET (FRONT) ASSY (GREEN)
* 2 4-111-400-01 CUSHION, FRONT
3 1-480-871-11 SWITCH BLOCK, CONTROL (RL61210)
(GREEN/SILVER)
3 1-480-871-22 SWITCH BLOCK, CONTROL (RL61210) (BLACK)
3 1-480-871-32 SWITCH BLOCK, CONTROL
(RL61210) (BROWN)
3 1-480-871-42 SWITCH BLOCK, CONTROL (RL61210) (PINK)
4 4-111-393-01 SHEET, AF WINDOW ADHESIVE
5 4-111-370-01 WINDOW, AF
* 6 4-111-399-01 SHEET, PLAY BUTTON ADHESIVE
7 4-111-394-01 HOLDER, AF WINDOW
8 4-111-395-01 SHEET, LENS FLEXIBLE PROTECTION
#45 2-587-151-01 SCREW (M1.4), NEW, TRUSTAR, P2 (Silver)
#142 4-111-392-01 HEAD (NEW TORASUTA) M1.4 (Silver) (Note)
#143 4-111-392-11 HEAD (NEW TORASUTA) M1.4 (Black) (Note)
#144 4-111-392-21 HEAD (NEW TORASUTA) M1.4 (Silver)
#144
1
2
4
5
3
6
7
8
Main section
(See page 5-3)
#45
#142
#143
(Note)
#142
#143
(Note
)
#142
#143
(Note)
#142
#143
(Note)
#142
#143
(Note)
ノート: キャビネット色とネジの組合せについては、
5 - 1 ページの“THE COMBINATION OF
CABINET’S COLOR AND SCREW”を参照して
ください。
Note : Please refer to “THE COMBINATION OF
CABINET’S COLOR AND SCREW” on page 5-1
about the combination cabinet’s color and screw.
