Sony DSC-T77 - Page 20

DSC-T77_L2
HELP

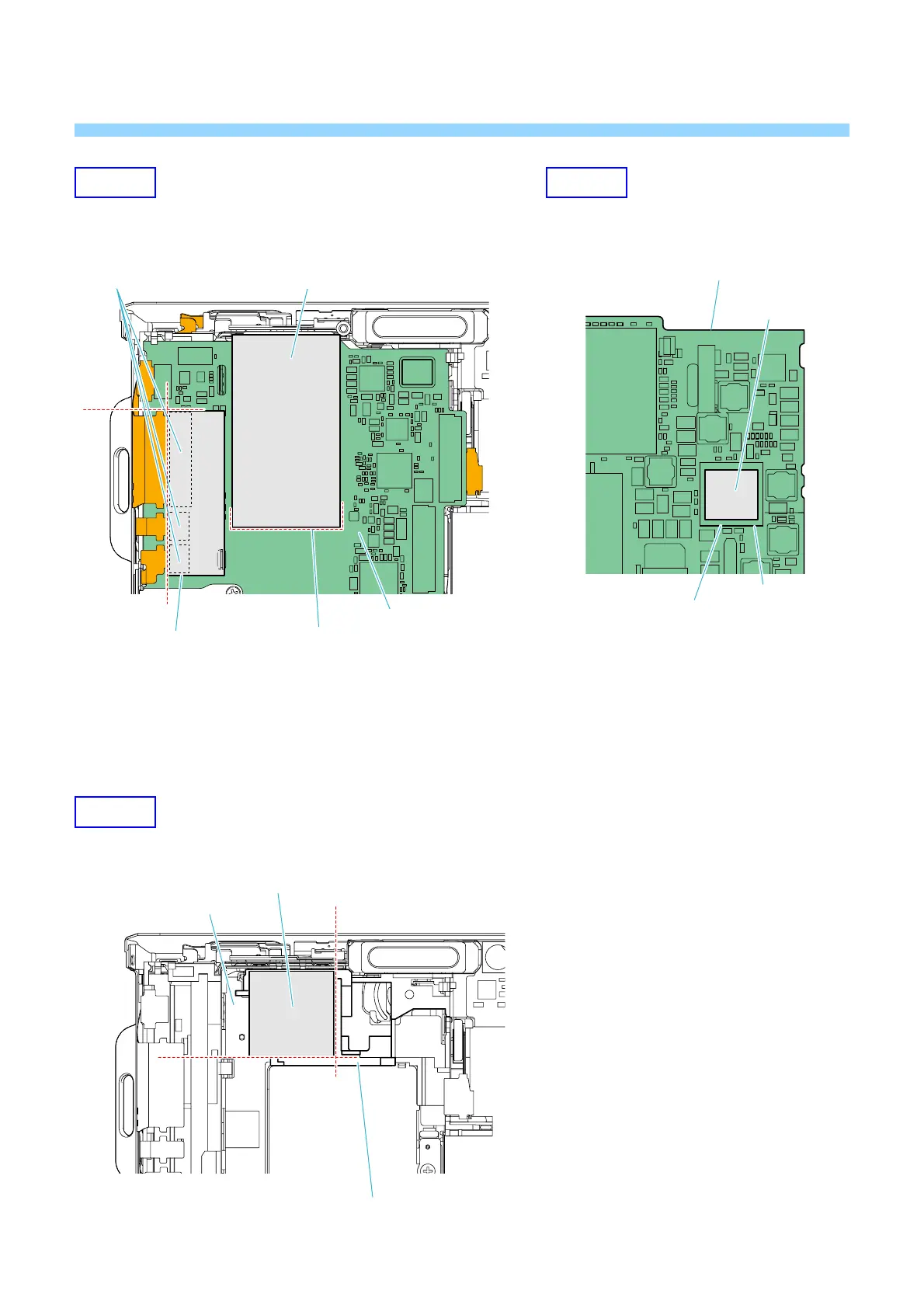

HELP05
SY-207SY-207
SY Insulating Sheet
Connectors
Printed Line
SY-207 Board
Insulating Sheet (A)
(Attach Insulating Sheet (A)
must be covered connectors.)
SY INSULATING SHEET, INSULATING
SHEET (A) PUTTING POSITION
FRONT CUSHION
PUTTING POSITION
SY-207SY-207
IC
Do not attach it out of
the IC outline.
SY-207 Board
Front Cushion
IC001
HELP06
ST Holder
Rear Cushion
Frame Assy (210)
REAR CUSHION PUTTING POSITION
HELP07
