DSC-T77_L2
HELP

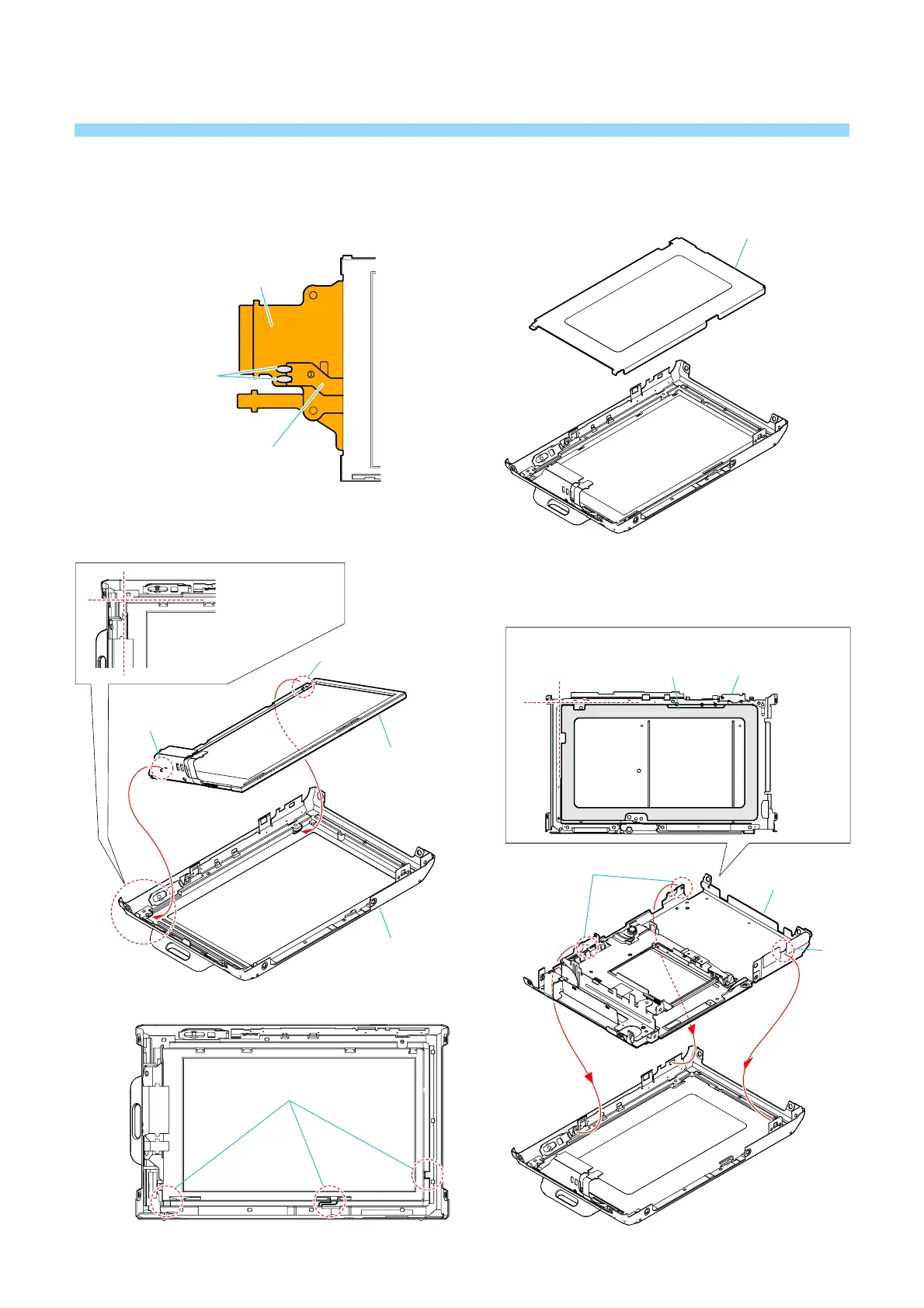

Soldering Points
LCD Block
BL Frame
3
Solder two points.
Fit two claws by pushing them.
Fit other claws by pressing with finger.
Place BL Frame.
Attach LCD cushion to main frame (210).
Fit Main Frame Block by fitting three bosses.
5
6
4
Claw
Claw
Rear Block
Claws
Main Frame
Block
Main Frame BlockLCD cushion
Bosses
Boss
Flexible Board of
Light Guide Plate (3.0) Block
Flexible Board of
FTS Block Assy (30SHGU08)
Adjust to the upper
left standard.
Adjust to the upper left standard.
