Sony DSRM-E1 - Appendix; Circuit Boards Location; Removal of TU Cabinet (R) Assembly; 2 Disassembly

2-1E
Note: Follow the disassembly procedure in the numerical order given.

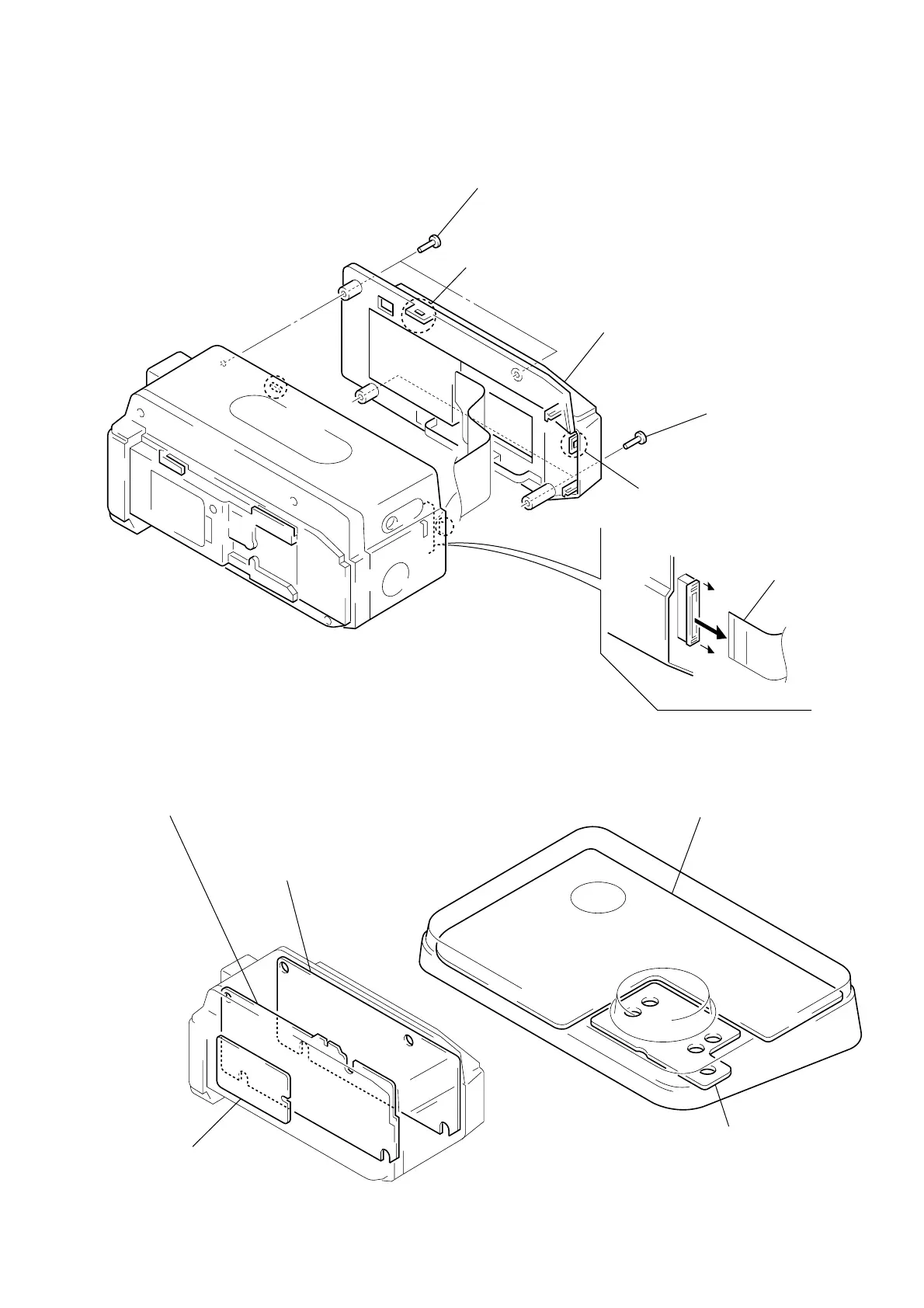

2-1. REMOVAL OF TU CABINET (R) ASSEMBLY
2-2. CIRCUIT BOARDS LOCATION
SECTION 2
DISASSEMBLY
DSRM-E1/E1P
4 Claw
3 Claw
1 Two screws
(2
× 6)
2 Two screws
(2
× 6)
5 TU cabinet (R) assembly
6 FP-246 flexible board
CM-58
Board
AV-40/40P
Board
CB-64/64P
Board
LI-66
Board
CB-64 (DSRM-E1)
CB-64P (DSRM-E1P)
(FRONT MICOM/EDIT MICOM)
AV-40 (DSRM-E1)
AV-40P (DSRM-E1P)
IN/OUT, AUDIO/VIDEO, OSD/FONT ROM,
Y/CHROMA SEP
CM-58
(CONTROLLER/LED DRIVE)
LI-66
(BACK UP LITHIUM)
JG-36
(JOG SHUTTLE)
(
)
